Commend GE 800 - Setting the Numbers with CCT; Configuration of IP-Network Settings

GE 800 5. CCT-Configuration
1.1/1209 21

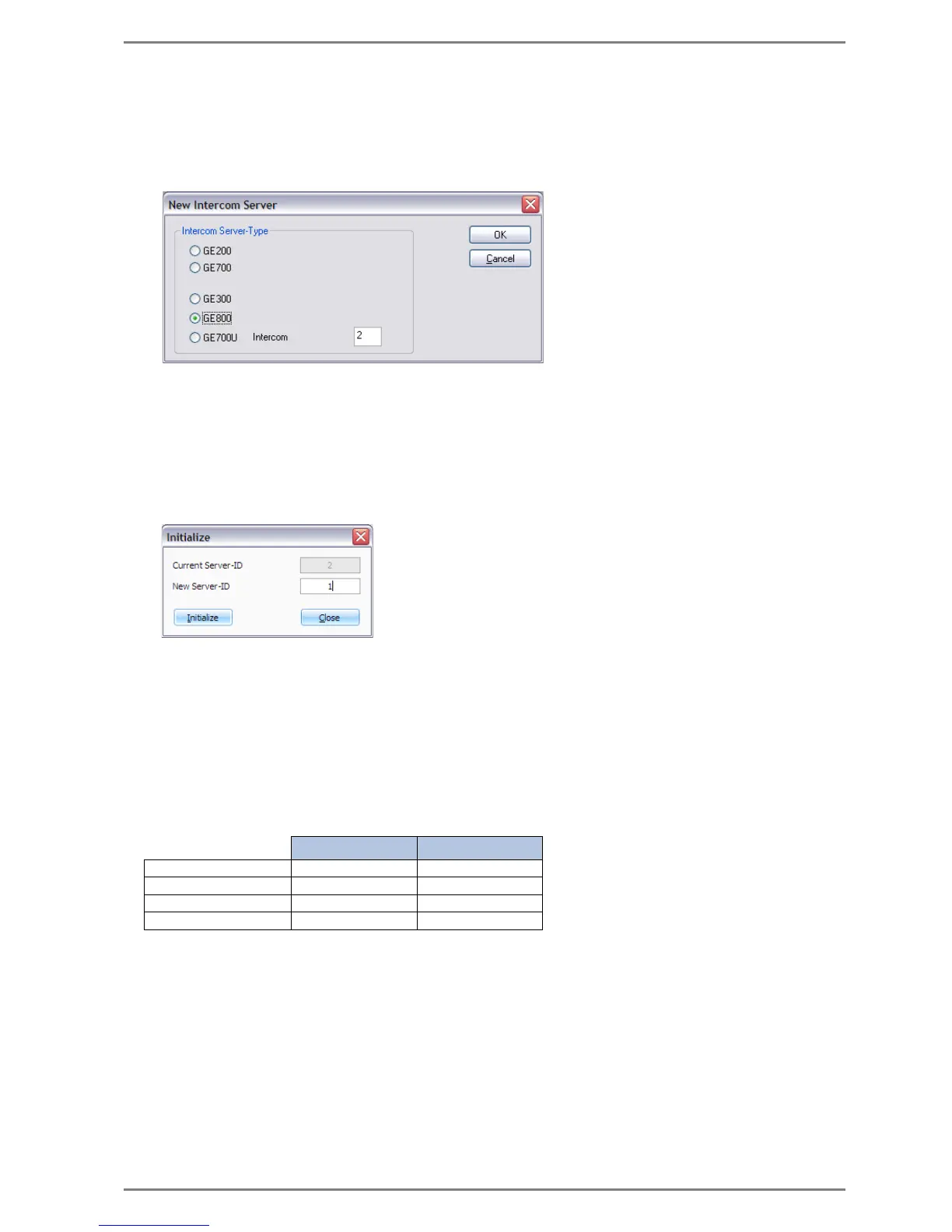

Setting the numbers with CCT
1. Intercom Server > Cards
2. Click in the right hand side area with the right mouse button and select add Intercom Server. At
Intercom Server-Type select the option GE 800, at Server-ID the desired number is enterd and
accepted with “OK”.
3. Repeat step 2 and enter the next number in the field Server-ID. Repeat this step for all further
housings. At Description a text for each housing can be entered.
4. Menu Intercom Server > Initialize
5. Connect one housing after the other to the PC and select Initialize. In the field Current Server-ID
the current Server-ID is displayed. In the field New Server-ID the desired number is entered and
taken over with Initialize.
As soon as the number is transmitted it also appears in the field Server-ID.
6.
Receive the configuration of the Intercom Server (Menu Intercom Server > Receive , in the area
Reached all Intercom Servers must be visible). Now all cards are correctly recognised and the
Intercom Server can be configured as usual. For configuration the PC can be connected to any
housing; all housings are configured like a single housing.
Configuration of IP-Network Settings
Auto-Configuration of the Network
 When a GE 800 is initialized IP-addresses are automatically generated for the G8-GEP and G8-NET
:
Configuration CCT:
 IP - Settings > Tab Common
 Card IP Address: In this field the desired IP-address for the Server is configured.
 Subnet mask: In this field the desired subnet mask for the Server is configured (e.g.:. 255.255.0.0
for Auto-configuration of the network).
 Router IP address: In this field the IP-address of the router (also "Gateway") is configured, via
which the Intercom Servers communicate.
 A VLAN - ID is only required when the GE 800 is in a virtual network. The ID is entered as decimal
value between 1 and 1023.
G8-GEP G8-NET
GE 800 - Server-ID No. 1 10.10.1.1 10.10.1.241
GE 800 - Server-ID No. 2 10.10.2.1 10.10.2.241
GE 800 - Server-ID No. 3 10.10.3.1 10.10.3.241
... ... ...
