LED-Status Indication GE 800
52 1.1/1209
LED-Status Indication
Status Processor Card:
LED blinks in rhythm of one second: Intercom Server is working correctly.
LED blinks fast: during initializing.
LED blinks slowly: during download of Server Software.
LED is permanently off: no power, warm start or hardware fault.
LED is permanently on: during reset or hardware fault.
LED blinks: in rhythm “definition error” ( ): at least one wrong or missing plug-in card.

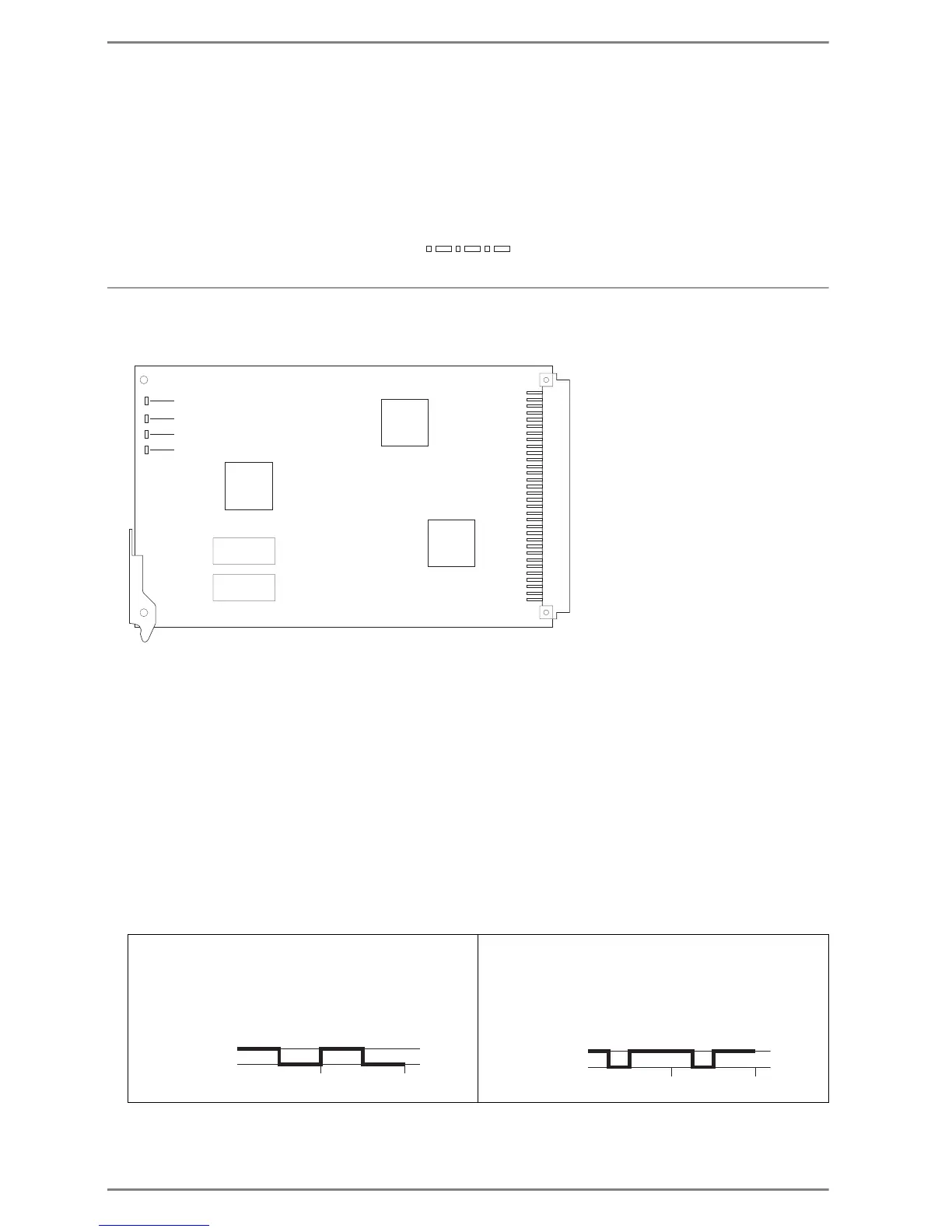

Networking Card G8-NET
Fully digital networking card with 2 ethernet ports and one digital data ring, incl. connection cable.
LED-Status Indication
Status RUN:
LED blinks in rhythm of one second: the card is working correctly.
LED is permanently off: no power, warm start or hardware fault.
LED is permanently on: waiting for connection to the main processor (during initialising) or reset).
Status LAN:
LED is permanently on: connection to network and to all defined Intercom Servers is ok (or no Inter-
com Servers defined)
LED is permanently off: no connection to network
LED blinks: data error:
The time interval of one second is split into equal parts for connection to the network and for all de-
fined Intercom Servers.
Example: 1 connected Intercom Server defined, this Intercom Server
cannot be reached:
Example: 3 connected centrals defined, the 1st defined central can-
not be reached:
