Commend GE 800 - Networking Card G8-NET; Status RUN; Status LAN

GE 800 LED-Status Indication
1.1/1209 51
LED-Status Indication

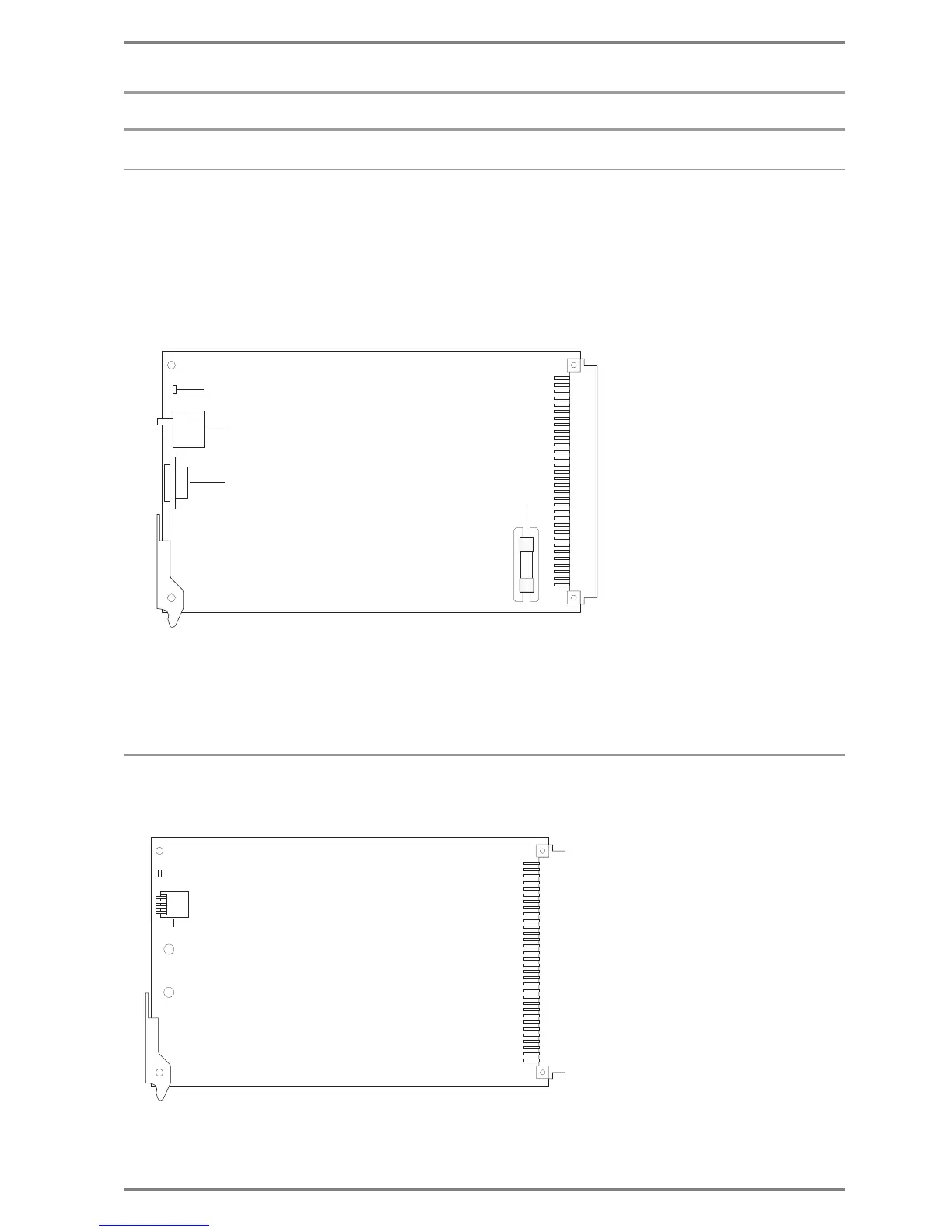

Power Supply Card G8-GEN
Power Supply Card for GE 800 with:
 Programming socket
 2 relay outputs
 2 inputs for floating contacts
 Audio input
 on/off switch
LED-Status Indication
 LED is ON: system power on.
 LED is permanently off: no power.
Processor Card G8-GEP
Processor Card with Blackfin DSP and Flash for basic operating system and features.
Indication power supply
Mains switch Intercom Server
RS232 (for configuration)
Fuse 3.15A
(slow blow)
ON
OFF
1
2
3
4
Status LED
DIP-switch
