■ You then need to follow one of the following procedures that meets the powering requirements of this
installaon.
● Wire a Hybrid Fiber Splice Box for 4-Wire Power with Limited Power Source
● Wire a Hybrid Fiber Splice Box for 2-Wire Power without Limited Power Source
Wire the Hybrid Fiber Splice Box
Do the following to assemble and wire the Hybrid Fiber Splice Box.

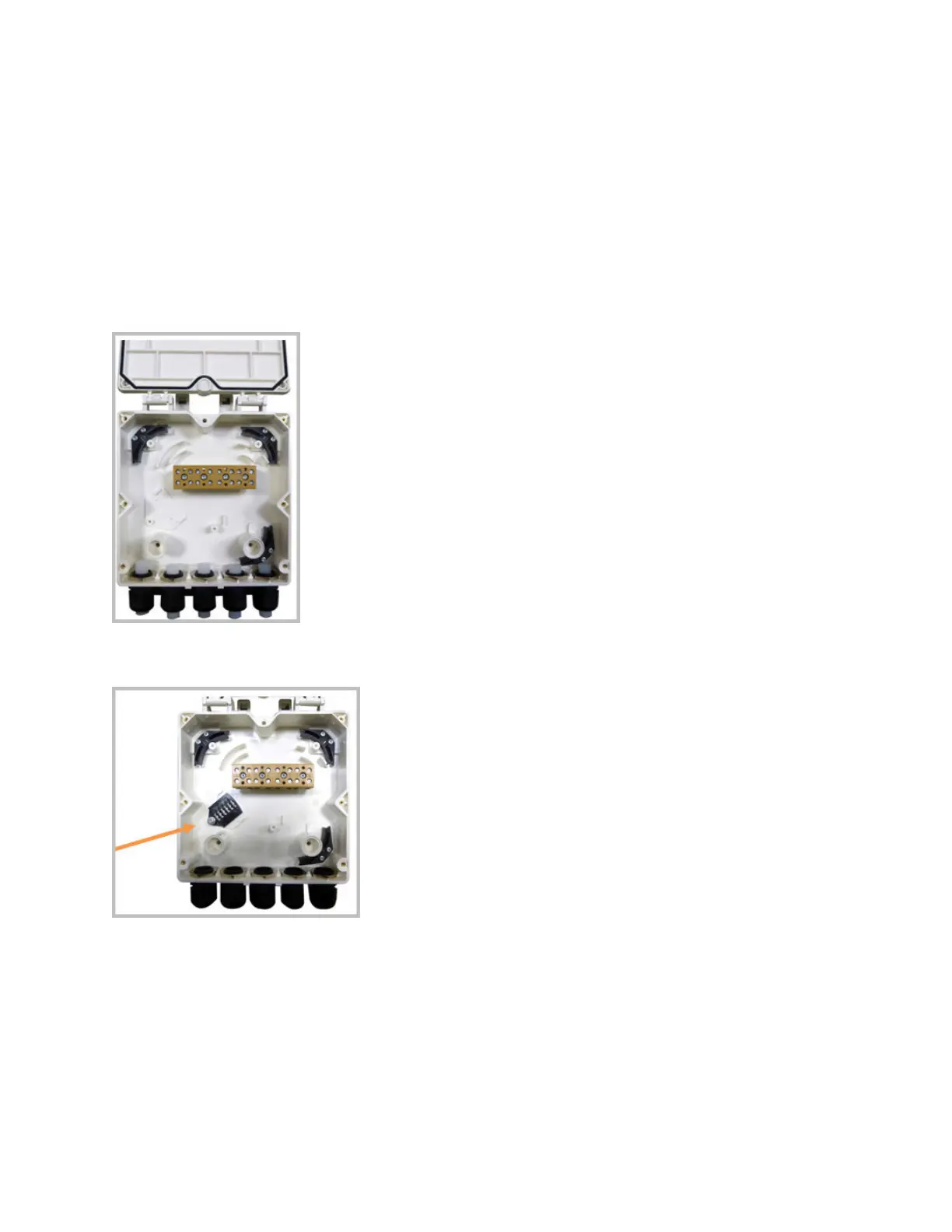

1. Open the Hybrid Fiber Splice Box and remove the installaon kit that is inside.
2. Using the parts from the Hybrid Fiber Splice Box, insert the Splice Holder and fasten it using a PTK 30x6
screw and one M4 washer.
3. From the UAP2 Hybrid Fiber Splice Box Kit, insert Fiber Patch Cord in one of the cable glands indicated in
the graphic.
