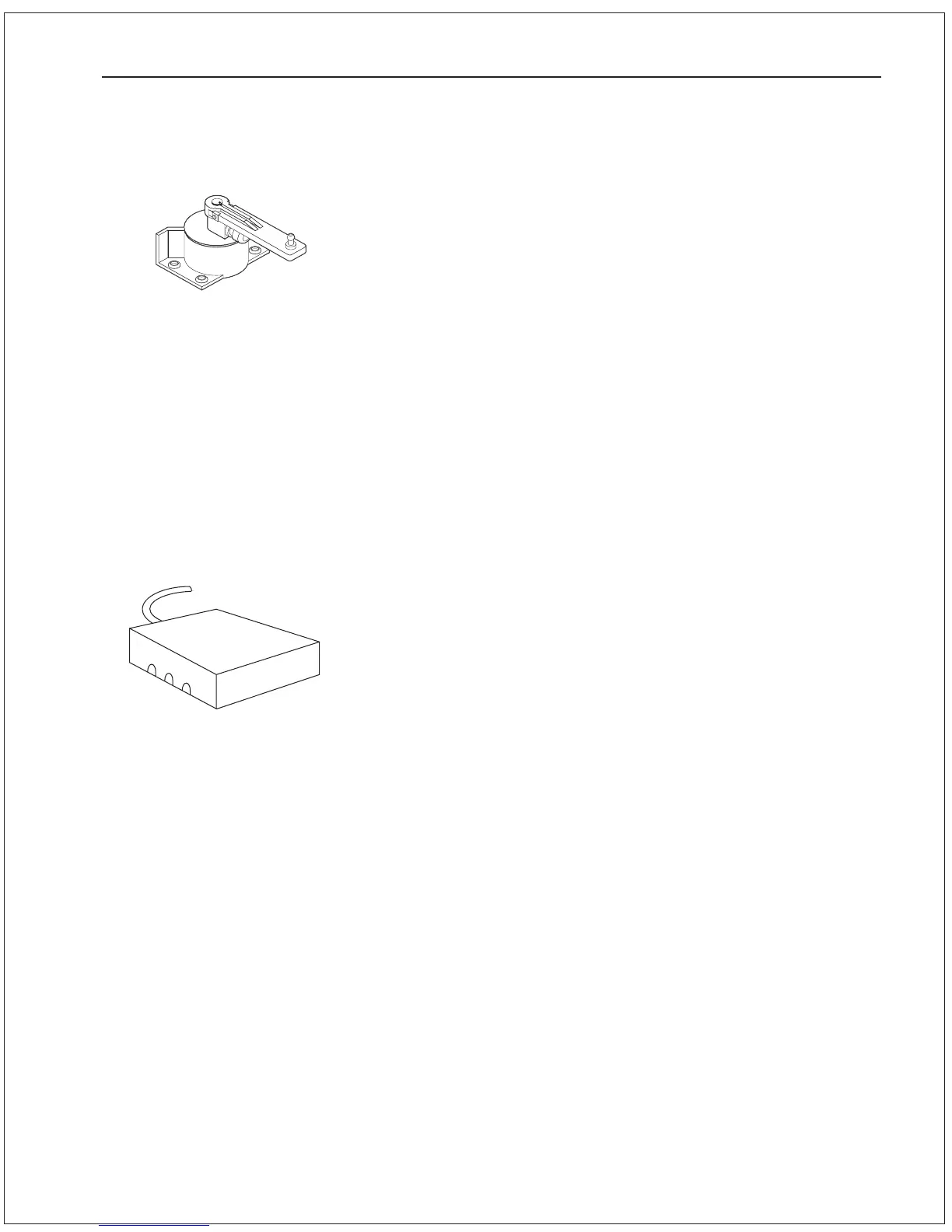

ComNav 1101 Autopilot SYSTEM OVERVIEW 3 - 7
Distribution Box
Part # 20010001
Medium Duty Rudder Follower
Part # 20330008
Rudder Follower
The 1101 Autopilot is supplied with a ComNav Medium Duty Rudder
Follower.
The Rudder Follower is used to transmit the position of the vessel’s
rudder to the SPU. It should be connected to whichever part of the
steering system the Autopilot controls. Normally, this is the vessel’s
rudder, however, if the vessel has 2-stage steering where the
Autopilot drives a control or servo ram, the Rudder Follower should
be mounted to the servo ram rather than the rudder.
Some 1101 Installations may use a ComNav Linear Feedback (Part
# 81957) or a Heavy Duty Rudder Follower (Part # 83634). These
units come with installation instructions.
Distribution Box
The Distribution Box provides a neat and tidy way to wire the SPU to
the power supply, output solenoids, navigation computer, Rudder
Angle Indicators (RAls) and other accessories.
