ComNav 1101 Autopilot SYSTEM OVERVIEW 3 - 9

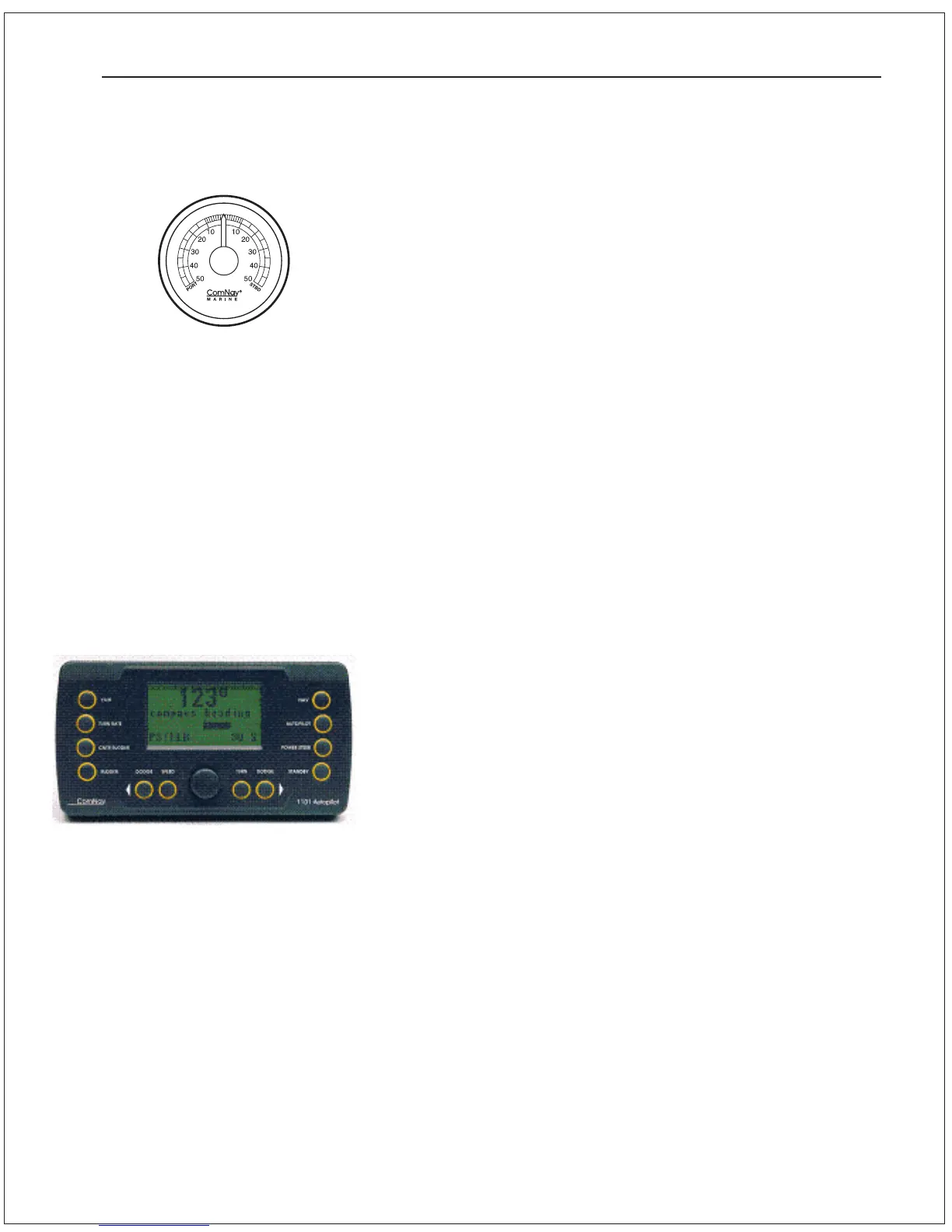

Rudder Angle Indicator (RAI) 3”
The ComNav RAI is a brightly backlit 3 inch (76mm) gauge that
displays the actual position of the vessel’s rudder.
The RAI is flush mounted, encased in high impact resistant
polycarbonate plastic with a water resistant front face, and
requires a lighting voltage supply of 12, 24 or 32VDC.
An optional Bezel Kit (Part # 30360004), Wheelhouse Case (Part #
20360017) and Watertight Case (Part # 20360016) are available.
Rudder Angle Indicator
Part # 20360014
Secondary Control Heads
Means are provided for the 1101 Autopilot to accept an Auxiliary
Station. This may be either a second 1101 Control Head functioning
as a remote unit, or a ComNav Handheld Remote. By adding an
optional Remote Expander, the Autopilot can support up to 4
Handheld Remotes, or three 1101 Auxiliary Stations. Combinations
of Handheld Remotes and 1101 Control Heads are possible.
Auxiliary Station
The 1101 Auxiliary Station is identical to the 1101 Control Head ex-
cept that its cable is plugged into the auxiliary connector on the SPU.
This reconfigures the Unit as an Auxiliary Station. It has all of the
functions of a Control Head except that it cannot turn the system
power on or off and therefore it cannot be used to do a full reset or
initiate a Dockside Setup.
The Auxiliary Station comes as a kit (Part # 10050001).
1101 Auxiliary Station
Control Head
Part # 20050002
(a component of Part #
10050001)
