ComNav 1101 Autopilot INSTALLATION 4 - 17
If the length of cable supplied is too short to reach all the way to the
Distribution Box, obtain a terminal strip and sufficient additional
cable from your dealer. Mount the terminal strip in a convenient DRY
location. Connect the Rudder Follower cable to the terminal strip and
then add the additional length of cable. Strip the wires, and attach
them to the terminals in the Distribution Box as shown in the table
below:
Colour Dist. Box Terminal Signal
White 1 4 Rudder Power (+5V)
Green 15 Rudder POS’N
Black 1 6 Rudder com
Shield 2 Shield
Table 3—Rudder Follower Cable Connections

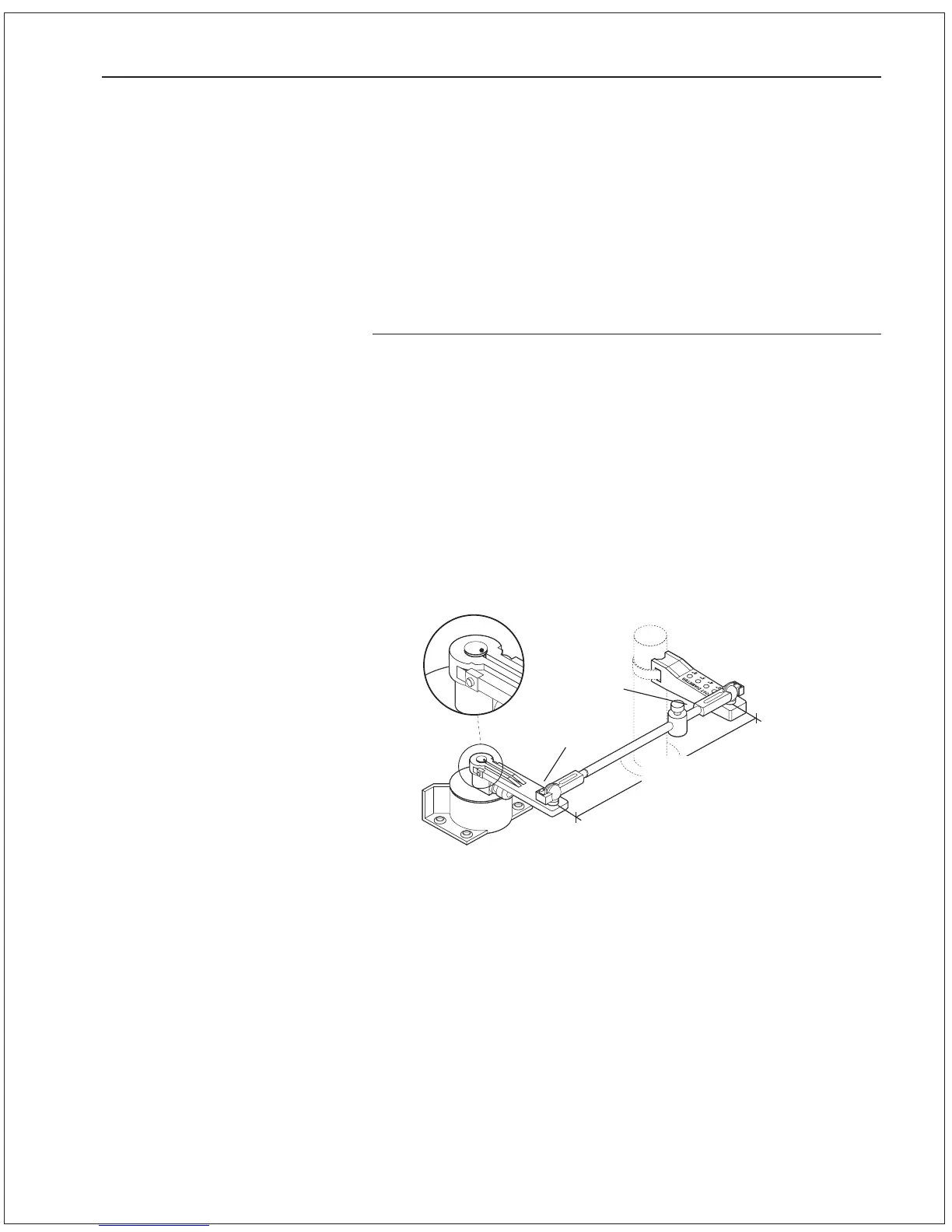

Figure 10—Rudder Follower Linkage Detail
Other Rudder Followers
The ComNav Heavy Duty Rudder Follower and the ComNav Linear
Feedback are also compatible with the 1101 Autopilot. If you have
purchased one of these devices, follow the installation instructions
supplied with the unit.
Notch
Alignment
90
o
90
o
24” MAX
To Next Page
