A-2

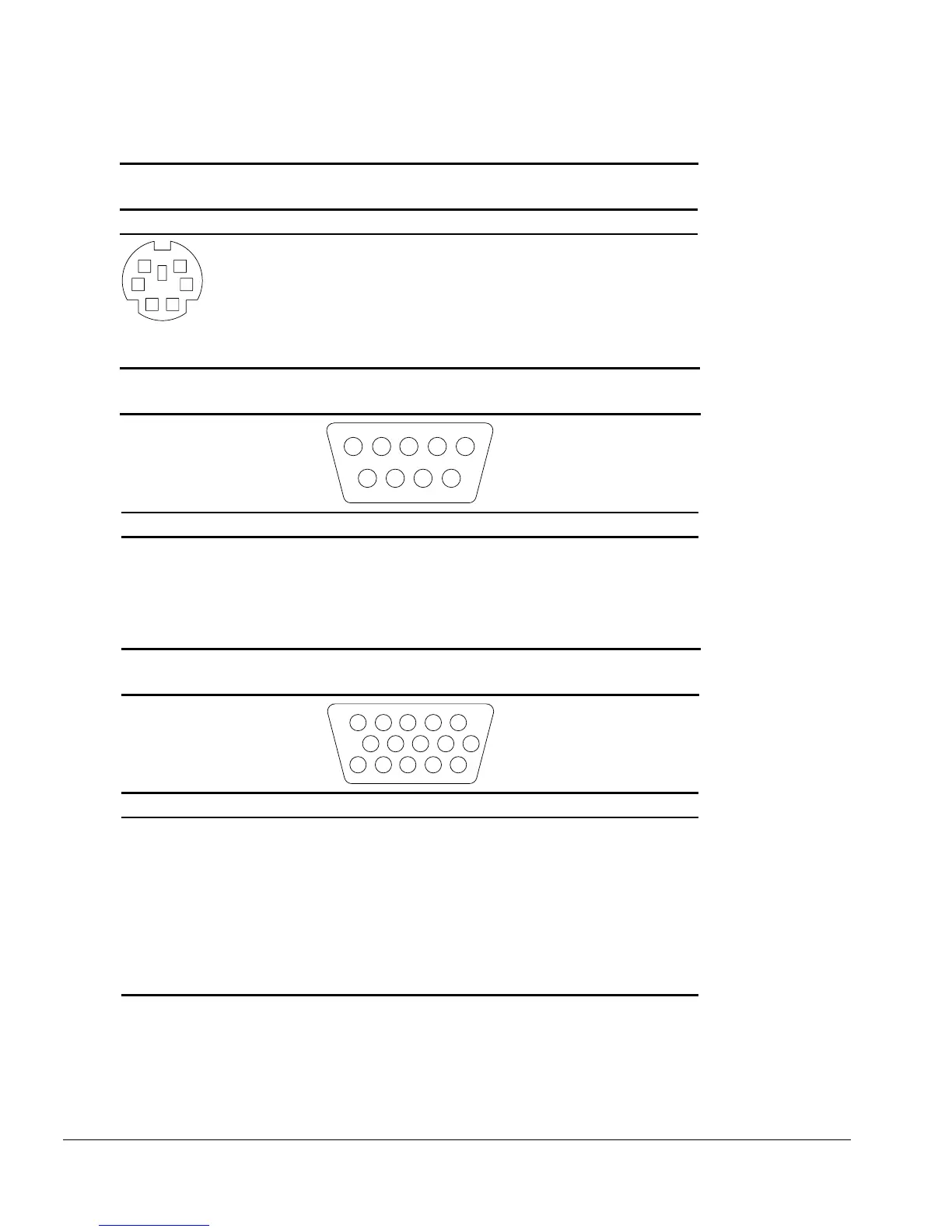

Connector Pin Assignments
Table A-4
External Keyboard/Mouse Connector
Connector Pin Signal
KEY
65
43
2
1
1
2
3
4
5
6
Keyboard/Mouse DATA
Keyboard/Mouse DATA
Ground
+5 VDC
Keyboard/Mouse CLK
Keyboard/Mouse CLK
Table A-5
Serial Connector
4
98
52
76
13
Pin Signal Pin Signal
1 Carrier Detect 6 Data Set Ready
2 Receive Data 7 Ready to Send
3 Transmit Data 8 Clear to Send
4 Data Terminal Ready 9 Ring Indicator
5 Ground
Table A-6
External Monitor Connector
1
6
23
87
45
10
KEY
1112131415
Pin Signal Pin Signal
1 Red Analog 9 +5 Volt Supply
2 Green Analog 10 Ground
3 Blue Analog 11 Monitor ID Bit 0
4 Monitor ID Bit 2 12 Monitor ID Bit 1 (SDA)
5 Ground 13 Horizontal Sync
6 Ground 14 Vertical Sync
7 Ground 15 Monitor ID Bit 3 (SCL)
8 Ground
