Compaq ArmadaStation - Page 132

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

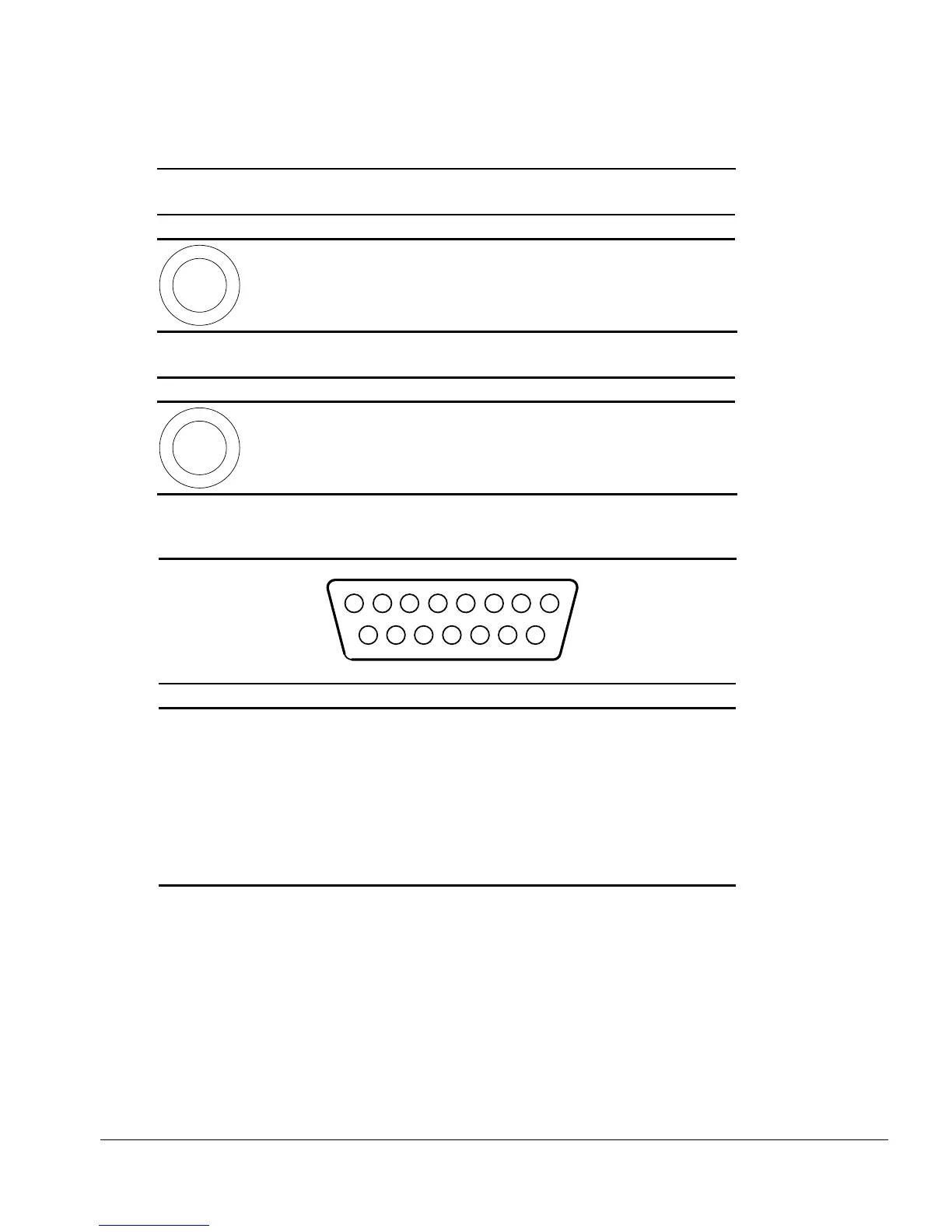

Connector Pin Assignments
A-3
Table A-7
Stereo Line-out Jack
Connector Pin Signal
1
2
1
2
Audio out
Ground
Table A-8
Stereo Line-in Jack
Connector Pin Signal
1
2
1
2
Audio in
Ground
Table A-9
MIDI/JoystickConnector
(ArmadaStation only)
213465
9
8
1011121315 14
7
Pin Signal Pin Signal
1 Ground 9 Ground
2 Joystick Button 10 Joystick Button
3 Joystick Direction 11 Joystick Direction
4 Ground 12 MIDI Out
5 Ground 13 Joystick Direction
6 Joystick Direction 14 Joystick Button
7 Joystick Button 15 MIDI In
8 Ground
