A-4

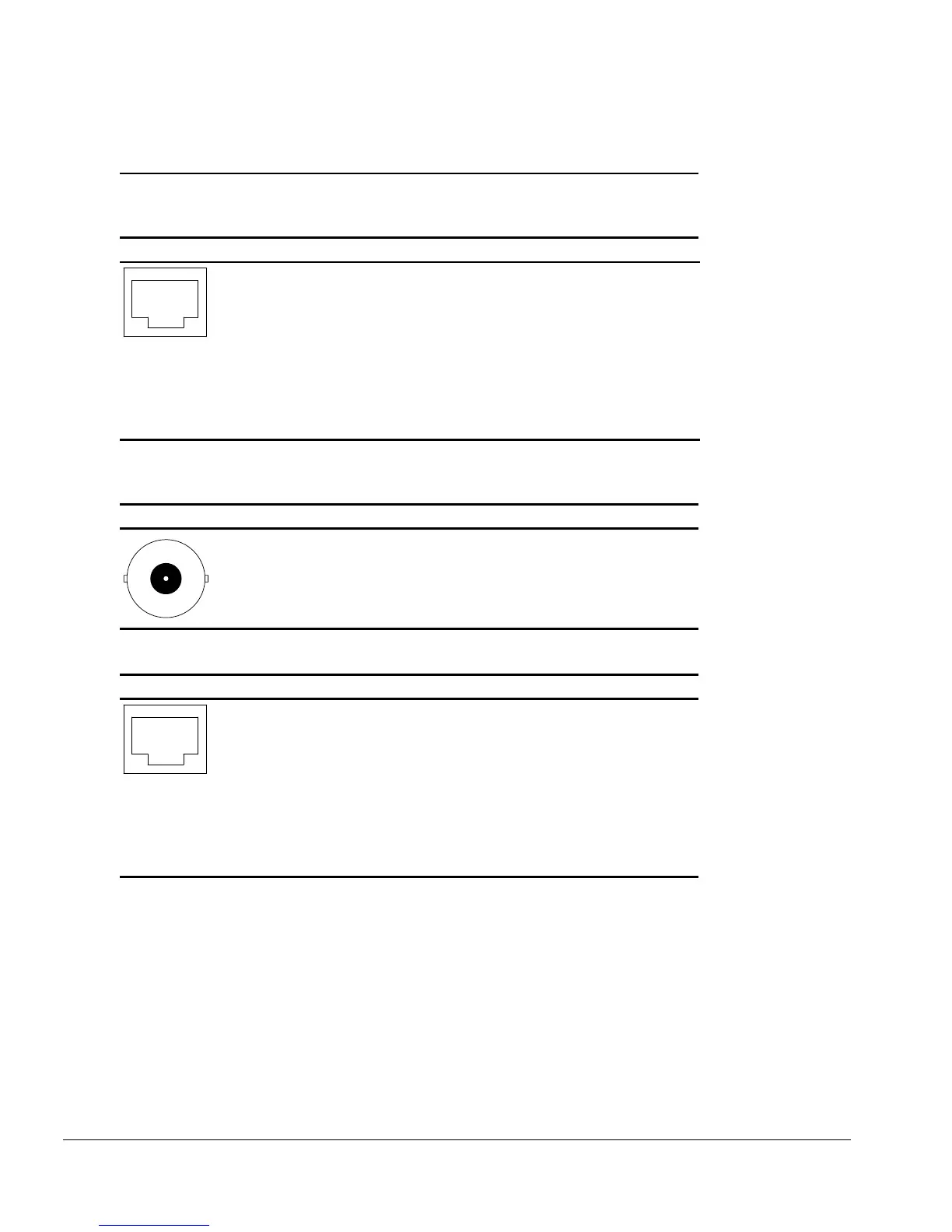

Connector Pin Assignments
Table A-10
Modem RJ-11 Jack
(North America, Latin America, Japan, and Hong Kong modem models)
Connector Pin Signal
6
5
4
3
2
1
7
8
1
2
3
4
5
6
7
8
NC_J3A
NC_J3B
TIP
RING
NC_J3C
NC_J3D
Unused
Unused
Table A-11
Ethernet BNC Connector
(Europe, Middle East, Africa, and Asia Pacific models)
Connector Pin Signal
1 (Inside)
2 (Outside)
Data
Ground
Table A-12
Ethernet RJ-45 Jack
Connector Pin Signal
6
5
4
3
2
1
7
8
1
2
3
4
5
6
7
8
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
Unused
(-) Receive Data
Unused
Unused
