ArmadaStation Removal and Replacement Procedures
5-29
11. Connect the hard drive cable to its respective connectors on the half-height MultiBay
adapter and backplane assembly (Figure 5-28).

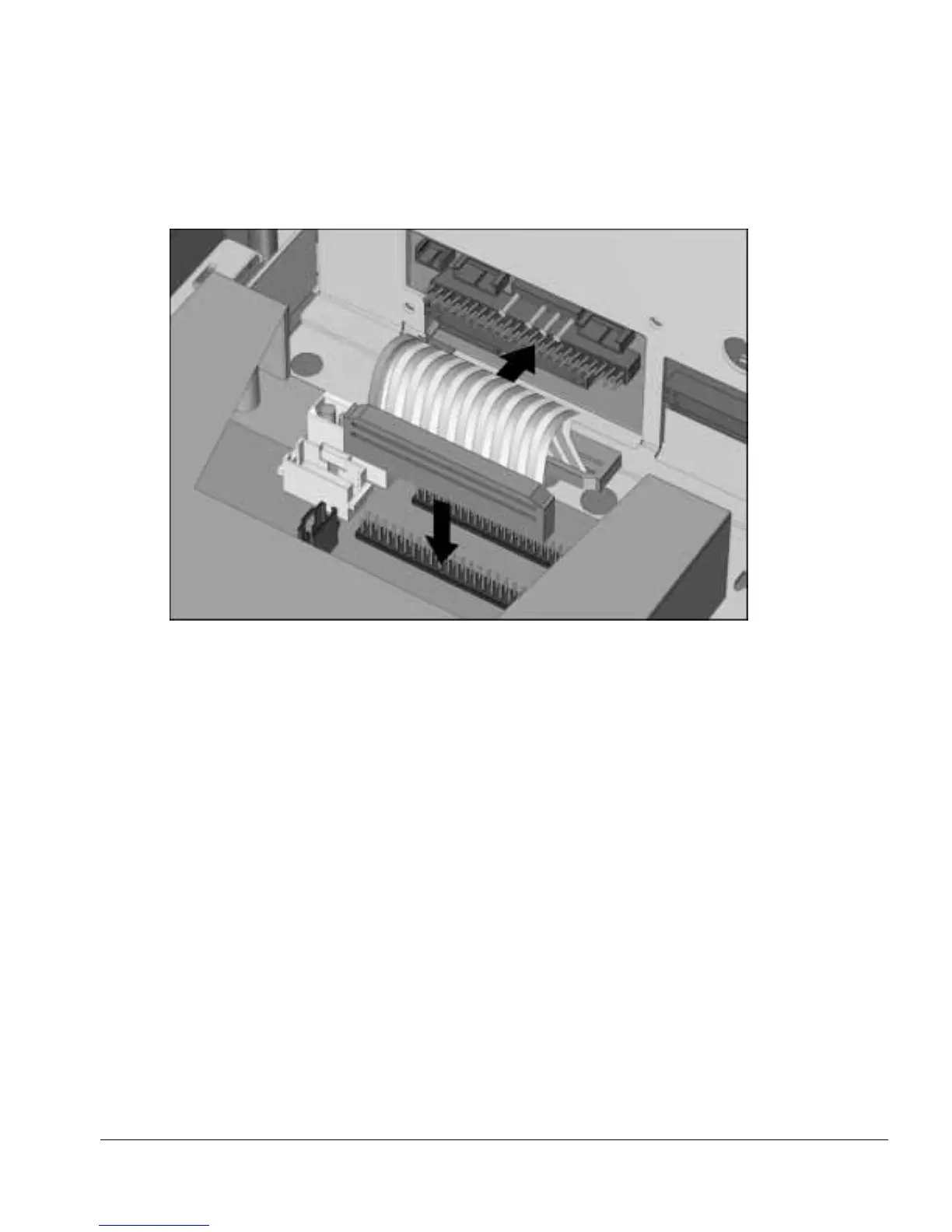

Figure 5-28.
Connecting the Hard Drive Cable to the Armada 7000 Half-Height MultiBay Adapter and
Backplane Assembly
