5-28
ArmadaStation Removal and Replacement Procedures
10. Connect the diskette drive cable to the diskette drive connector on the half-height
MultiBay adapter (Figure 5-27).

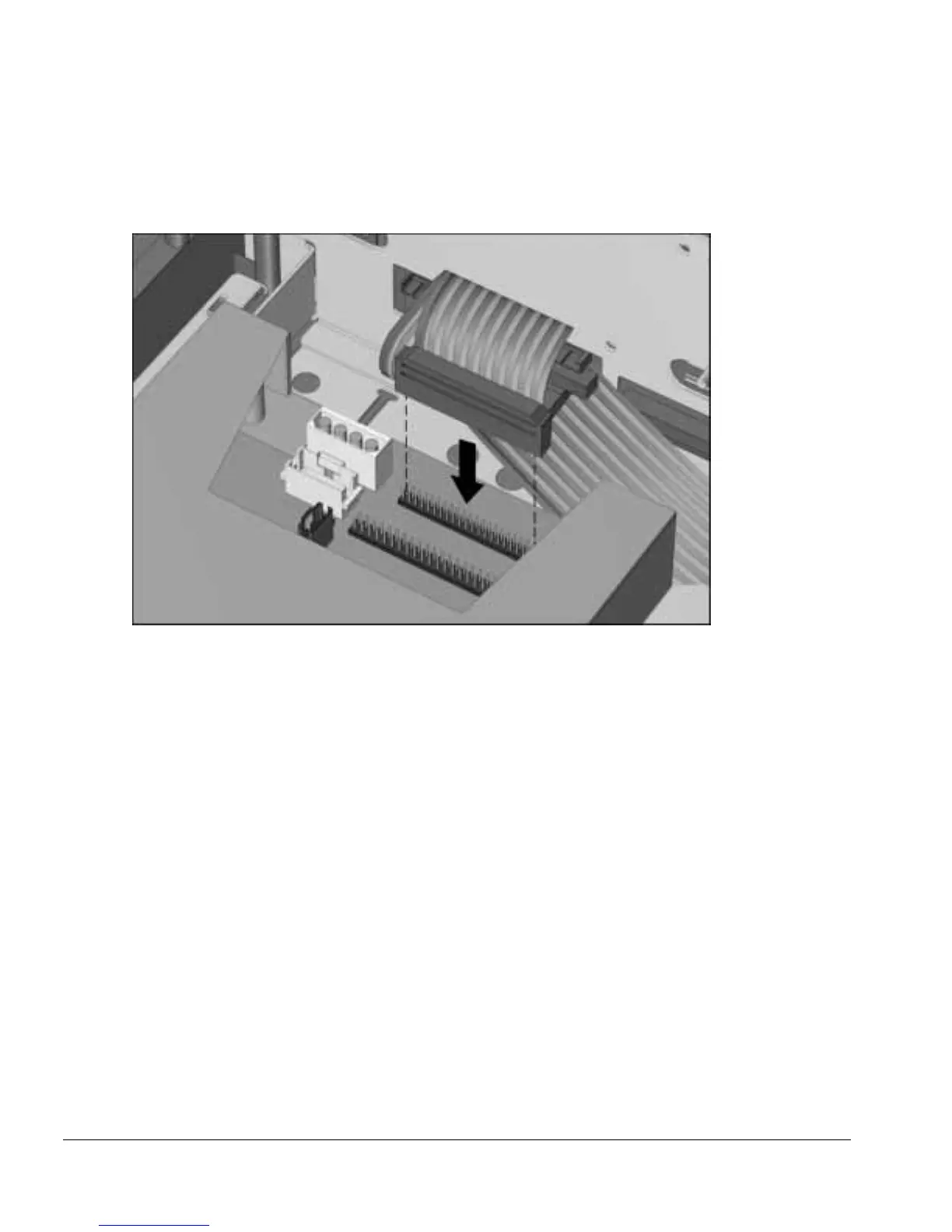

Figure 5-27.
Connecting the Diskette Drive Cable to the Armada 7000 Half-Height MultiBay Adapter
