5-36
ArmadaStation Removal and Replacement Procedures

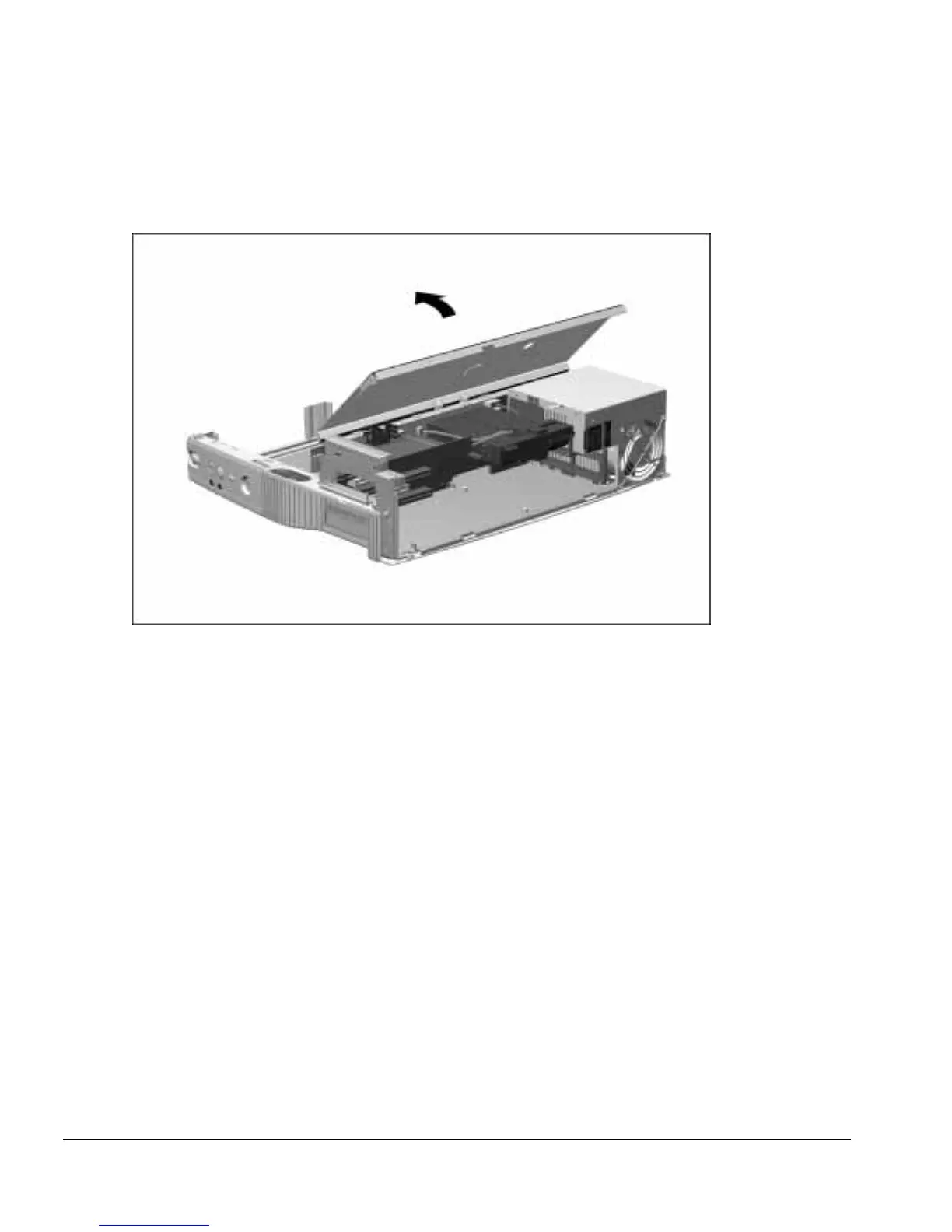

7. Lift up on the rear edge of the top brace and swing the brace forward until it clears
the ArmadaStation (Figure 5-35).
Figure 5-35.
Removing the Top Brace
