5-44
ArmadaStation Removal and Replacement Procedures
To install the control panel assembly, follow these steps:
1. Connect the control panel cable to the connector on the control panel assembly.
2. Rotate the security actuator clockwise
1
and push it toward the control panel
assembly until it locks on the indicated position
2
(Figure 5-42).

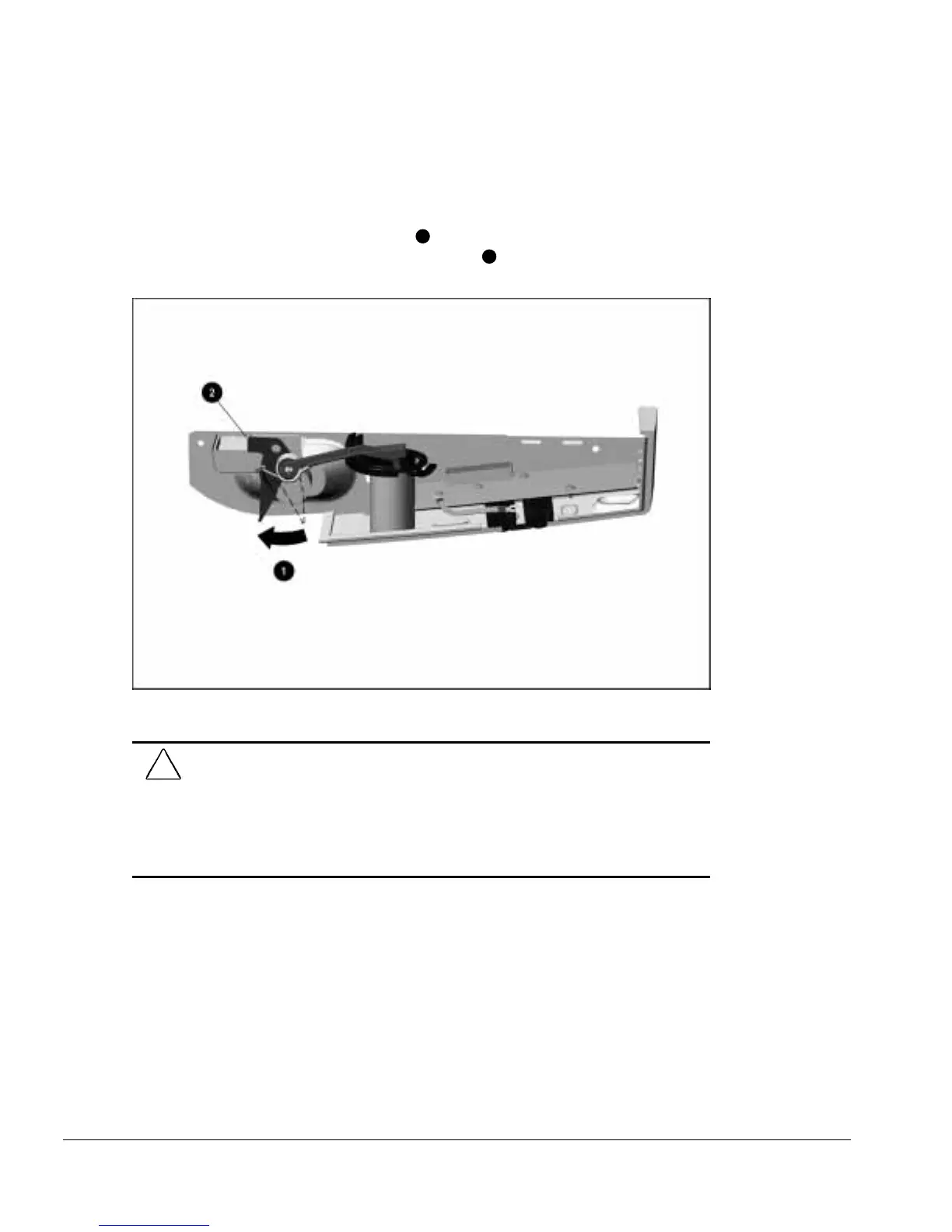

Figure 5-42.
Rotating the Security Actuator to the Proper Position
CAUTION:
Be careful when connecting the control panel cable to the control panel
assembly. The connectors only connect one way. Attempts to connect the cable the
wrong way can result in damage to the connectors on the control panel cable and control
panel assembly.
The connectors are properly seated and connected when the plastic connector housing
on the control panel cable fits flush in the plastic connector housing on the control panel
assembly.
