4. Install tape drive into media bay.
2
2
1
3
COMPACT

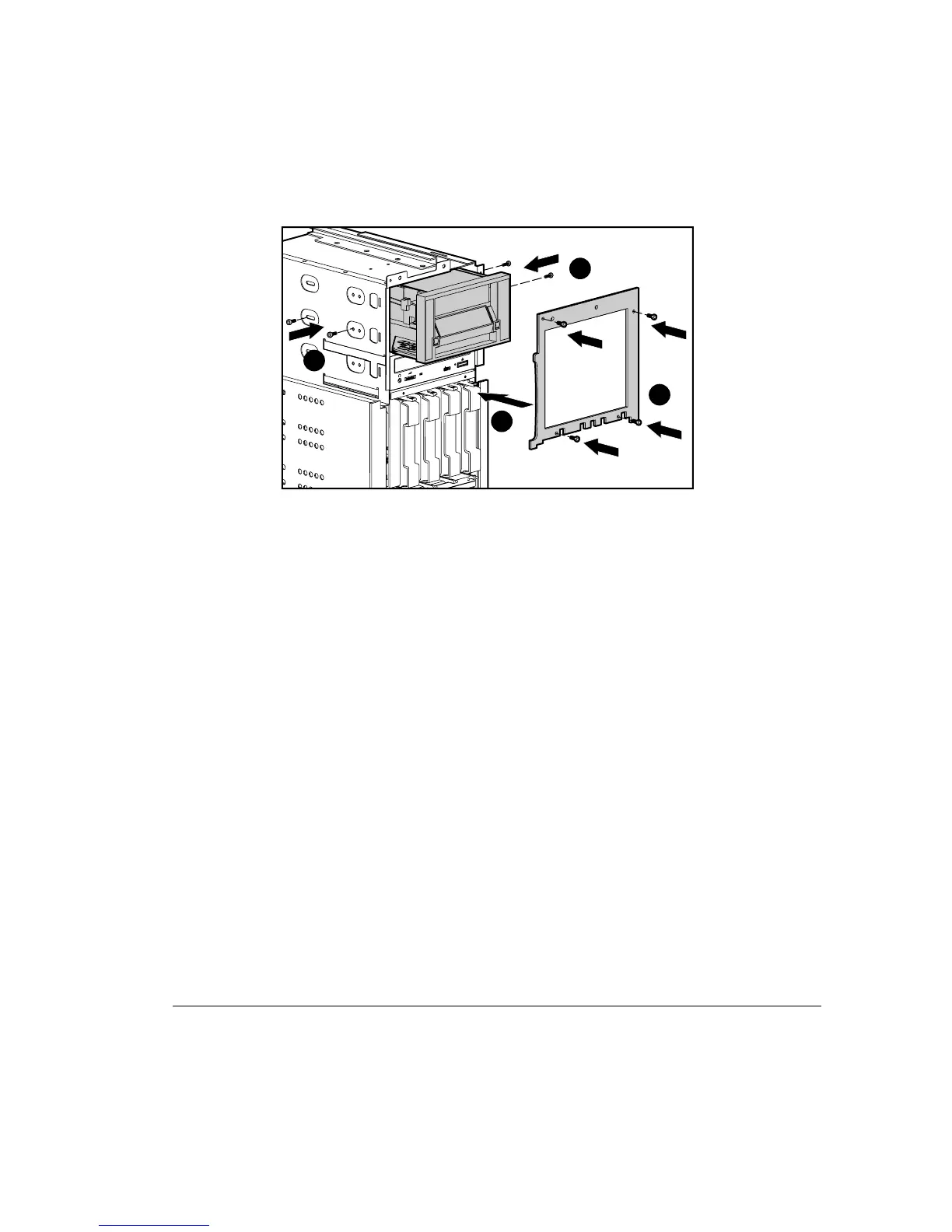

Figure 4-16. Installing tape drive
5. Install face plate.
6. Connect SCSI cable, located in the server, from the tape drive to the
internal SCSI Port 1 or 2 or SCSI controller board in a PCI slot, if one is
installed.
NOTE
: There are no special considerations as to which SCSI controller the
tape drive is connected.
7. Install drive cage. See section “Installing Drive Cage.”
