Installing Drive Cage
NOTE
: Your drive cage may differ from the model illustrated.
1. Replace the drive cage. Do not push it back fully until after you install
cables.

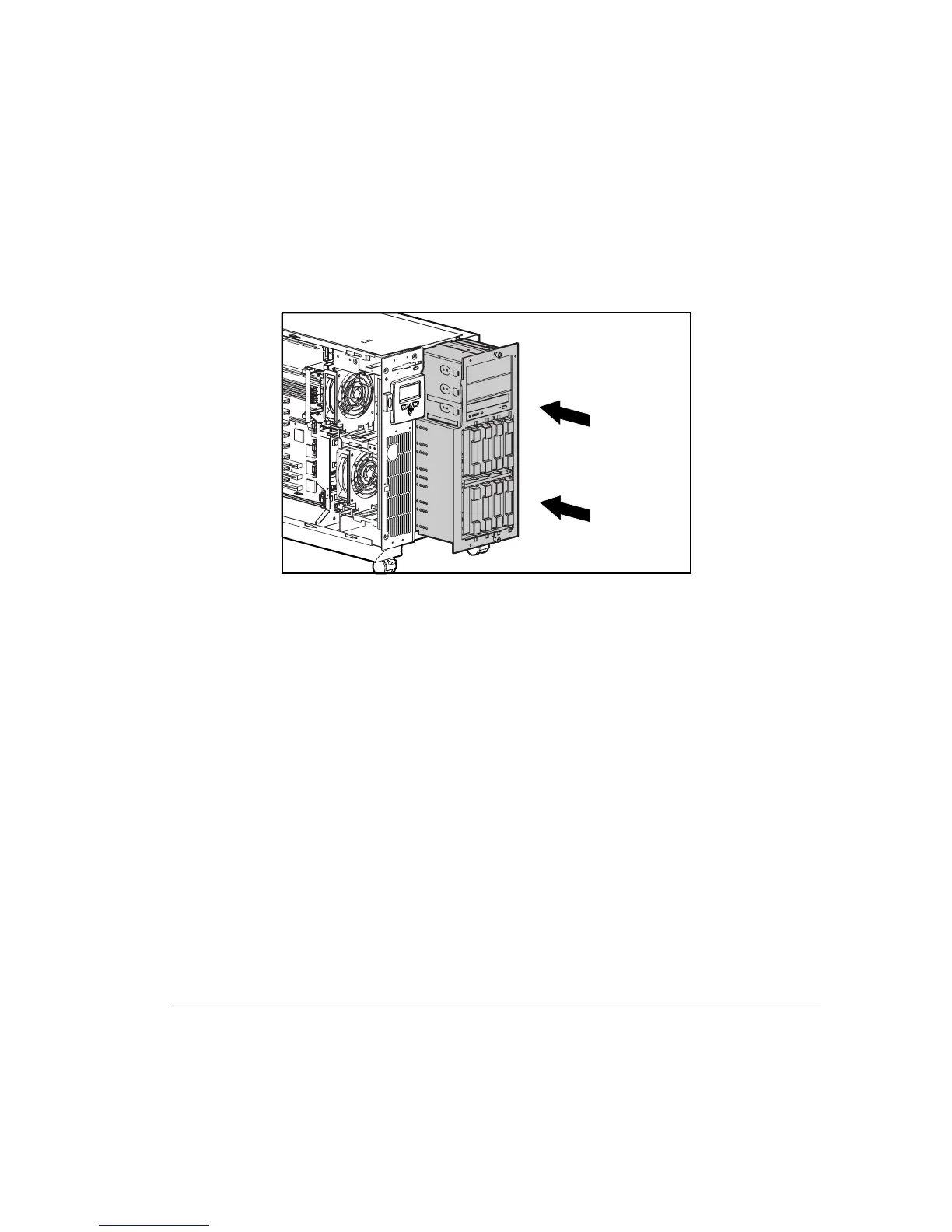

Figure 4-17. Re-installing the drive cage
2. Reconnect the SCSI cables on the back of the drive cage. Refer to
Compaq ProLiant 3000 Servers Cabling Guidelines for information on
SCSI cabling.
3. Pull out the drive cage latch and push the drive cage back fully until the
drive cage latch can be pushed into place.
4. Tighten the thumbscrews on the front of the drive cage.
5. Connect SCSI controller cables. See Compaq ProLiant 3000 Servers
Cabling Guidelines for more information on connecting SCSI cables.
6. Restore server to normal operation. Reverse steps in section "Preparing
the Server."
