Checking for Proper Air Flow (continued)

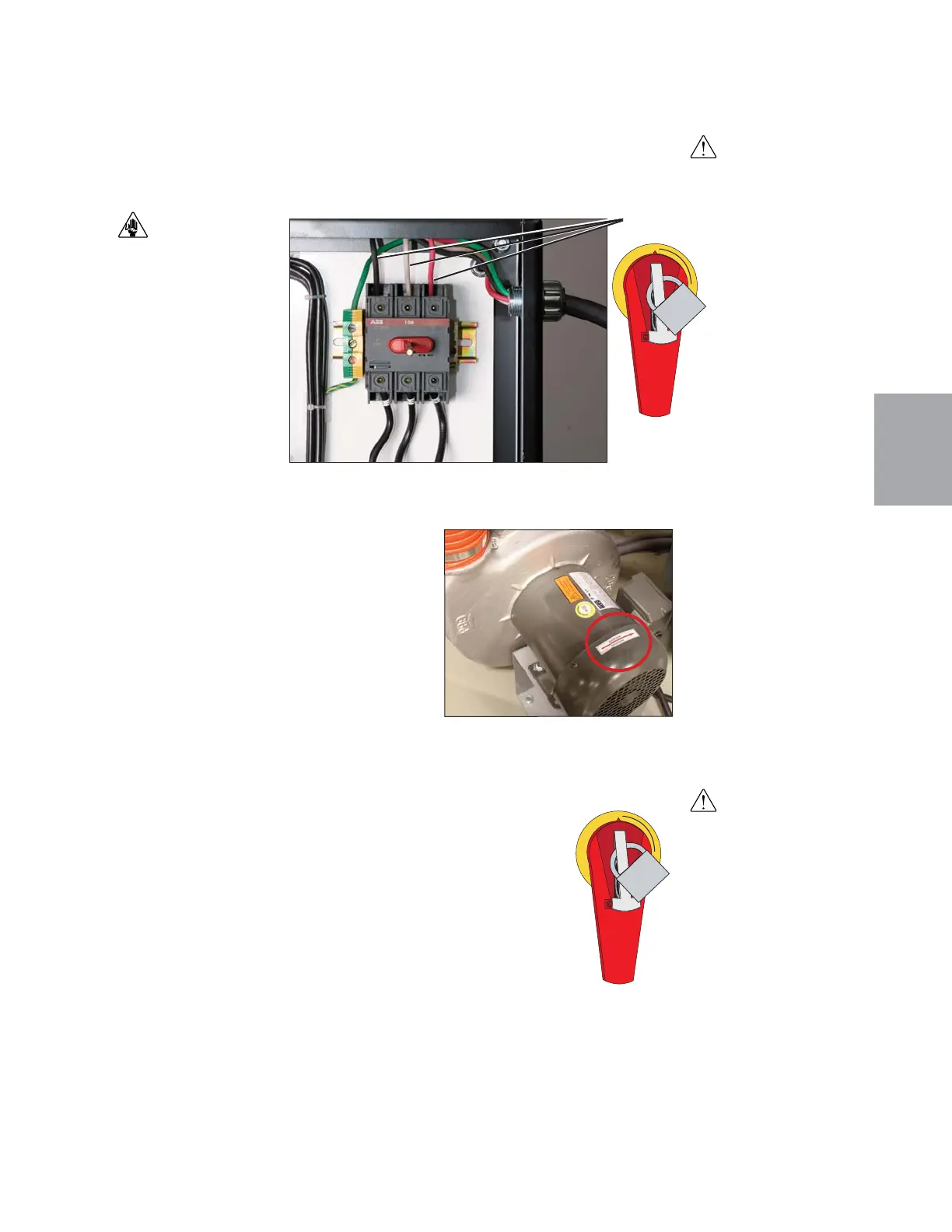

8 If airflow is incorrect disconnect power, follow proper lockout procedures and swap any
2 of the 3 incoming main power wires.
If the airflow is re-
versed, the delivery air
blower is turning in the
wrong direction. Turn off
and lock out the main
power source. Open the
electrical enclosure and
reverse any two leads
connecting the main
power supply to the
dryer.
9 Visually verify the regeneration blower motor
is moving in the correct direction indicated by
the arrow on the blower housing.
10 If airflow is incorrect disconnect power, follow proper lockout pro-
cedures and reverse the leads at the regeneration blower motor.
WARNING: All wiring, dis-
connects and fuses should
be installed by qualified
electrical technicians in
accordance with electrical
codes in your region. Al-
ways maintain a safe
ground. Do not operate the
equipment at power levels
other than what is speci-
fied on the machine serial
tag and data plate.
WARNING: All wiring, dis-
connects and fuses should
be installed by qualified
electrical technicians in
accordance with electrical
codes in your region. Al-
ways maintain a safe
ground. Do not operate the
equipment at power levels
other than what is speci-
fied on the machine serial
tag and data plate.
