3-4 l Ins tal la tion
✐

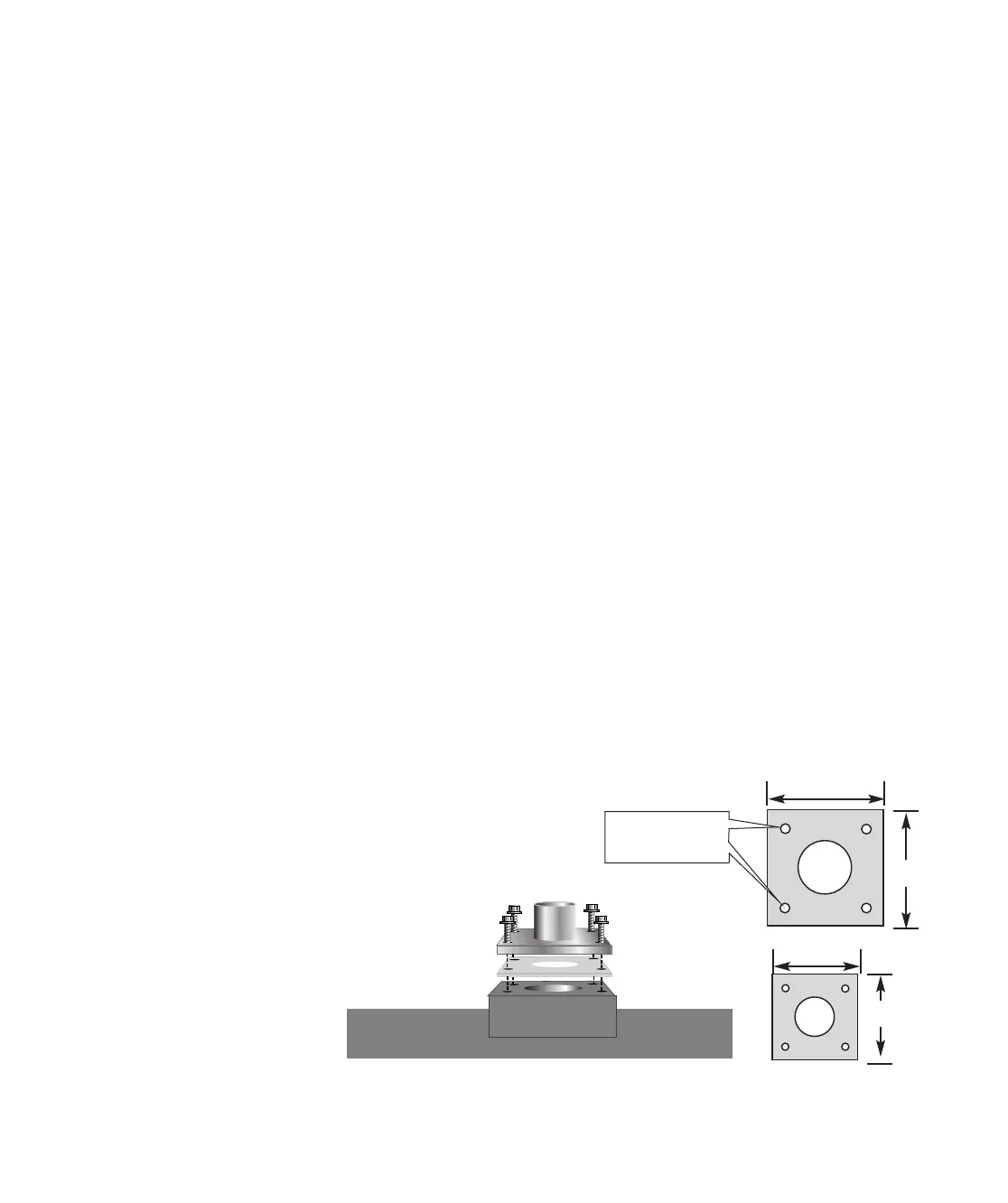

Mounting bracket
Gasket
Drill mounting
bolt holes
6 in. {152.4mm}
4 in. {101.6 mm}
6 in.
{152.4mm}
4 in.
{101.6 mm}
Preparing for Installation
The MDCW Carousel Plus Dryer has been designed for use beside the processing
machine. The mobile unit can also be used for pre-drying in a remote location.
1 Make sure the location for the MDCW provides:
❒ A grounded power source supplying the correct current for your dryer
model. Check the dryer’s serial tag for the correct amps, voltage, phase and
cycles. Field wiring should be completed by qualified personnel to the planned
location for the dryer. All electrical wiring should comply with your region’s
electrical codes.
❒ A source of water, when using the aftercooler or optional precooler. The
dryer’s aftercooler and optional precooler requires 2 gals./min {7.6 liters/min}
tower or city water at temperatures of 40° to 85°F {4° to 29°C}. Piping should
be ran to the planned dryer location. Use flexible hose to connect the water
pipes to the aftercooler or optional precooler.
2 Mount the vacuum receiver mounting bracket. Lay out the bolt pattern of
the processing machine feed throat on the blank base plate of the vacuum
receiver mounting bracket and gasket. Drill holes for the mounting bolts you
plan to use. Place the gasket between the feed throat and mounting bracket.
Bolt the mounting bracket to the feed throat.
NOTE: You will receive either a
4x4 inch {102x102 mm} or 6x6
inch {152x152 mm} mounting
bracket, depending on the dryer
model you have ordered. The
mounting bracket is specified on
your order. If you need a larger
mounting bracket, call Conair
Parts at 1-800-458-1960.
