Connecting Conveying Lines
The vertical conveying tubes and flexible conveying hoses may have been removed
for shipping. To assemble:

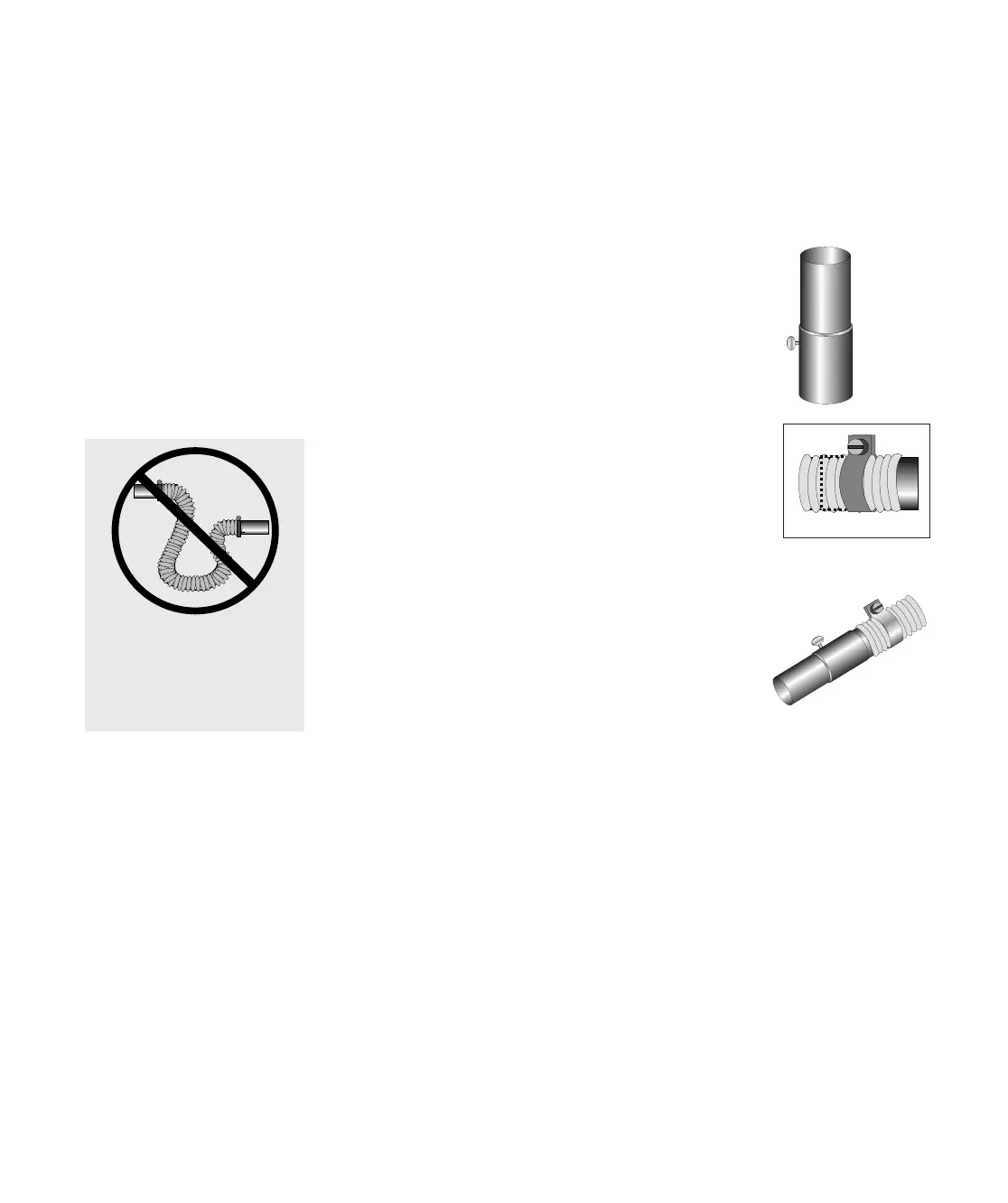

1 Insert each vertical conveying tube into its quick
disconnect fitting on the MDCW. Push the tube down
until you feel it seat snugly inside the disconnect fitting.
Tighten the thumb screws on the fittings to secure the
tubes.
2 Secure flexible conveying hoses to the vertical tubes
with hose clamps. Insert the tube at least 1 inch {2.54
cm} into the flexible hose. Secure the hose clamp at least
1/4 inch {0.64 cm} from the end of the tube.
3 Attach the flexible conveying hoses to the appro-
priate inlet and outlet of the vacuum receiver.
Push the quick disconnect fitting on the material
conveying hose over the material inlet tube. Push
the quick disconnect fitting on the return air convey-
ing hose over the conveying air outlet of the vacuum
receiver. Tighten the thumb screws on the fitting.
3-6 l Ins tal la tion
Hose clamps
NOTE: Do not allow the
flexible hoses to kink or
crimp.
✐
