6) Locate the cable tensioner assembly and remove the pulley. (See Figure # 22).
7) Attach the tensioning bar (complete with weight), to the pulley bracket using the 3/8”
shoulder bolt supplied. Re-attach the pulley.
8) Block the counterweight up; thereby, lifting the pulley up to its’ highest position.
9) Feed the governor cable through the small hole in the bottom of the governor tripping
cage. (See Figure # 23). Continue feeding the entire cable until you reach the swaged
button on the end.
10) Continue to feed the cable through the bottom pulley, then up through the top pulley and
back down to the governor tripping cage.

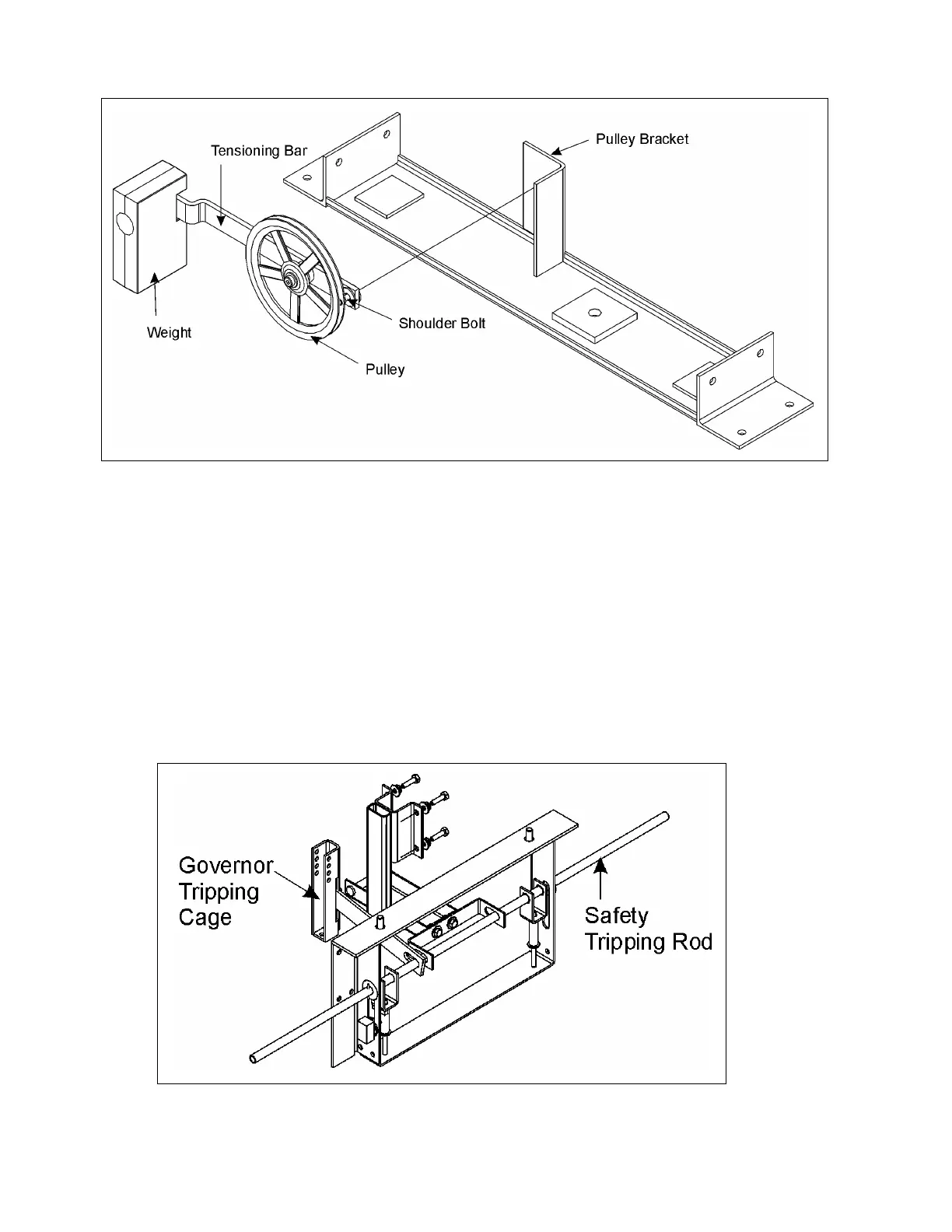

Figure # 22 Cable Tensioner Assembly
Figure # 23 Tripping Mechanism
