33

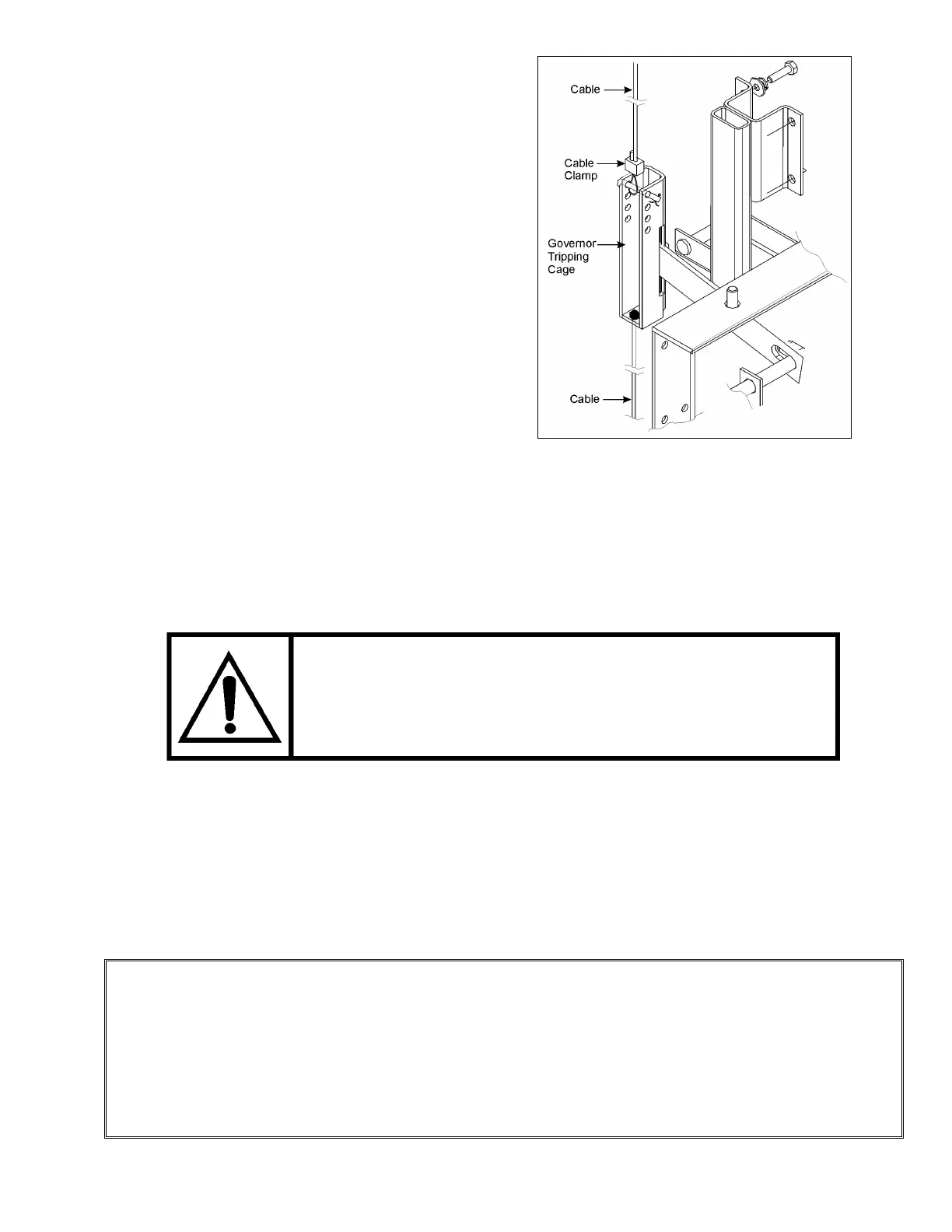

Figure # 24 Governor Tripping Cage
11) Take up the excess slack and create a small
loop at the end of the cable, insert the
thimble then, clamp it together.
12) Insert the cable loop in to the top of the
governor tripping cage and secure using
clevis pin and cotter pin supplied. (See
Figure # 24).
13) Remove the block from underneath the
counterweight to further tighten the cable.
14) Reconnect the power supply, including the
power supply to the battery back-up system.
15) Intermittently jump the terminals #2 and #5
(on the pump controller), to gradually take
up the slack in the cable.
ELECTRICAL INSTALLATION
CONNECTING THE POWER SUPPLY
LOCAL CODES AND REGULATIONS MAY REQUIRE A
LICENSED ELECTRICIAN TO CONNECT TO THE
MAINS. CHECK WITH YOUR LOCAL AUTHORITY
BEFORE BEGINNING THE WORK.
1) CONNECTING THE MAIN POWER LINES - Make sure the power supply is in
accordance with the ordered configuration. Connect to L1 & L2 (for single phase) or L1,
L2, & L3 (for three phase), as required.
2) CONNECTING THE 110 VOLT CAB LIGHTING POWER SUPPLY - Wire the fused 110
volt, 15 amp supply to the H (Hot) and N (Neutral) at the top of the Series 8000 PC Board
at the power unit.
NOTE
Refer to the “Electrical Schematics” section (Appendix A) of this manual for power supply
connections to the Series 8000 Power Supply Board. Configuration of jumpers on Terminals
T3904 and T3905 may have to be re-configured, depending on the input power supply. These
are factory set to the information provided on your Order Form. To ensure proper power supply
to the elevator controls, measure the input voltage for the lighting power supply (nominally 110
VAC) and the main motor and controller power supply (typically 220 VAC or 208 VAC). Ensure
that the configuration is correct.
