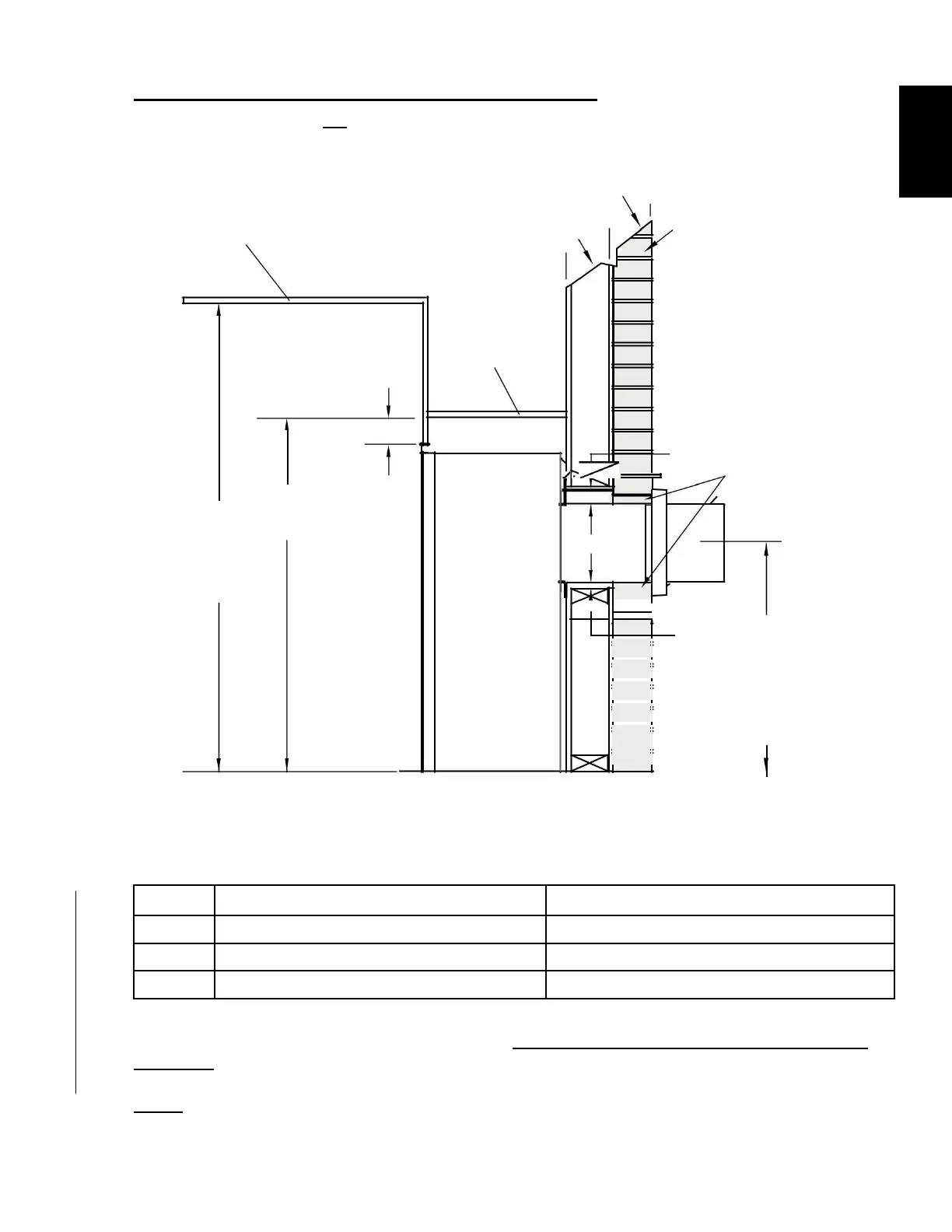

CB36 / CX36-1 MINIMUM REAR VENT CLEARANCES
For rear vent termination not exceeding 10" (254mm) of horizontal vent run.
EN
NON-COMBUSTIBLE
Ceiling
COMBUSTIBLE
BRICK
41"
54"
B
[137.2cm]
[104.1cm]
A
CEILING
(MIN)
C
6 3/8"
[162mm]
Enclosure
3"
[76.2mm]
0” (0mm) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
1"
24"
[25mm]
[61cm]
MINIMUM
PLUS RISE*
1"-10"
[25mm-254mm]
VENT RUN
Ref.
CB36
CX36-1
A
54" (137.2cm)
54" (137.2cm)
B
41" (104.1cm)
44" (111.2cm)
C
6 3/8" (162mm)
9 3/8" (238mm)
REAR EXIT ENCLOSURE
The appliance requires a minimum enclosure height of 41" (104.1cm) for the CB36 OR 44" (111.2cm) for
the CX36-1. For temperature requirements, the enclosure space around and above the appliance must be
left unobstructed.
NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the
combustible wall penetration.
* See "venting" section.
