Leave a hand on the glass door during the entire door re-
moval. The glass door is secured to the firebox with 2 spring
latches along the top and 2 along the bottom. Pull the han-
EN
dles of the latches forward, then lift the latches out from the
door frame to release the top of the door. Repeat the same
step for the 2 bottom latches. Next, pivot the door forward
until the top edge clears the front of the appliance. Carefully
grip the sides of the door, lifting it off the appliance.
Spring LatchesSpring
Latches
NOTE: The spring latches constitute the spring relief
system for the appliance. Ensure they open freely and
close with a tight seal.
Reverse these steps to reinstall the safety barrier and door.
Ensure safety barrier is installed correctly.
6.2 front hood installation
NOTE: This hood MUST be installed if it has not already been factory installed.
NOTE: Safety barrier and glass door must be removed before beginning installation.

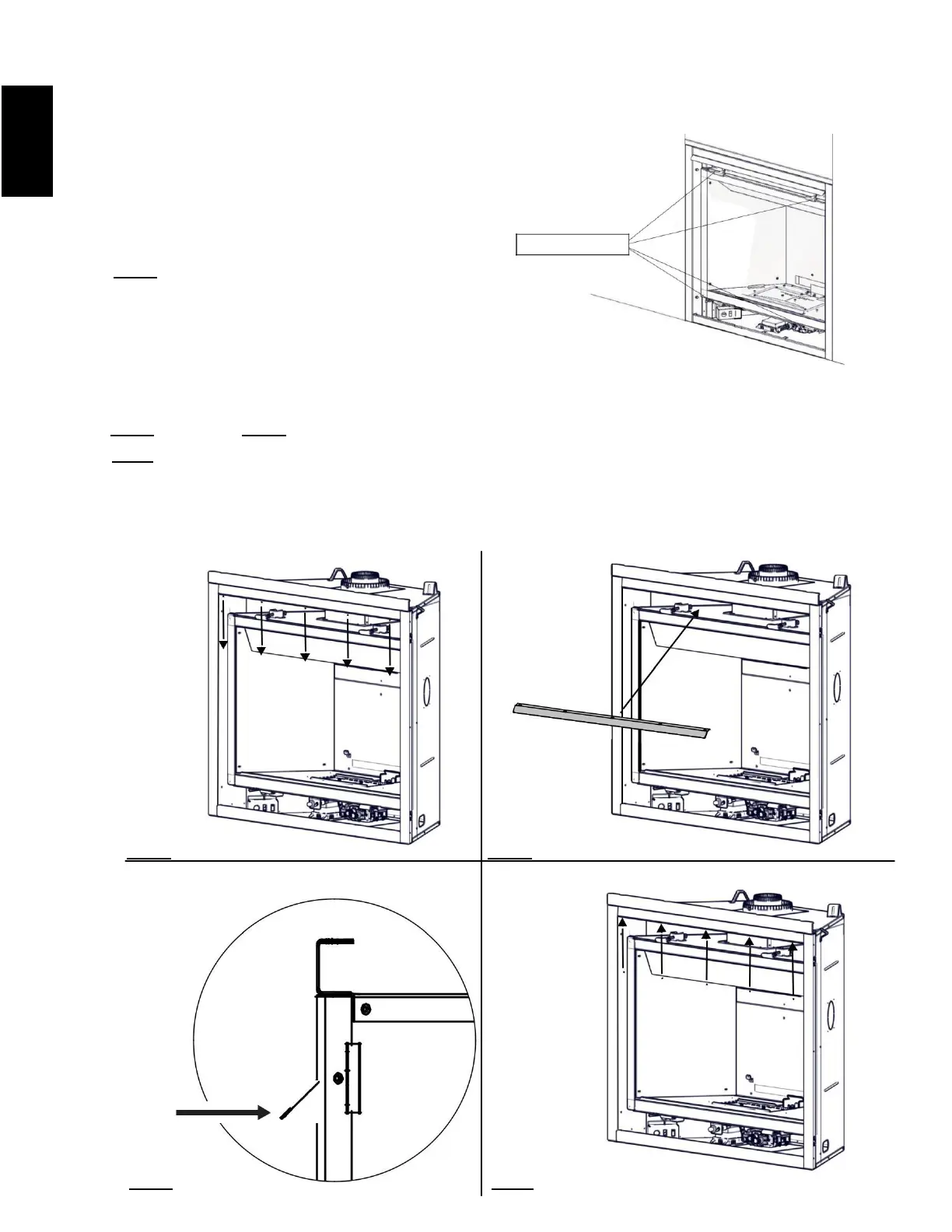

A. Remove the 4 securing screws from the top of the firebox (FIG 1).
B. Install the front hood, ensuring it is angled downwards (FIG 2, 3).
C. Reinstall the securing screws from Step A (FIG 4).
FIG. 1
FIG. 2
SIDE VIEW
HOOD
FIG. 3
FIG. 4
W415-1679 / D / 03.09.18
