Continental Fireplaces CB36PTR - 5.2 Minimum Enclosure Clearances

38
5.2 minimum enclosure clearances
EN
CB36 / CX36-1 TOP VENT
COMBUSTIBLE NON-COMBUSTIBLE
CEILING
ENCLOSURE
15
3"
5/8”
[76.2mm]
[39.7cm]
3" [76.2mm]
MINIMUM
BRICK
3"
[76.2mm]
0” (0MM) IF NON-
COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
54"
1"
[137.2cm]
[25mm]
CEILING
2"
(MIN)
[50.8mm]
50 1/2"
[128.3cm]
42
5/8"
[108.3cm]
MINIMUM
PLUS RISE*
1"
[25mm]

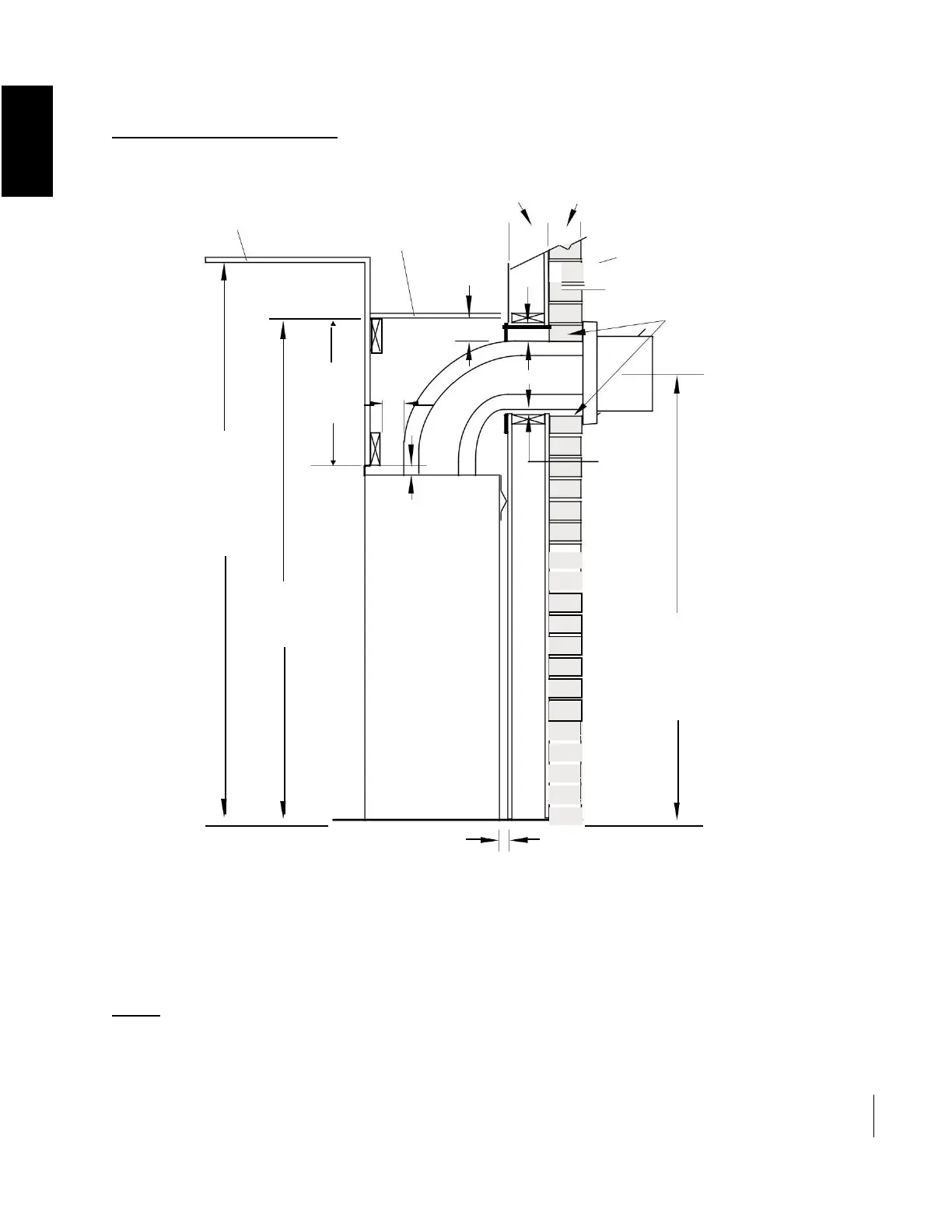

TOP EXIT ENCLOSURE
The appliance requires a minimum enclosure height of 50 1/2" (128.3cm). For temperature requirements,
the enclosure space around and above the appliance must be left unobstructed.
NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the
combustible wall penetration.
* See "minimum framing dimensions" section for details on reducing vent pipe top
clearances. These parameters also apply to all illustrations in this section.
W415-1679 / D / 03.09.18
