Continental Fireplaces CB36PTR - 7.3 CX36-1 Electronic Wiring Diagram

50

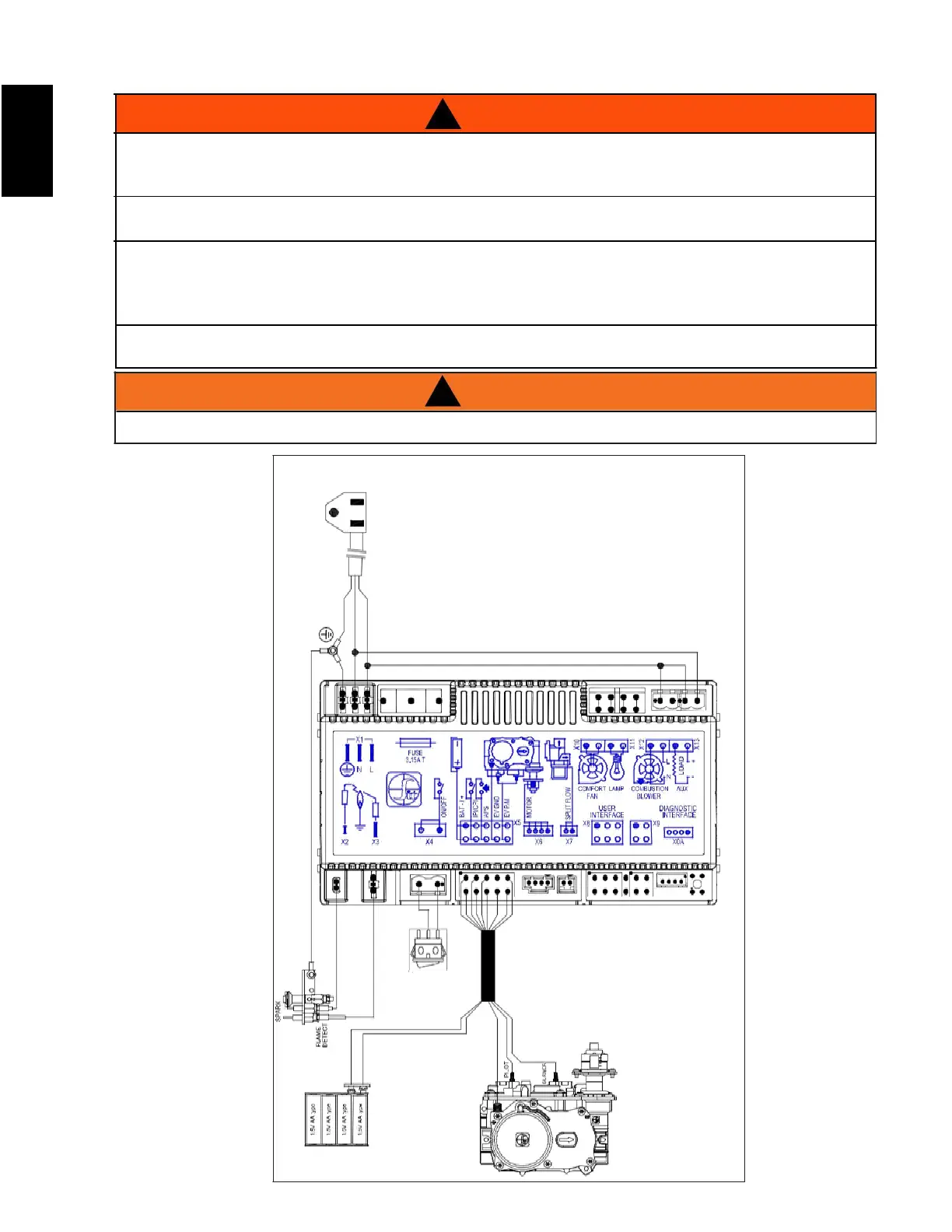

7.3 CX36-1 electronic wiring diagram
EN
! WARNING
DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED
SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE
ELECTRICAL CIRCUIT.
RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE
APPLIANCE WALL SWITCH. INCORRECT WIRING WILL DAMAGE CONTROLS.
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN
OUT, WITH THE GLASS DOOR OPENED OR REMOVED.
! WARNING
DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH.
M A I N L I N E
APPLIANCEGROUNDSTAR
W750-0274(POWERCORD)
W 1 9 0 - 0 1 1 3 C O N T R O L M O D U L E
W010-276 3 (NG) W010 -2808(LP)(PILOTASS EM BL Y)
PILOT
MAIN ON/OFFSWITCH
W175-0633(CONNECTOR)
W750-0267WIREHARNESS
BATTERYPACK
W350-0702(BATTERYHOUSING)
885 PROFLAME
W 7 2 5 - 0 0 6 2 ( N G ) W 7 2 5 - 0 0 6 3 ( L P ) G A S V A L V E
W415-1679 / D / 03.09.18
