5.5 recessed installation
INSTALLING A TELEVISION OR OTHER ELECTRONICS ABOVE THE APPLIANCE MAY CAUSE
DISCOLOURATION, MELTING OR DAMAGE TO THE ELECTRONICS. USE CLEARANCES AS GUIDELINES
AND REFER TO YOUR MANUFACTURER‟S INSTRUCTIONS FOR FURTHER INFORMATION.
A
B
C

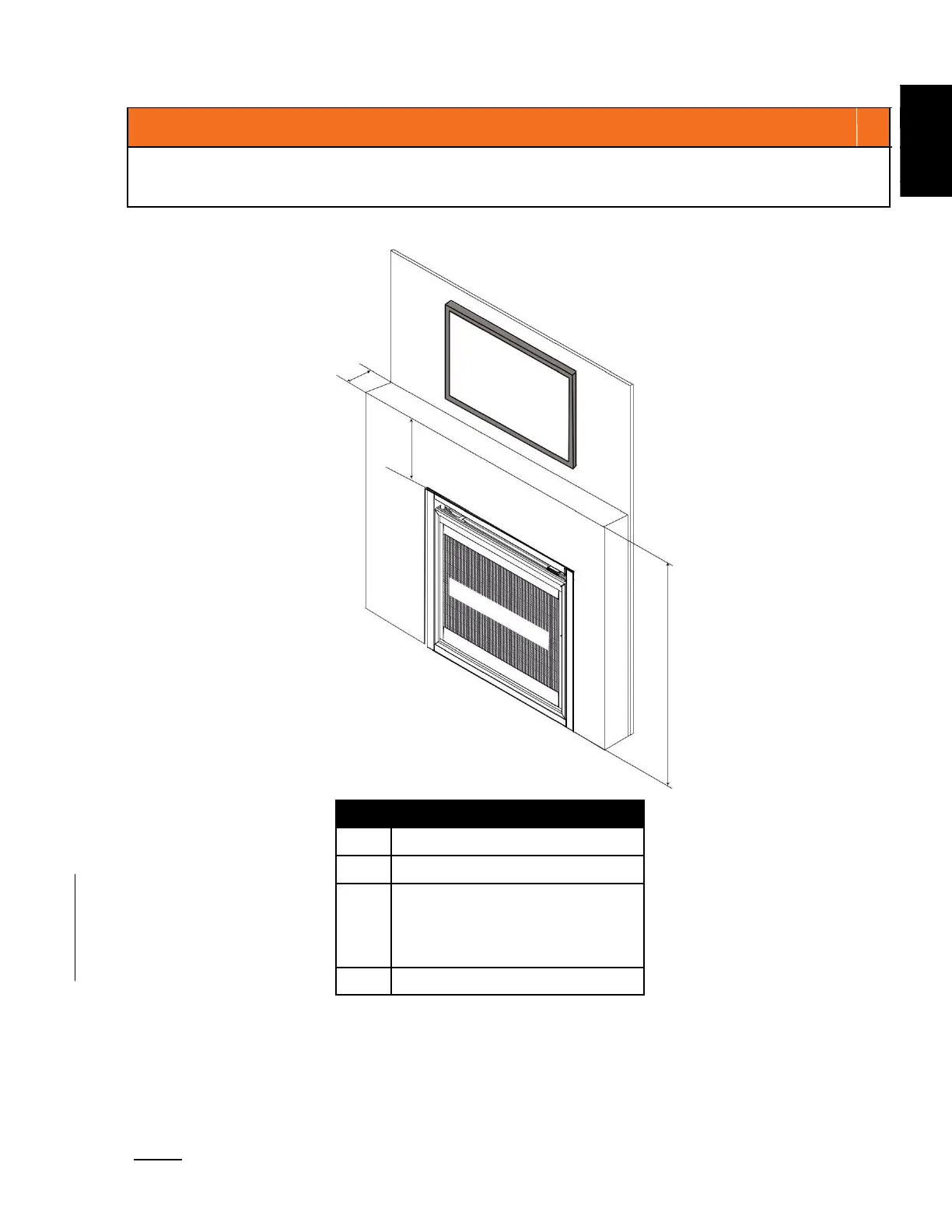

CLEARANCES CHART
A 6" (152.4mm) MAX
B 10" (254mm) MIN
C 44" (1.11m) MIN (REAR VENT)
for CX36-1
41" (1.04m) MIN (REAR VENT)
for CB36
C 50 1/2" (1.28m) (TOP VENT)
Before placing anything above a heat source, it is advisable to follow proper clearances
and manufacturer‟s instructions.
When a mantel is installed between the appliance and an electronic device or other materials, the effect
of direct heat on the electronics or other materials will be reduced. Follow mantel height and depth
instructions for proper clearances (see "minimum mantel clearances" section).
NOTE: Increasing the horizontal length of the mantel will further reduce the intensity of heat
on the electronics.
