Continental Fireplaces CB36PTR - 15.0 Troubleshooting (Electronic)

67
15.0 troubleshooting (electronic)
! WARNING EN
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN
OUT, WITH THE GLASS DOOR OPEN OR REMOVED.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.
DO NOT USE ABRASIVE CLEANERS.

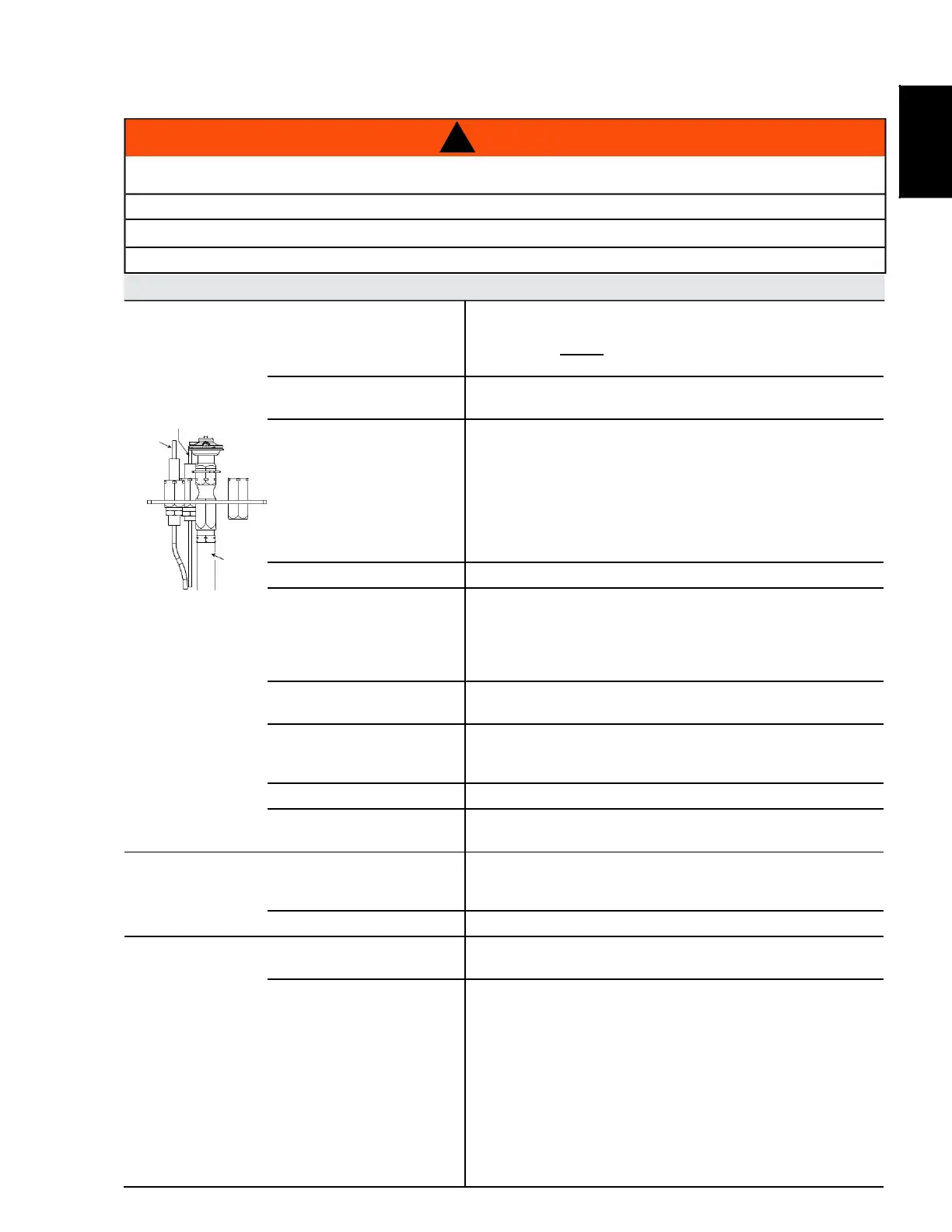

SYMPTOM PROBLEM TEST SOLUTION
Pilot will not light.
Makes noise
with no spark at
pilot burner.
IGNITOR
(SPARK)
SENSOR
PILOT
TUBE
Wiring.
- Verify the wire for the sensor and the wire for the ignitor are
connected to the correct terminals (not reversed) on the
module. NOTE: Sensor has 3/16” (4.8mm) connection
1/8” (3.2mm)connection.
and ignitor has
Loose connection.
- Verify no loose connections, electrical shorts in the wiring
or ground out to any metal object.
Module.
- Turn the ON/OFF switch to the “OFF” position. Remove
the igniter wire from the module. Place the ON/OFF switch
to the “ON” position. Hold a grounded wire about 3/16”
(4.8mm) away from the ignitor (spark) terminal on the
module. If no spark the ignitor terminal module must be
replaced. If there is a spark the ignitor terminal is fi ne.
Inspect pilot assembly for a shorted wire or cracked
insulator around the electrode.
Igniter Spark gap is incorrect.
- Spark gap of the ignitor to the pilot should be 1/8” (3.2mm).
Transformer.
- Verify the transformer is installed and plugged into the
module. Check voltage of the transformer under load at
the spade connections on the module with the ON/OFF
switch in the “ON” position. Acceptable readings of a good
transformer are between 6.2 and 7.0 volts A.C.
Battery backup (if power is
- Check batteries.
off)
A shorted or loose
- Remove and reinstall the wiring harness that plugs into the
Connection.
module. Remove and verify continuity of each wire in wiring
harness.
Improper switch wiring.
- Troubleshoot the system with the simplest ON/OFF switch.
Module is not grounded.
- Verify the valve and pilot assemblies are properly grounded to
the metal chassis of the appliance or log set.
Pilot sparks but
Gas supply.
-
Verify that the incoming gas line ball valve is “Open”. Verify
will not light.
that the inlet pressure reading is within acceptable limits,
inlet pressures must not exceed 13” W.C. (32.3mb).
Out of propane gas.
-
Fill the tank.
Carbon is being
Air shutter has become
-
Ensure air shutter opening is free of lint or other
deposited on
blocked.
obstructions.
glass, logs,
Flame is impinging on the
-
Check that the glass, logs, rocks or media are correctly positioned.
rocks, media
glass, logs, rocks, media or
- Too much glass media around the burner can cause carbon deposits.
or combustion
combustion chamber.
-
Open air shutter to increase the primary air.
chamber surfaces.
-
Check the input rate: check the manifold pressure and
orifi ce size as specifi ed by the rating plate values.
-
Check that the door gasketing is not broken or missing and
that the seal is tight.
-
Check that both vent liners are free of holes and well
sealed at all joints.
-
Check that minimum rise per foot has been adhered to for
any horizontal venting.
W415-1679 / D / 03.09.18
