Continental Fireplaces CB36PTR - Charcoal Embers; Glowing Embers; Battery Back-Up Installation

48
6.4
charcoal embers
EN
! WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
6.5 glowing embers
Tear the embers into pieces and place along the front row of ports covering all of the burner area in front of the
small logs. Care should be taken to shred the embers into thin, small, irregular pieces as only the exposed
edges of the fibre hairs will glow. The ember material will only glow when exposed to direct flame.
However, care should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits, and delayed ignition.
PHAZERTM logs glow when exposed to direct flame. Use only certified "glowing embers" and PHAZERTM logs
available from your authorized dealer / distributor.
6.6 battery back-up installation
! WARNING
ENSURE THE GAS AND ELECTRICAL POWER TO THE APPLIANCE IS TURNED OFF.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL THE APPLIANCE HAS COOLED.
NOTE: In the event of a power failure, the appliance can be operated using the supplied battery back-up.
A. Before beginning installation, disconnect the gas and electrical power supply from the appliance.
B. Locate the supplied battery housing.
C. Install 4 “AA” batteries (not supplied) into the battery housing, ensuring the positive and negative
ends correspond with those identified on the holder. (To open the battery housing, slide the back
piece upwards and off of the battery housing).
D. Remove the safety barrier to easily access the control compartment.
E.

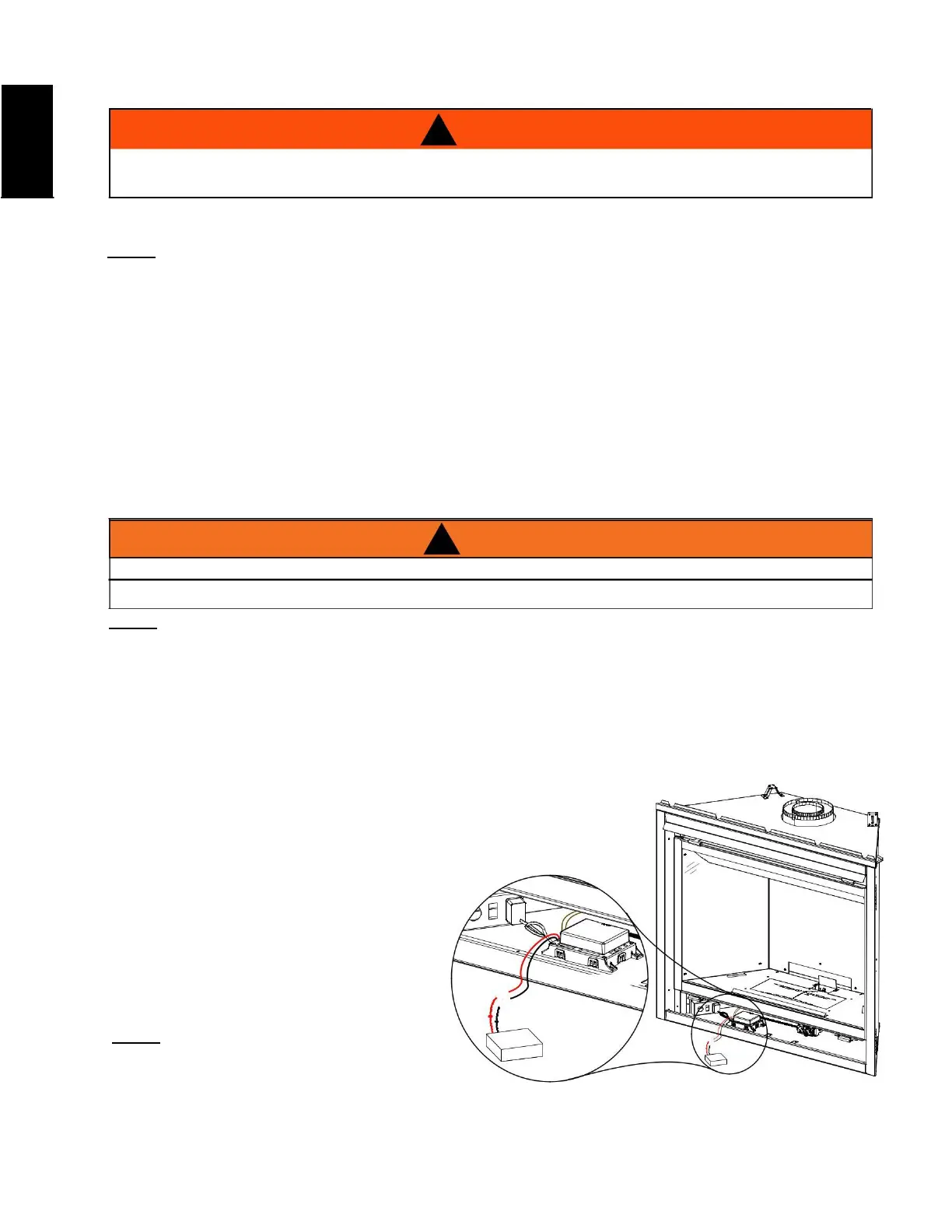

Attach the wire labelled “BATTERY” from
the wiring harness, located in the control
compartment of the appliance, to the
battery housing.
F.
Place the battery housing into the
control compartment, ensuring that the
battery housing is placed in a clean and
easily accessible location.
G.
Reinstall the safety barrier. The safety
barrier must be installed at all times
during appliance operation.
Control module
H.
Turn the gas and electrical power back
Red wire
on to operate appliance.
Black wire
NOTE: Once the power has been restored,
remove the batteries from the holder. The
system will drain the batteries if they are left
in the battery holder.
Battery housing
W415-1679 / D / 03.09.18
