Continental Fireplaces CB36PTR - 7.0 Wiring Diagram; 7.1 Wiring Requirements; 7.2 CB36 Electronic Wiring Diagram

49
7.0
wiring diagram
7.1
wiring requirements for CB36 / CX36-1
EN
This appliance must be electrically connected and grounded in accordance with local codes. In the absence of
local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70-1996 National
Electrical Code in the United States.
It is necessary to hard wire this appliance. Permanently framing the appliances with an enclosure requires the
appliances' junction boxes to be hard wired. This appliance must be electrically connected and grounded in
accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian electrical code
in Canada or the ANSI/NFPA 70-1996 national electrical code in the United States.

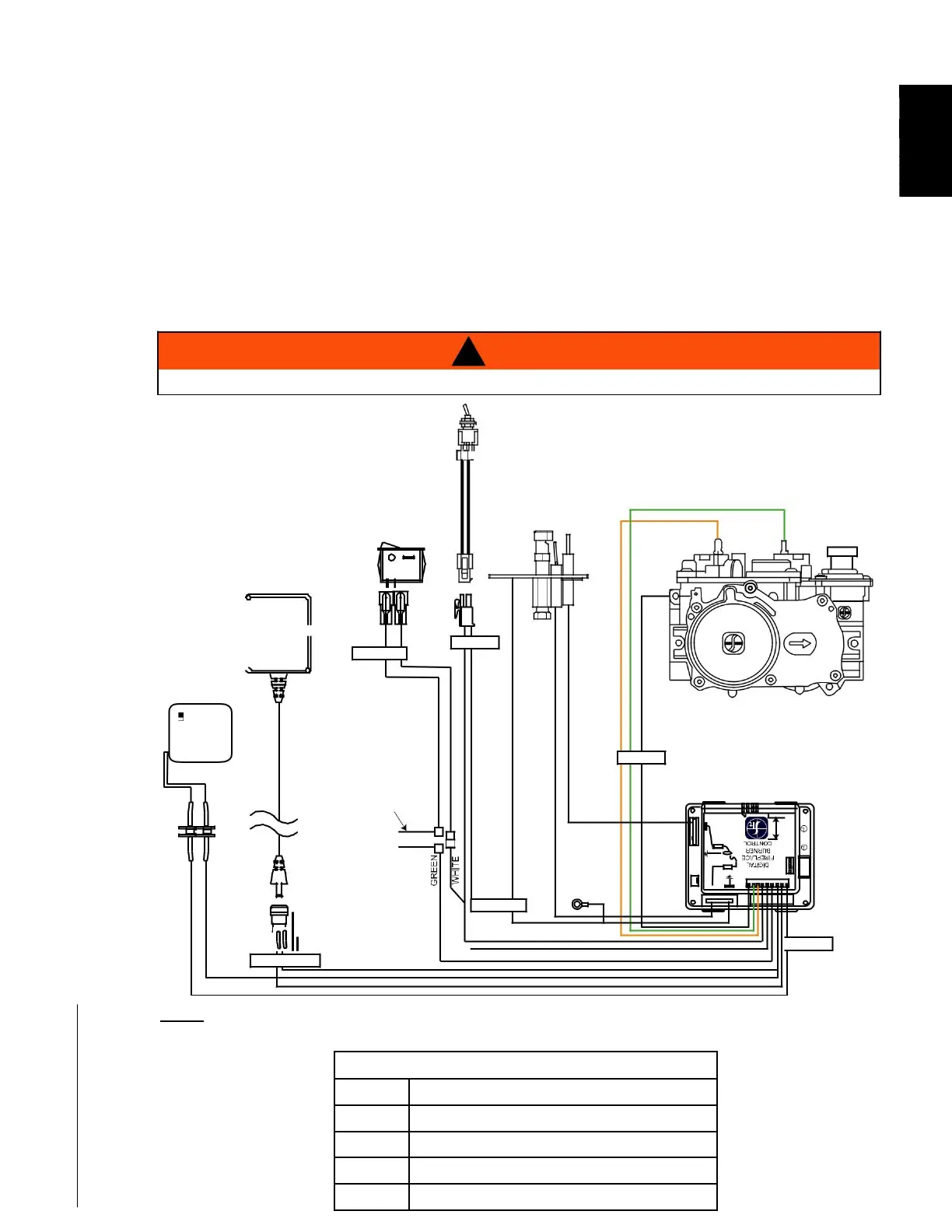

7.2
CB36 electronic wiring diagram
! WARNING
DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH
ACS/IPI
SWITCH
(OPTIONAL)
ON / OFF
SWITCH
ORANGE
GREEN
TRANSFORMER
IPI / CPI
BATTERY
ON / OFF
HOUSING
BATTERY
(SUPPL ED IN
HOUSING
MANUAL BAGGIE)
OFF ON
VALVE
ELECTRONIC
DISCONNECT THESE
CONNECTIONS TO THE
VALVE
ON/OFF SWITCH AND
CONNECT TO AN
IPI BOARD
OPTIONAL THERMOSTAT.
GROUND
EYELET
GROUND
DFC DC SUPPLY
NOTE: The battery housing was supplied with the appliance. In an event of a power failure, install 4
'AA' batteries (not supplied) in the housing and attach to wire harness as illustrated above.
Legend
DFC
Digital Fireplace Control
DC
Direct Current
IPI
Intermittent Pilot Ignition
CPI
Continuous Pilot Ignition
ACS
Anti-Condensation Switch
W415-1679 / D / 03.09.18
