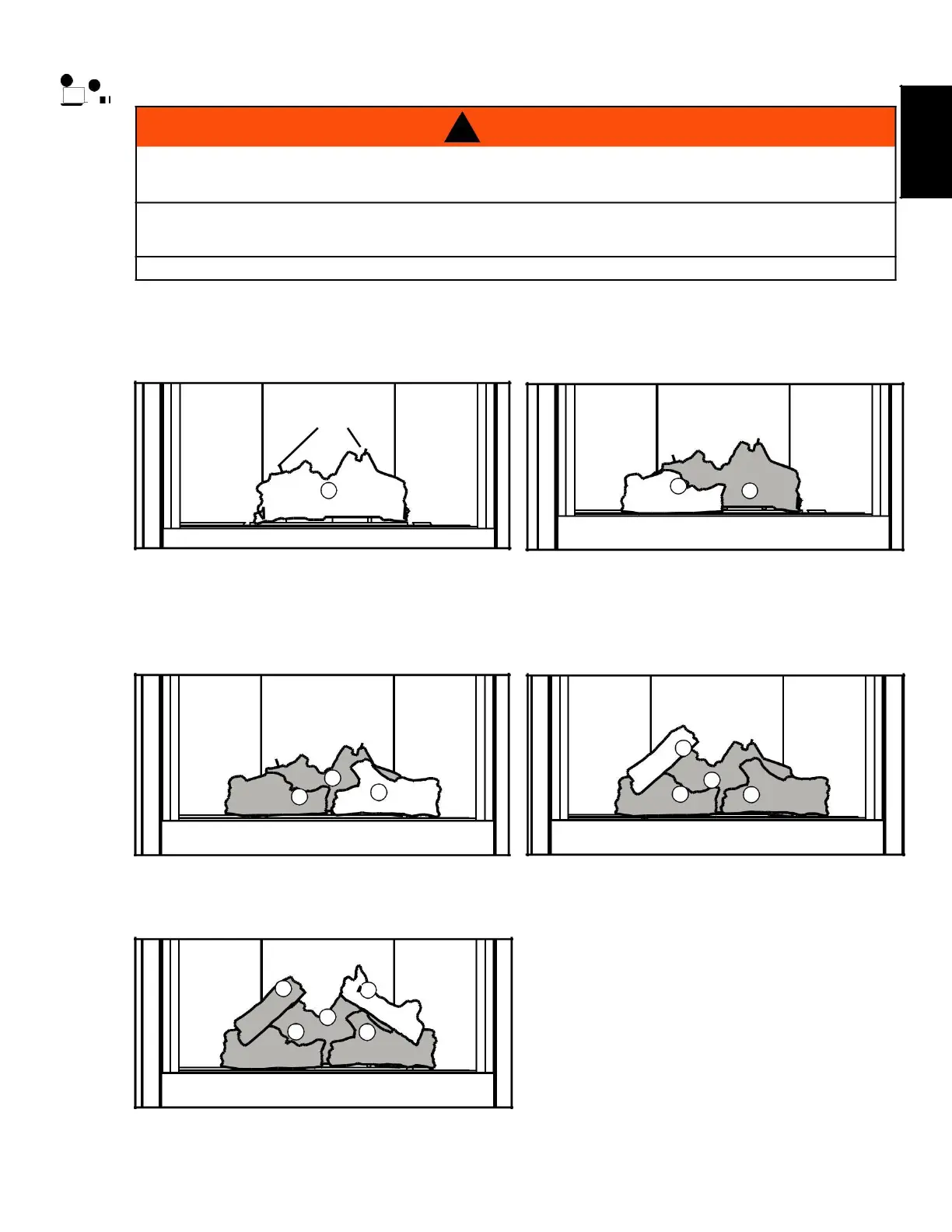

6.3 CB36 / CX36-1 log placement
47
! WARNING
EN
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
PHAZERTM logs and glowing embers, exclusive to Continental, provide a unique and realistic glowing effect
that is different in every installation. Take the time to carefully position the glowing embers for a maximum
glowing effect. Log colours may vary. During the initial use of the appliance, the colours will become more
uniform as colour pigments burn in during the heat-activated curing process.
PINS
A. Place the rear log (W135-0643) (A) firmly onto the B. Place the left front log (W135-0644) (B) onto the
2
2 studs at the rear of the support tray. Ensure the studs located on the left side of the log support.
log sits flat and does not cover the pilot opening.
Place 2 pins in the holes located on the top rear
of the rear log (A).
C. Position the right front log (W135-0645)
(C) onto the 2 studs located on the right
side of the log support.
D E
A
B C
E. Place the right crossover log (W135-0589)
(E) onto the pin located in the right side of
the rear log (A), allowing it to rest in the
notch of the right log (C).
D. Place the left crossover log (W135-0546) (D)
onto the pin located in the left side of the
rear log (A), allowing it to rest in the notch of
the left front log (B).
F. Install the glowing embers and charcoal
embers (see "glowing embers" and
"charcoal embers" sections).
G. Reinstall the door and safety barrier
(see "safety barrier & door
removal/installation" section).
W415-1679 / D / 03.09.18
