Continental Fireplaces CB36PTR - CX36-1 Overview

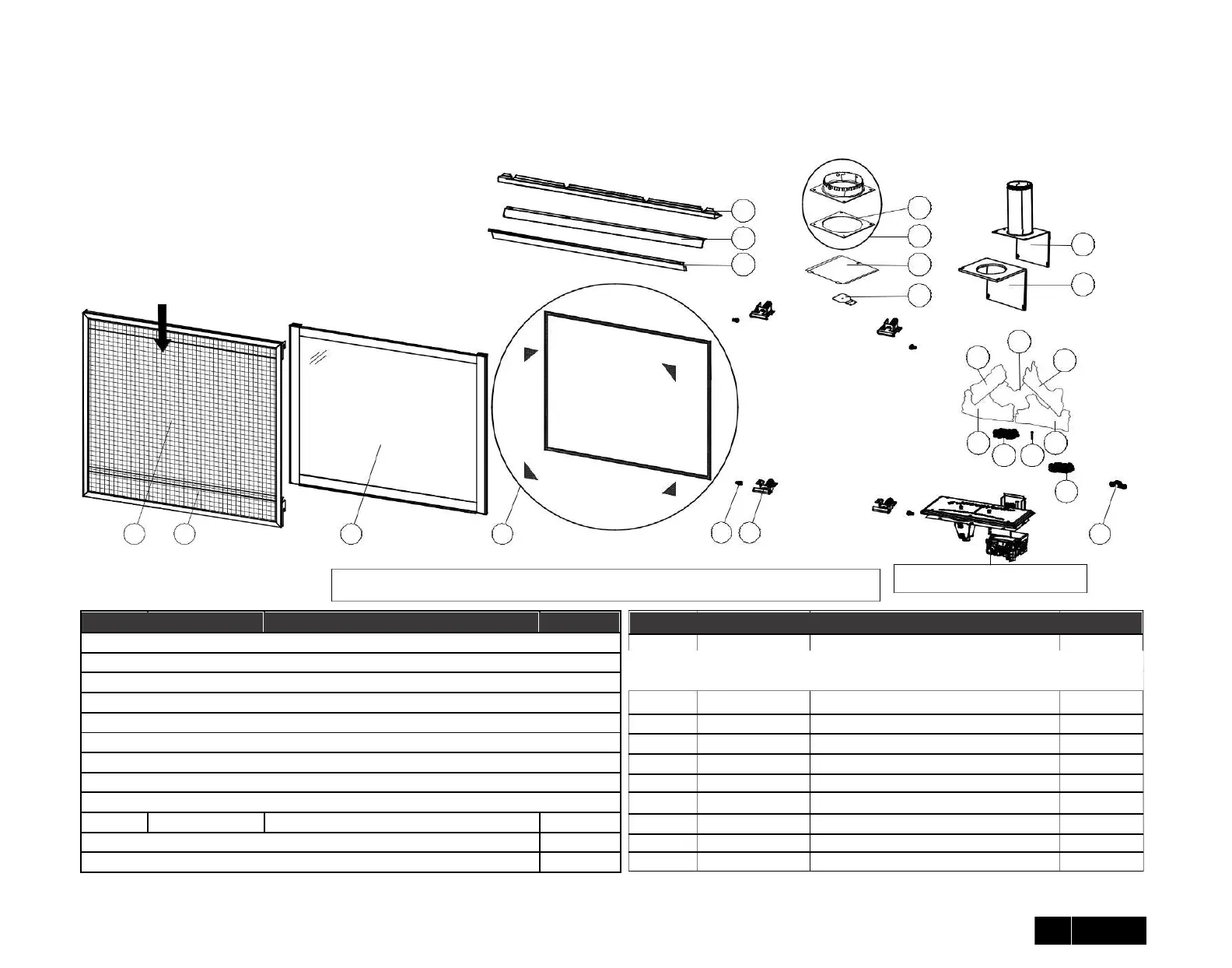

12.4 CX36-1 overview
17
10
1 8
11
14
1 9
12
Safety Barrier Assembly
13
15
17
16
18
19
20
21
22
GL-696
23
1
2
3
4
5
6
24
Items may not appear exactly as illustrated.
For replacement parts, refer to
“valve train assembly”
W415-1679 / D / 03.09
Ref. No.
Part Number
Description
Stocked
1
W565-0242-SER
Safety Screen
Yes
2
W010-4006-SER
Safety Barrier Assembly
Yes
3
W010-3402-SER
Complete Door Assembly
Yes
4
W562-0062
Door Gasket Assembly
Yes
5
W570-0135
Shoulder Screws
Yes
6
W010-3554
Door Latch
7
W715-1040-SER
Top Finishing Trim
8
W335-0063-SER
Hood
9
W018-0158-SER
Front Baffle
10
W290-0054
7” Flange Gasket
Yes
11
W010-3489-SER
7” Air Collar Assembly (C/W Gasket)
12
W500-0837
Vent Cover Plate
Ref. No.
Part Number
Description
Stocked
13
RP4
4” Restrictor Plate
Yes
14 W010-3490-SER Exhaust Collar Assembly
15 W290-0282Exhaust Bracket Gasket
16
W135-0546
Left Crossover Log (GL-696)
Yes
17
W135-0643
Rear Log (GL-696)
Yes
18
W135-0589
Right Crossover Log (GL-696)
Yes
19
W135-0644
Left Front Log (GL-696)
Yes
20
W135-0645
Right Front Log (GL-696)
Yes
21
W361-0016
Glowing Embers (GL-696)
Yes
22
W485-0042
Log Locating Pins (x2)
Yes
23
W485-0051
Charcoal Embers
Yes
24
W385-0430
Continental Logo
Yes
