Dinverter
A
User Guide
Issue code: d2au9
19
100mm
(4in)
Controller for the
Drives
Locate as required.
Signal cables
Plan for all signal
cables to be routed at
least 300mm (12in)
distant from any power
cable.
RFI filters
Install a separate RFI
filter for each Drive.
AC supply isolator,
contactor, and
fuses or MCBs
Locate as required.
Power cables
Enclosure
Drives and
RFI filters
Ensure minimum
clearances are
respected.
Back-plate
Unpainted (eg. zinc
plated steel)
100mm
(4in)
Alternative
location of
fuses or
MCBs
Locate as
required.
5mm
(¼in)
5mm
(¼in)
5mm
(¼in)

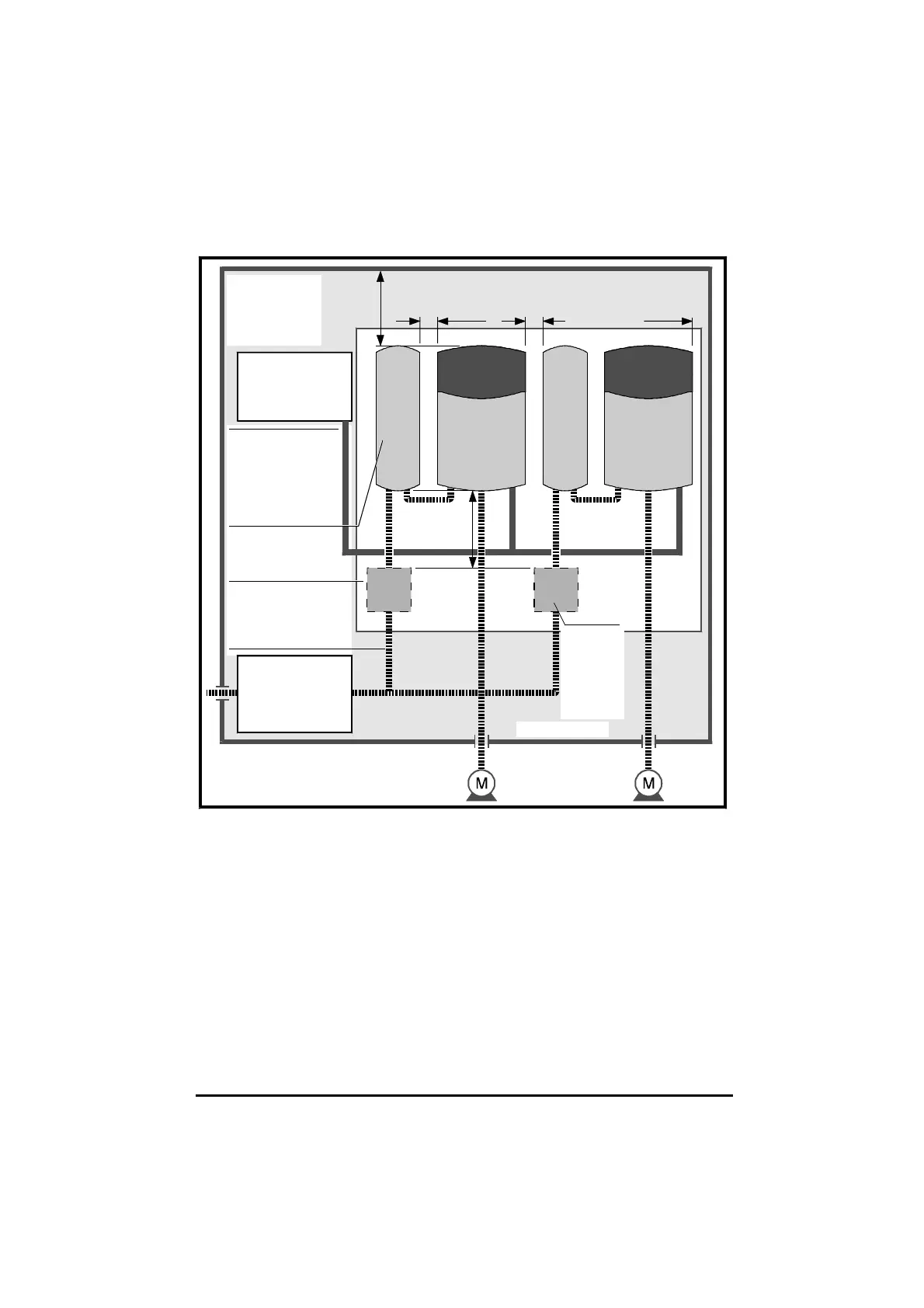

Figure 4–3 Recommended layout for compliance with EMC emissions
standards (wiring recommendations are given in Figure 4–8)
