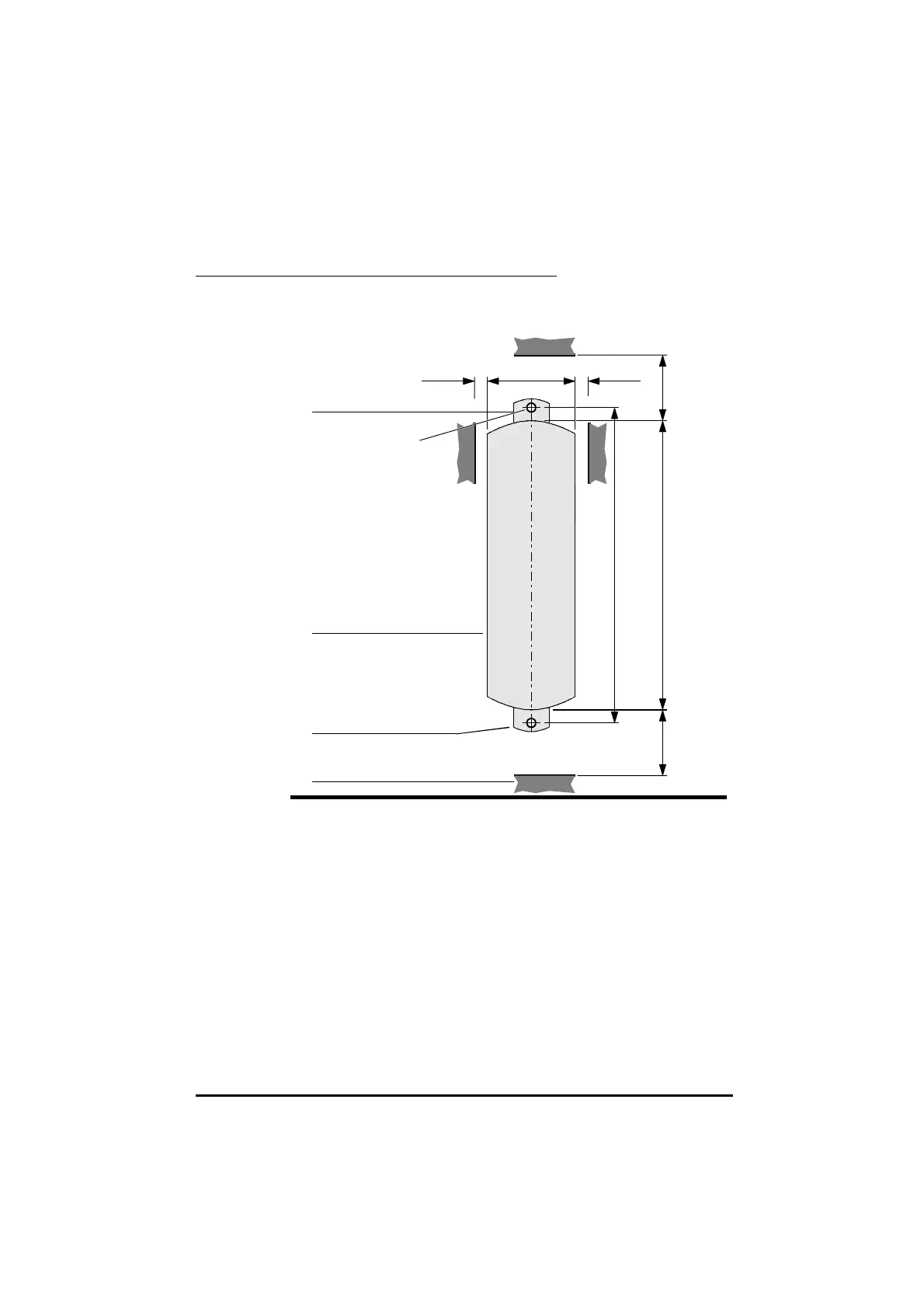

Surface-mounting the RFI filter
1 Allow clearances around the RFI filter. Make two threaded holes for
securing the RFI filter to the back-plate
Surface-mounting bracket
≥5mm
(¼ in)
≥5mm
(¼ in)
40mm (1 /
16 in)
≥100mm
(4 in)
≥100mm
(4 in)
140mm
(5½ in)
Area occupied
by the RFI filter
Surface-mounting bracket
Nearest objects
to the RFI filter
M5
( /
16 in)
9
152mm
(6 in)
3
M5
( /
16 in)
3
2 Fit both surface-mounting brackets to the rear panel of the RFI filter, in
the same manner as for the Drive.
3 Secure the surface-mounting brackets to the back-plate in the same
manner as for the Drive.
