Dinverter A User Guide
Issue code: d2au9
24

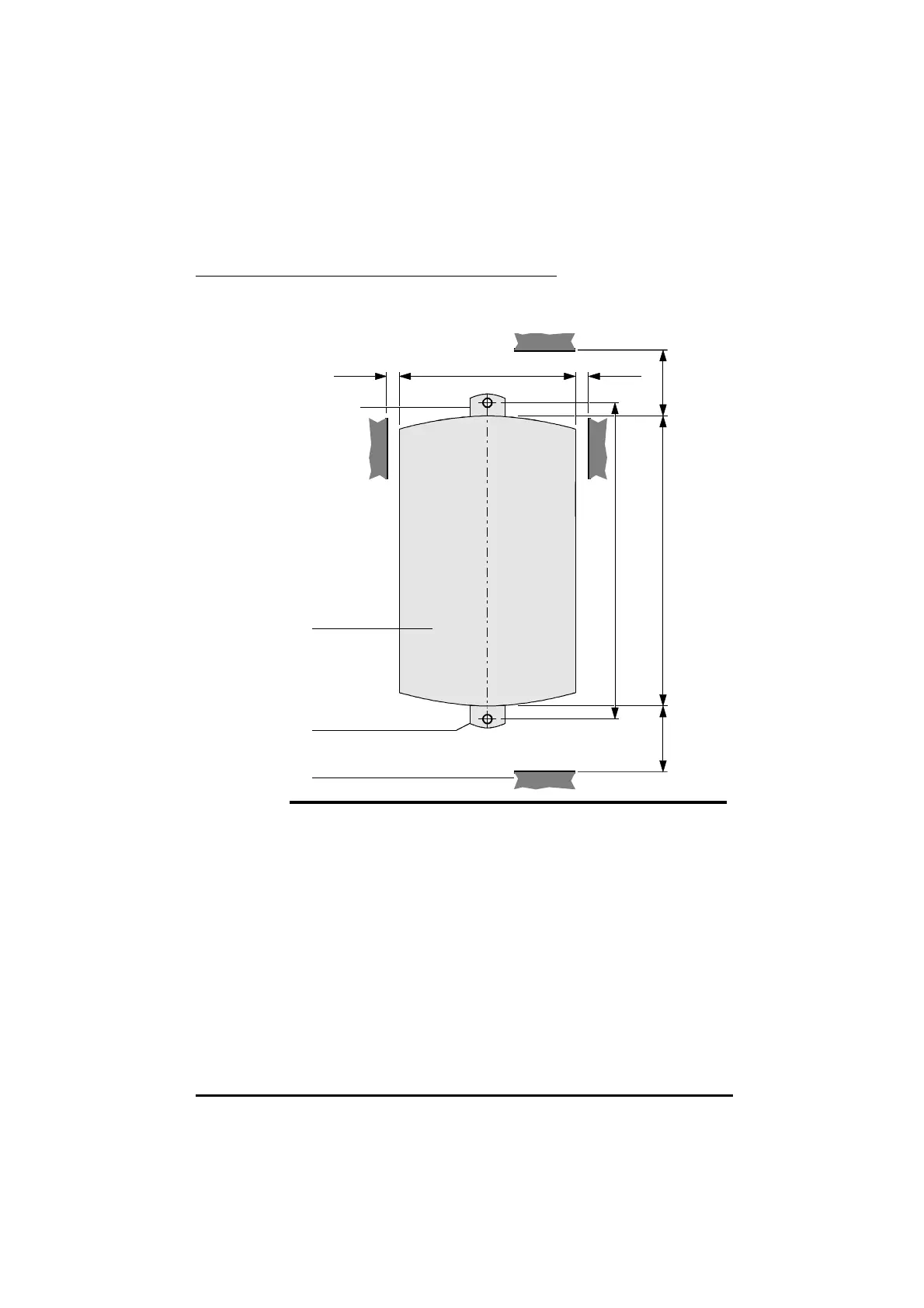

Surface-mounting the Drive
1 Allow clearances around the Drive. Make two threaded holes for
securing the Drive to the back-plate
≥5mm
(¼ in)
≥5mm
(¼ in)
75mm (3 in)
152mm
(6 in)
≥100mm
(4 in)
≥100mm
(4 in)
140mm
(5½ in)
Area occupied
by the Drive
Surface-mounting
bracket
Nearest objects
to the Drive
∅ M5
( /
16 in)
Surface-
mounting
bracket
3
∅ M5
( /
16 in)
3
