Dinverter
A
User Guide
Issue code: d2au9

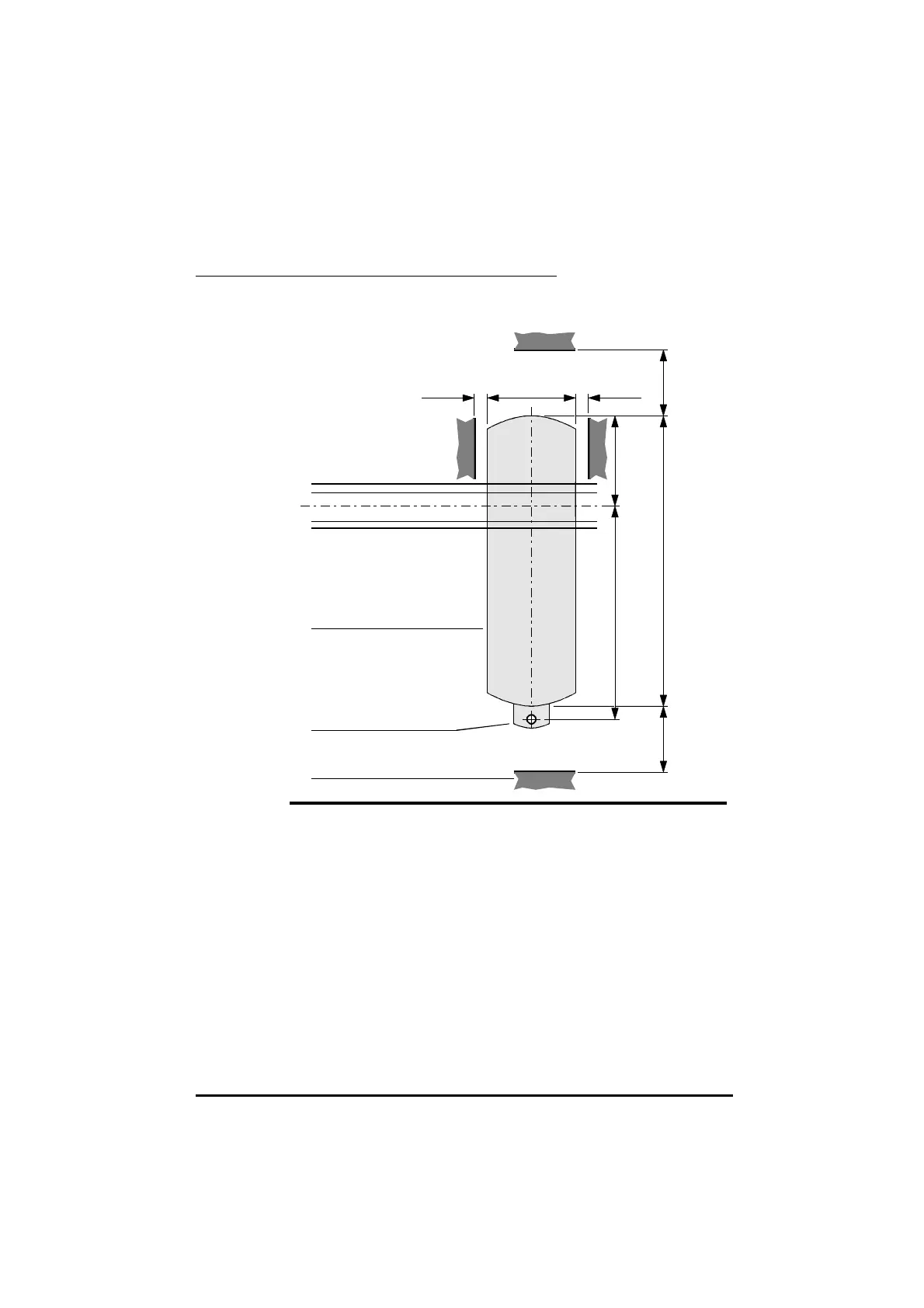

Mounting the RFI filter on a DIN-rail
1 Allow clearances around the RFI filter. Make a threaded hole for
securing the RFI filter to the back-plate
≥5mm
(¼ in)
≥5mm
(¼ in)
40mm (1 /
16 in)
36mm
(1 /
8 in)
108mm
(4¼ in)
≥100mm
(4 in)
≥100mm
(4 in)
140mm
(5½ in)
DIN-rail
Area occupied
by the RFI filter
Surface-mounting
bracket
Nearest objects
to the RFI filter
M5
( /
16 in)
9
3
3
2 Fit the DIN-rail bracket and a surface-mounting bracket to the rear
panel of the RFI filter, in the same manner as for the Drive.
3 Locate the RFI filter on the DIN-rail and secure the surface-mounting
bracket in the same manner as for the Drive.
