Dinverter
A
User Guide
Issue code: d2au9
18
≥
100mm
(4in)
Controller for the
Drives
Locate as required.
Signal cables
Plan for all signal
cables to be routed at
least 300mm (12in)
distant from any
power cable.
AC supply isolator,
contactor, and
fuses or MCBs
Locate as required.
Enclosure
Drives
Ensure minimum
clearances are
respected.
Back-plate
≥5mm
(¼in)
≥100mm
(4in)
Alternative
location of
fuses or
MCBs
Locate as
required.
≥5mm
(¼in)
Power cables

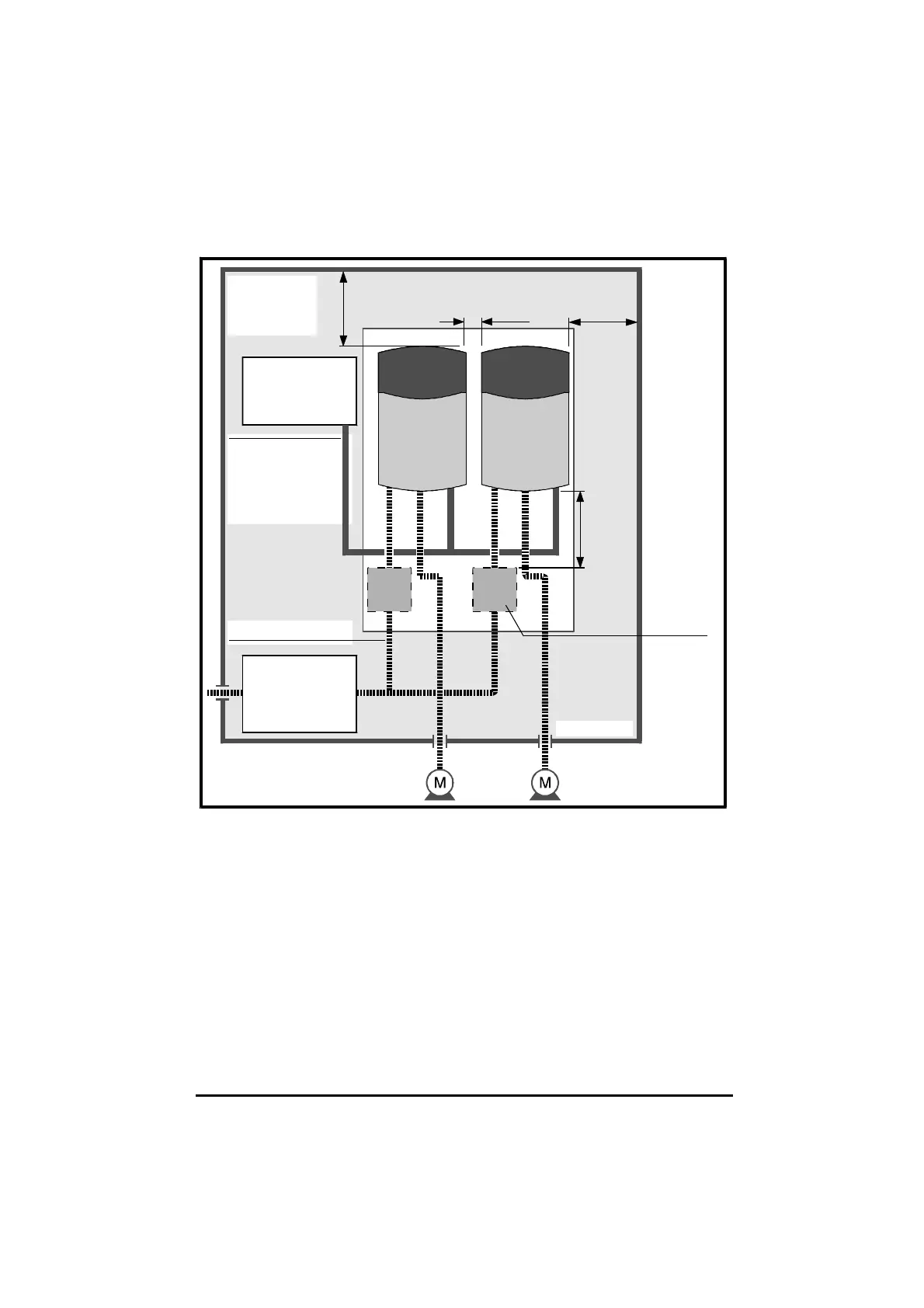

Figure 4–2 Recommended layout for routine EMC precautions
(wiring recommendations are given in Figure 4–7)
