CPS ECB200KTL/US-800 - Nameplate

Overview
10 / 135
Main components on the inverter enclosure:
No.
Name
Function
1
LINKIT module interface
Connect LINKIT module
2
Cover of communication
interface
Seal the communication interface
3
DC connector
Connect DC cable
4
DC Switch
Turn on/off the DC side power supply
5
LED indicator
Indicates operation status of the PCS
6
AC connector
Connect AC cable
7
AC PE terminal
Connect AC PE (protection earthing)
cable
8
DC PE Terminal
Connect DC PE cable
9
Fans
Forced cooling of the PCS
Table 2-1 Product Components
2.3 Nameplate
Serial Number
This device complies
with part 15 of the
FCC Rules
Model No.: CPS ECB200KTL/US-800
Discharge Mode
Input operating voltage range: 875-1500Vdc
Max. input current(dc): 218A
Max. continuous output current(ac): 145A
Max. continuous output power: 200kVA
Nominal AC output voltage: 800Vac 3~
Nominal power frequency: 60Hz/57-63Hz
AC current THD: <3%
Power factor: >0.99(adj.±0.8)
Max. efficiency: 98.0%
CEC efficiency: 97.0%
Standalone output voltage: 704-880Vac
Operating temperature range: -30°C-+60°C
Protective class: Class
Type of enclosure: TYPE 4X
Made in xxxx
Energy Storage Inverter
(Grid Support Non-Isolated)
Serial Number
This device complies
with part 15 of the
FCC Rules
RoHS
UL 1741
Cert.to CSA Std.C22.2 No.107.1
Charge Mode
Input operating voltage range: 704-880Vac
Nominal output voltage: 1085V
Max. input current(ac): 145A
Charging output voltage range(dc): 875-1500Vdc

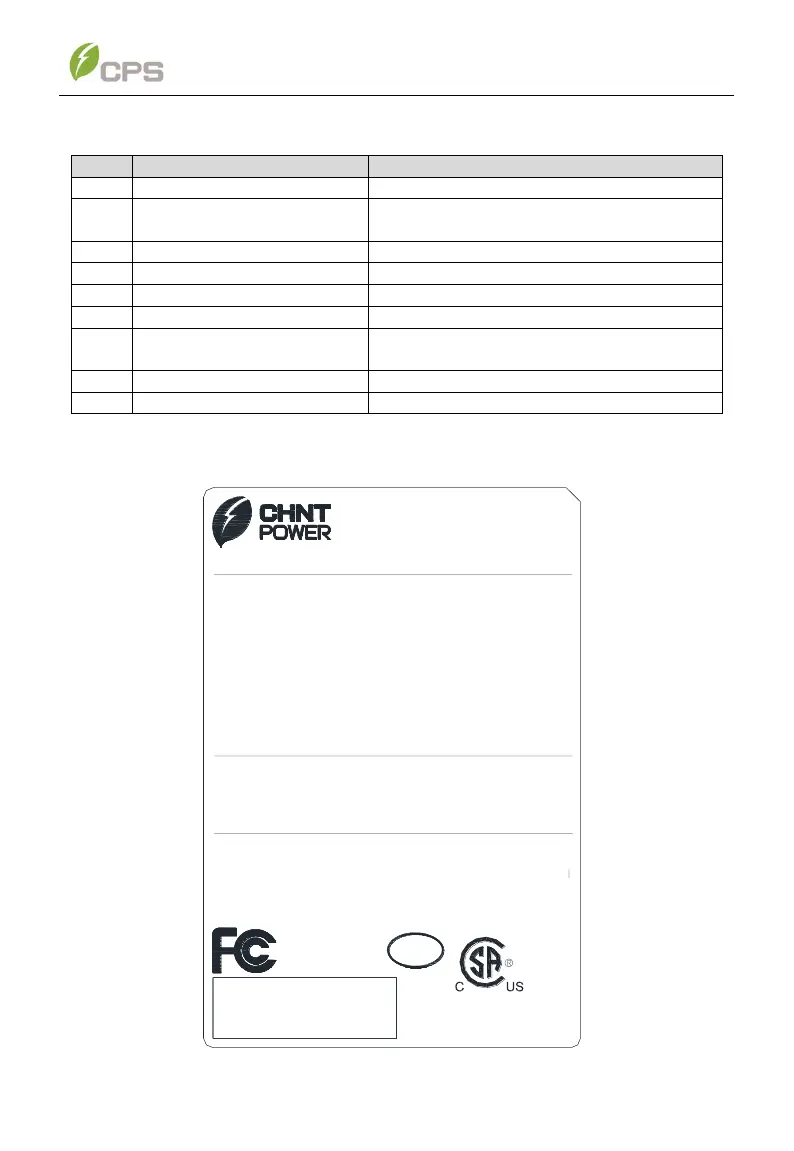

Figure 2-4 Nameplate of CPS ECB200KTL/US-800
