Electrical Installation
32 / 135
4.7 Connect PCS with a CPS FlexOM Gateway
The PCS allows remote communications and firmware upgrades using the CPS
FlexOM Gateway (purchased separately). You can connect FlexOM and refresh the
register parameters as described below.
1. Connect key interfaces on the FlexOM as below.

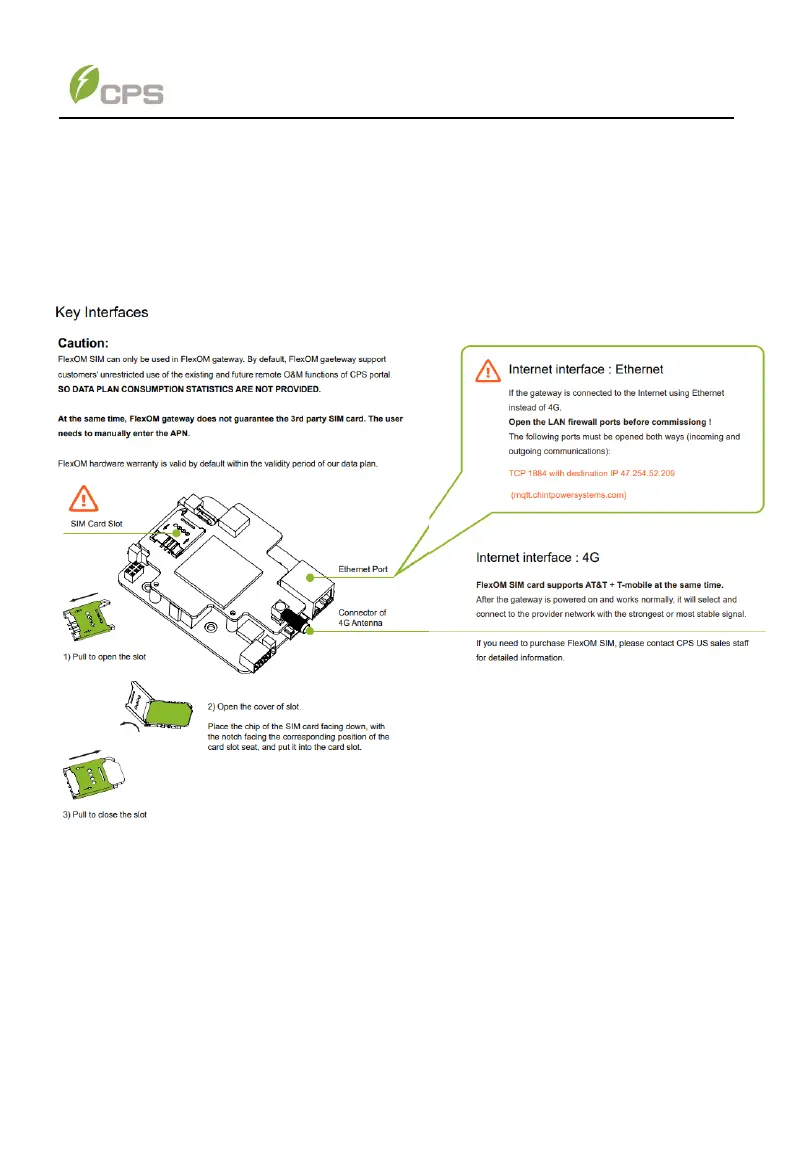

Figure 4-14 key interfaces on the FlexOM
Note:
FlexOM is composed of lower board FG4C and upper board FGM-4G. After removing
the upper board, you can see the lower board FG4C, which is mainly composed of
the following parts, and the interface B will connect to the PCS, module socket acts
as the communication bridge of this main board and its upper board, as shown below.
