6.2.3 Main menus of APP page
6.2.3.1 Home page

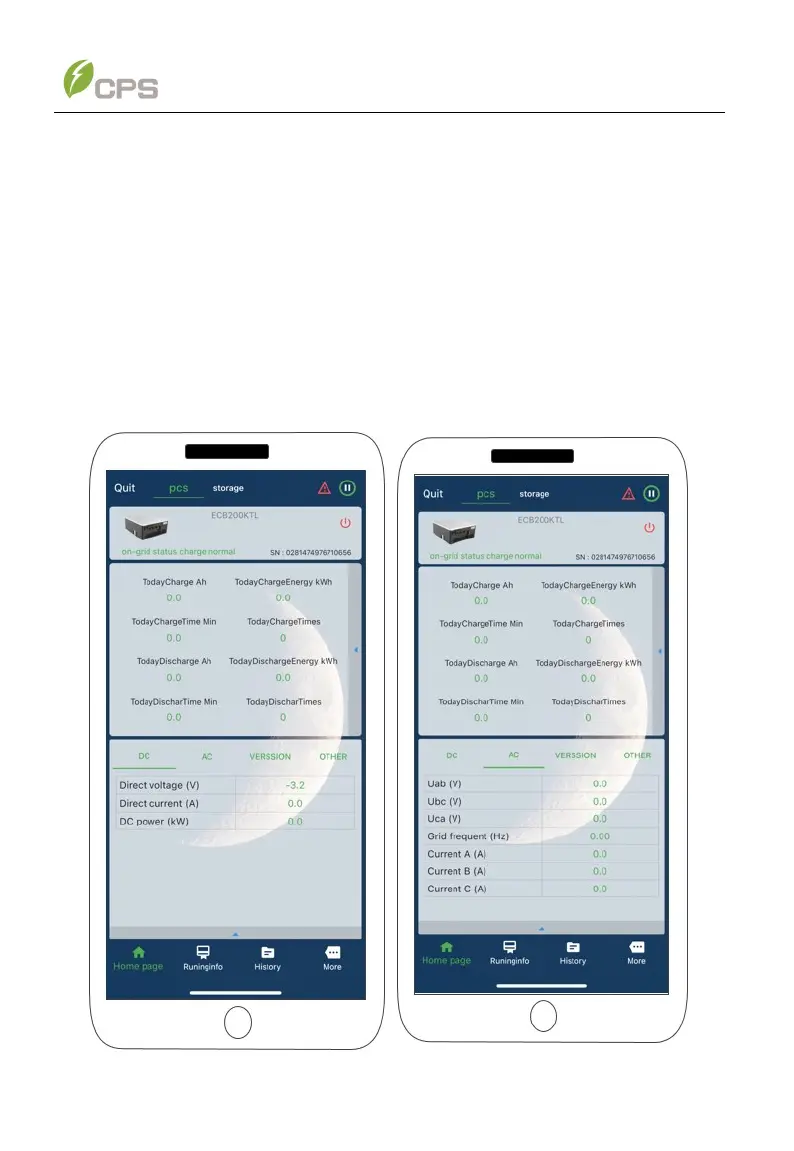

The Home page displays the real-time PCS data that includes the charge and
discharge information of the PCS, DC side information, AC side information, version
information and other important data. PCS working status display, software version
information display, SN display, direct voltage, line voltage, phase current, module
temperature, battery stack voltage, battery stack current, etc. See Figure 6-6 for
details.
