User Interface
94 / 135
6.3.3 Main menus of web page
6.3.3.1 Home

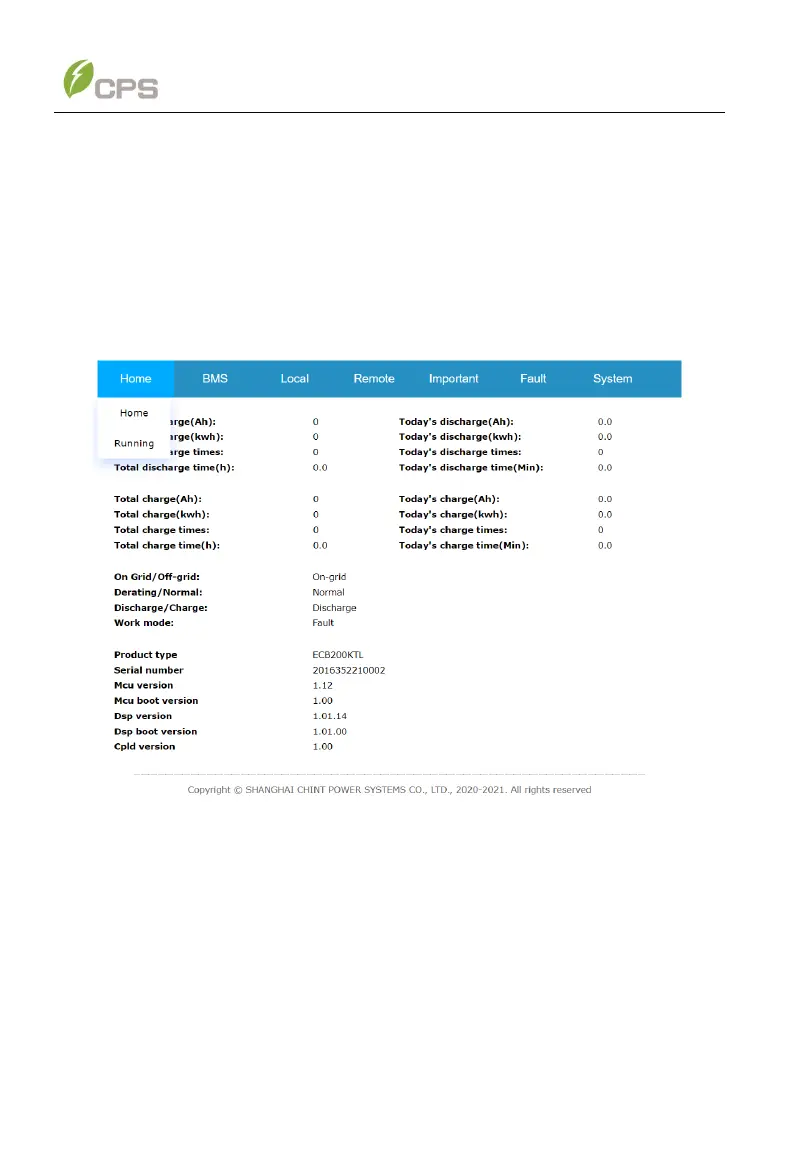

The Home main menu contains two sub-menus: Home and Running. Choose the
Home Sub-menu from the above-mentioned drop-down menu, you can find lots of
important information shown below, such as the Total discharge (Ah), On Grid/Off-
grid, Derating/Normal, Mcu version etc. as shown in Figure 6-38 below.
Figure 6-38 Home Sub-menu
The Running Sub-menu displays Uab(V) , Ia(A) , FreqR(Hz) , TModule(C), etc. See
Figure 6-39 below for details.
