3.4 Installation process
3.4.1 Prepare the mounting bracket
To illustrate mounting steps, the mounting bracket shown in figure 3-4 will be used as
an example.

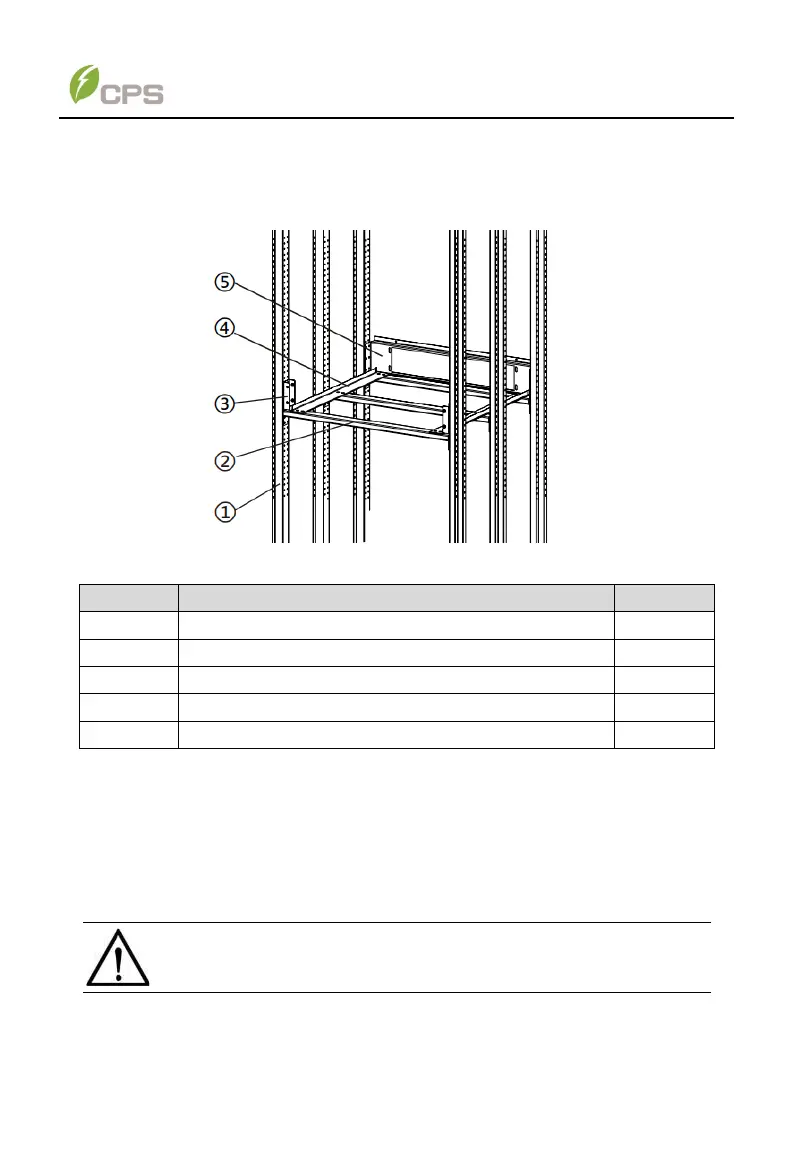

Figure 3-4 Reference mounting bracket assembly
No.
Component name
Qty
1
Vertical beam
6
2
Horizontal beam
3
3
Front mounting bracket
2
4
Rail bracket
2
5
Back plate
1
Table 3-3 Accessories of the reference mounting bracket
The assemble procedures of reference mounting brackets are as follow:
1. Assemble three horizontal beams (2) on the three groups of vertical beams
(1) in sequence and pre-tighten them with four M6x16 screws on every end
of the horizontal beam.
2. Position two rail brackets (4) onto the two ends of the three horizontal
beams (1), align their screw holes and pre-tighten them with six sunk
screws.
NOTICE:
The side guards of the two rail brackets shall be facing outside.
