Mechanical Installation
17 / 135
3. Pre-tighten the two endplates of the back plates onto the rear vertical
beams with six M6x16 screws on each endplate. The hole dimensions of
the back plate can be found in figure 3-5.

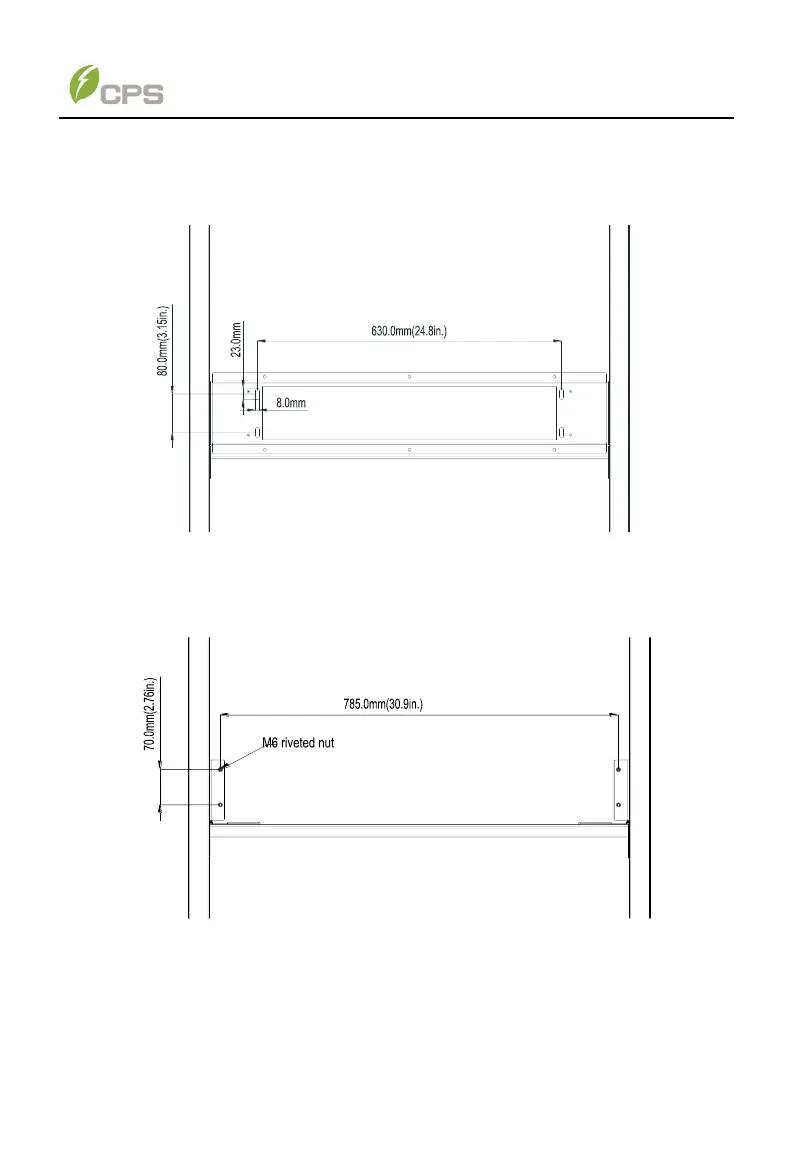

Figure 3-5 Hole dimensions of the back plate
4. Pre-tighten the two endplates of the back plates onto the rear vertical
beams with six M6x16 screws on each endplate. The hole dimensions of
the two front mounting brackets can be found in figure 3-6.
Figure 3-6 Hole dimensions of the front mounting brackets
5. Tighten all the screws with No.3 Phillips head screwdriver, torque value:
6-7 Nm (4.4-5.2 lb-ft).
