Mechanical Installation
15 / 135

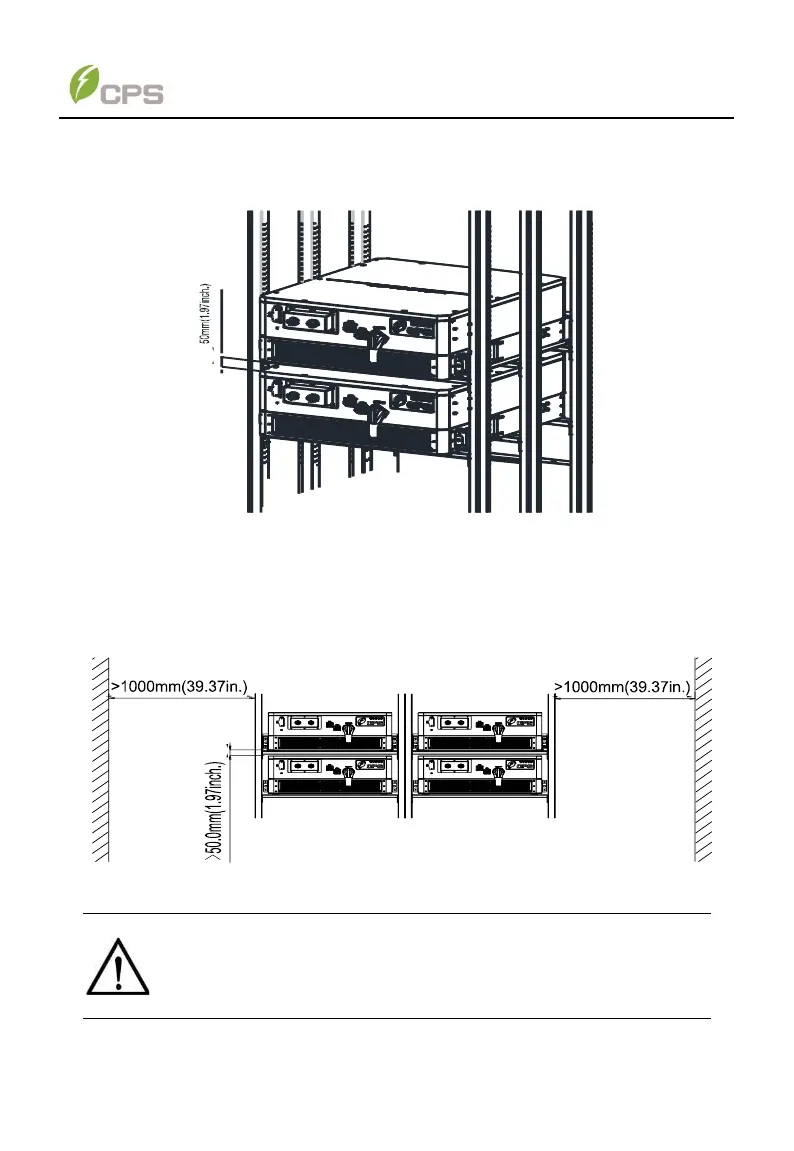

Install several PCSs by stacking on one mounting bracket (the bracket is not
included in the package and the diagram is for illustration purposes).
In addition to all the above distance requirements, a minimum distance of
50mm shall be kept between two adjacent PCSs to ensure good ventilation.
Figure 3-2 Stack installation on one mounting bracket
Position two sets of mounting brackets with stacked PCSs side by side.
In this scenario, a minimum distance of 1000 mm (39.37 in.) shall be reserved
on both sides of the mounting brackets so that the fan brackets can be pulled
out from their left side or the right side completely without any obstruction. In
the same way, a minimum distance of 50 mm shall be kept between two
adjacent stacked PCSs to ensure good ventilation.
Figure 3-3 Two sets of mounting brackets with stacked PCSs
NOTICE:
The Weight of one PCS is about 120kg (≈265 pounds).
Make sure mounting brackets can bear the total weight of all stacked
PCSs to avoid bracket damages and PCS falling off!
Consult the after-sale personnel for any special scenarios.
