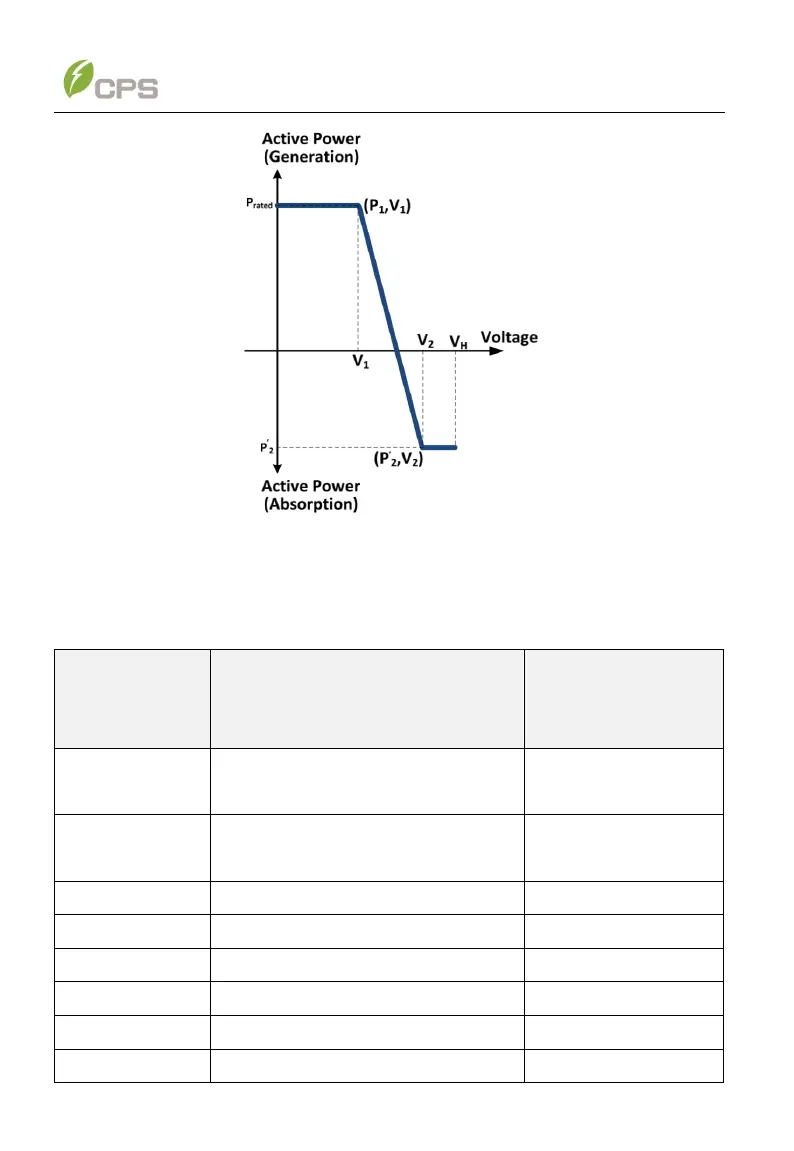

Figure 6-24 Voltage-Actve Power curve
Refer to table 6-9 below for information about the parameter description, setup range,
lower limit, default and upper limit of these parameters.
Table 6-9 Voltage-Power Parameters
Parameter name
Description
Setup range (lower limit,
default, upper limit)
IEEE1547-2018
OvVWEnable
Overvoltage drop Active power
enable/disable
{Enable}
UnVWEnable
Undervoltage rise Active power
enable/disable
{Disable}
OvVWVolt1
Overvoltage derating starting voltage
{100.0%,106.0%,110.0%}
OvVWVolt2
Overvoltage derating stop voltage
{100.0%,110.0%,110.0%}
OvVWPower2
Overvoltage derating stop power
{-100.0%,0.0%,100.0%}
UnVWVolt1
Undervoltage derating starting voltage
{90.0%,94.0%,100.0%}
UnVWVolt2
Undervoltage derating stop voltage
{90.0%,90.0%,100.0%}
UnVWPower2
Undervoltage derating stop power
{-100.0%,0.0%,100.0%}
