User Interface
96 / 135
6.3.3.3 Local
The Local main menu contains nine Sub-menus: GridVol, GridFreq, Start/Vrt,
Dispatch, Command, PFP/QU, FW/VW, Battery, Others as shown in Figure 6-41
below.

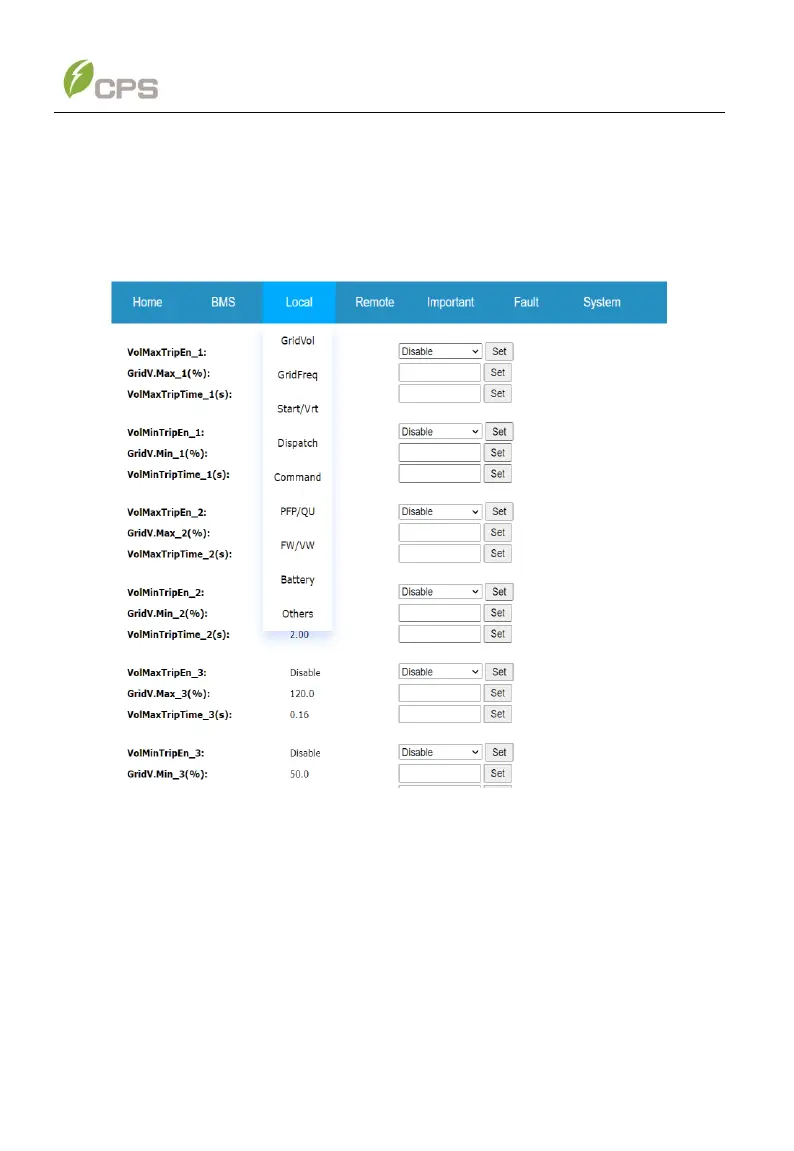

Figure 6-41 Local menu
For GridVol, GridFreq, Start/Vrt, Dispatch, Command, Battery, Others sub-menus,
customers can choose any options from the drop-down list and click right-hand Set
button to modify the parameters as required on site; while PFP/QU and FW/VW Sub-
menus shall be modified only by qualified engineers who are thoroughly familiar with
the system and the relevant parameters with caution. See figures below for details.
