145
20%
40%
60%
80%
100%
Po/Pn
0.88*Un Un U
1
U
2
U
H
Grid Voltage (Vac)
volt-watt function enable
P1
P2
100.0%~110.0% Settable

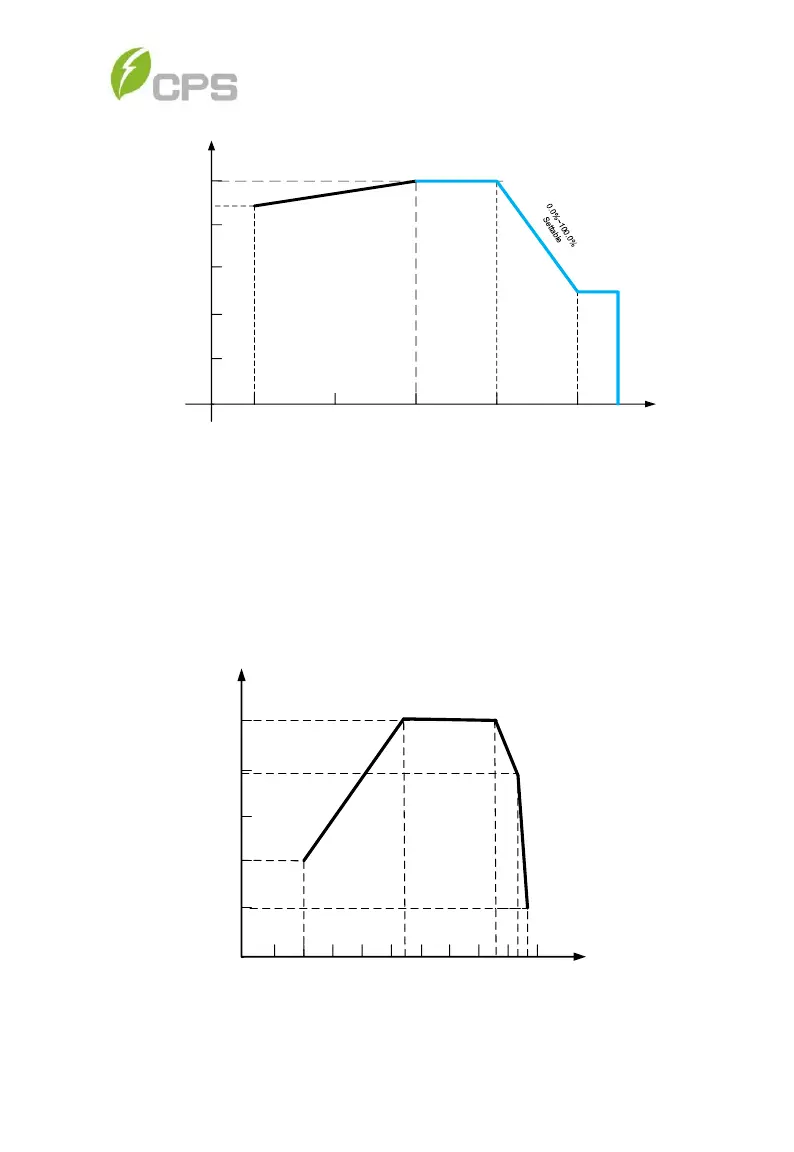

Figure 10-3-2 SCA36/50/60KTL Derating Curve of Grid Voltage
10.3.4 PV Voltage Derating Graph
For CPS SCA50/60KTL-DO/US-480, when the DC input voltage is
lower than 480/540V or higher than 850V, the inverter output power
(Pn) will begin to derate, as shown in Figure 10-4 and 10-5:
19%
41.5%
60%
80%
100%
PV Voltage (V)
Pino/Pinn
100 200 300 400 500 600 700 800 900 1000
0
79%
540 850 920 950
Figure 10-4 CPS SCA60KTL derating curve of PV input voltage
