CPS SCA36KTL-DO/US-480 - AC Connections

54
NOTICE:
Terminate the Ground cable prior to terminating the AC cables.
3.3.4.2 AC Connections
This section includes instructions to connect the AC conductors to the
inverter and grounding options.
Table 3-10 Tools Required for Cable Termination
No.
Tools
Remark
1
5mm flat screwdriver
Internal grounding bar
2
#3 Phillips head screwdriver
External grounding
3
14mm hex socket wrench
AC terminal block
4
Diagonal pliers or cable cutters
Cut cable
5
Wire stripping pliers
Remove jacket
6
Crimping pliers/tool
Crimp terminal
1. Using the 1-1/2 inch knockouts. Remove the liquid-tight hole plug
from the right side or bottom of the AC input portion of the wiring
box to install 1-1/2 inch Trade Size conduit and conduit fittings into
the hole. Then route the cables through the conduit inside the wiring
box.

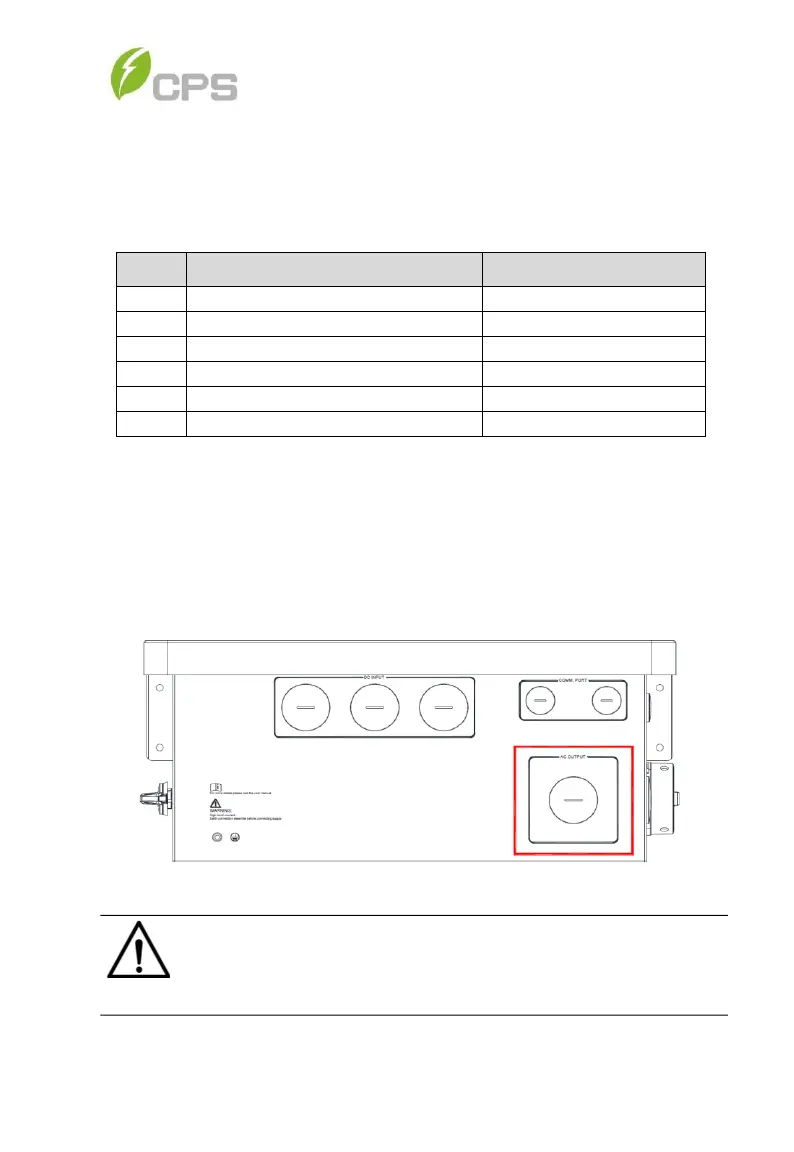

Figure 3-27 AC Input Connection
