3.4.1 Description of the Communication Board
① RS485 P8 (Debug
only)
1. 12V+
2. 12VGND
3. RS485+
4. RS485-
5. COM
② RS485 P7
(Communication Input)
1. 12V+
2. 12VGND
3. RS485+
4. RS485-
5. COM
③ RS485 P9
(Communication Output)
1. RS485+
2. RS485-
3. COM
④ USB Port P6:
Firmware upgrade
⑤ Selector Switch (S1):
120Ω terminal resistor
switch for communications.
1. ON: Enable termination
resistance
2. OFF: Disable
termination resistance

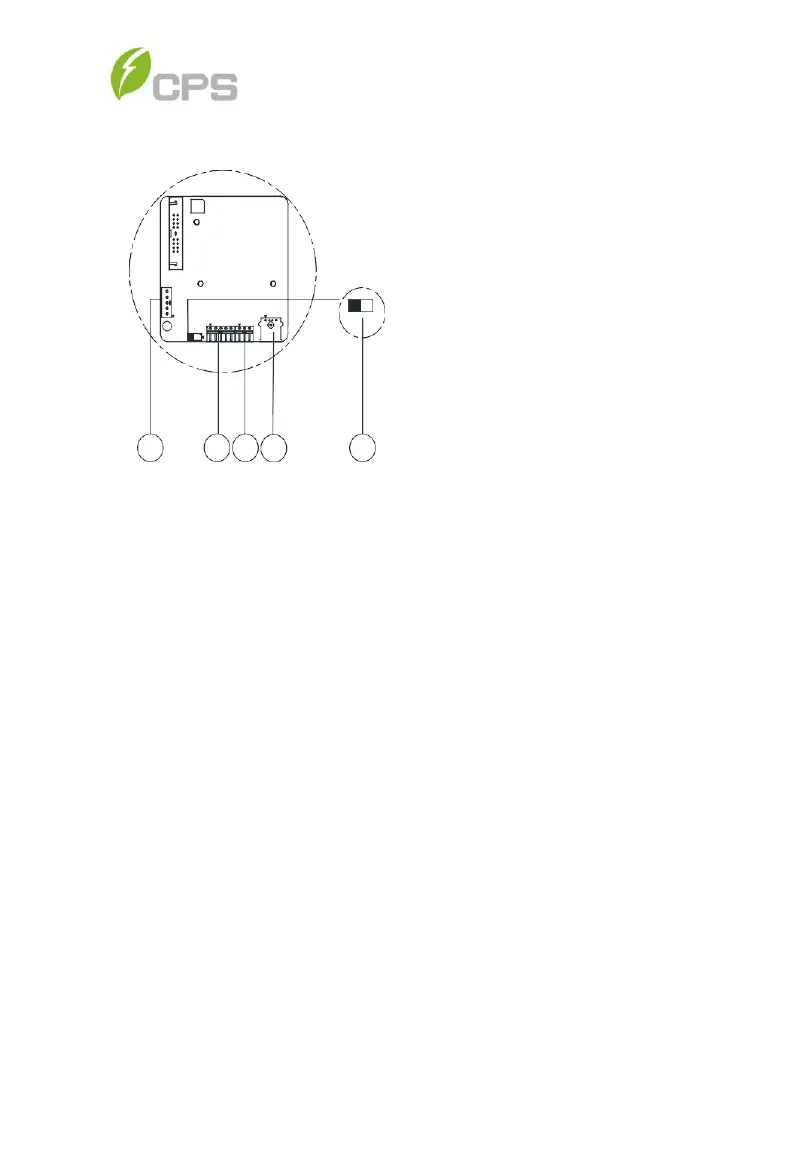

Figure 3-32 Communication Connection Interfaces
3.4.2 RS485 Communication
CPS recommends the following cable for inverter RS485 communications:
CAT-5e or (3) 18-22AWG communication cables.
It is recommended that industrial grade shielded twisted pair RS485 cable
be used in lieu of unshielded twisted pair. Communication cable such as
(CAT5e) or Belden 3106A cable for RS485 5 pin connector is preferred.
