2.5 Appearance and Main Item Description

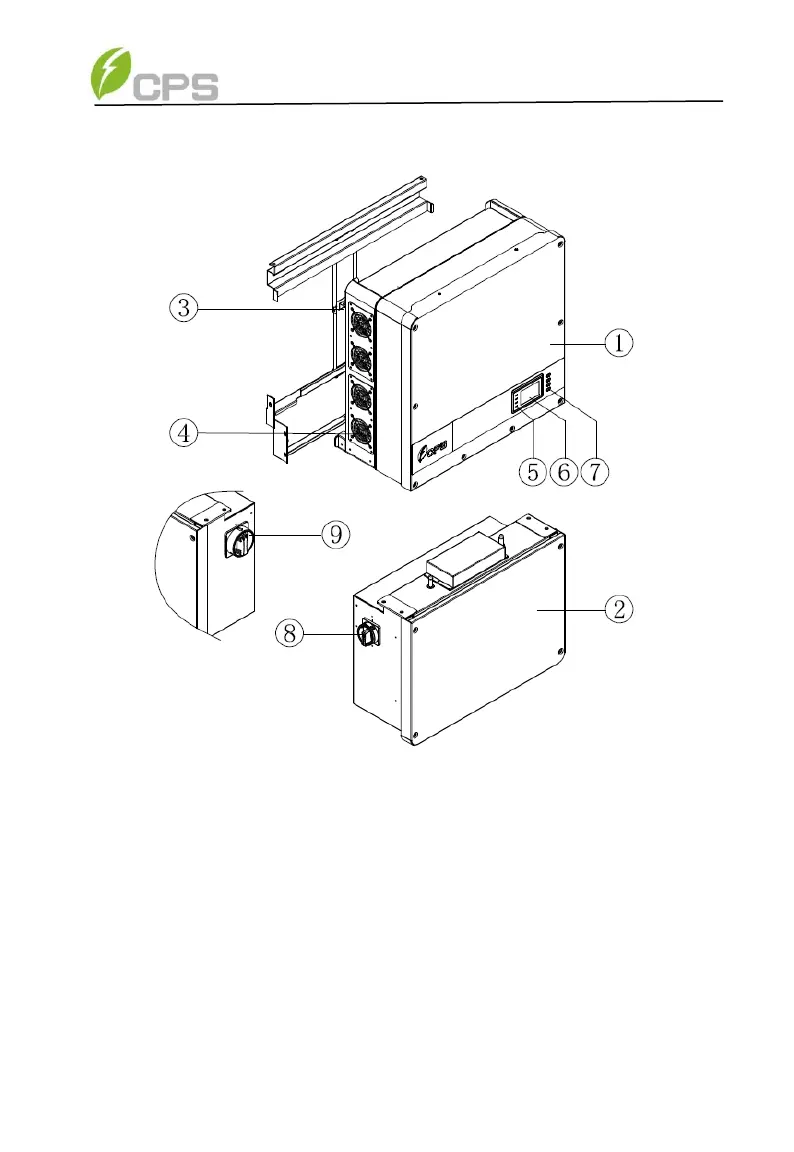

Figure 2-2 Diagram of the Inverter Assembly
Main Items of the Inverter:
① Main inverter enclosure
② Inverter wirebox
③ Inverter mounting bracket
④ Cooling fans
⑤ LED indicator lights
⑥ User LCD display
⑦ User Key buttons
⑧ DC switch: DC power on/off
⑨ AC switch: AC power on/off
