CPS SCA36KTL-DO/US-480 - Reactive Power Capability

147
10.3.5 Reactive Power Capability
The Reactive Power Overload function is disabled by factory default (Max.
AC Apparent Power is 50/60kVA and Max. AC Output Current is
60.2A/72.2A). Contact CPS Customer Service if you want to enable the
function.

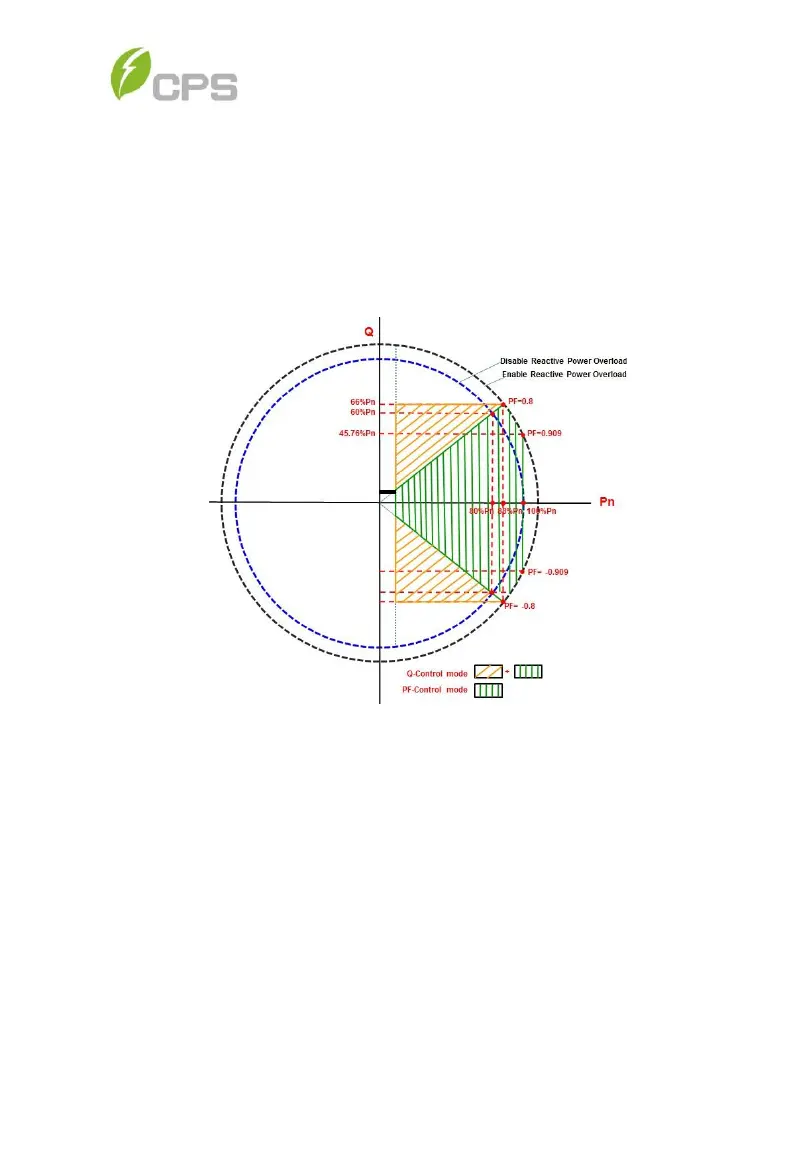

Figure 10-7 SCA50/60KTL Reactive Power Capability
